Configuration Guide 5. DHCP

5.5 Example of DHCP Relay

This example configures the MSBR to accept DHCP packets from the configured IP

address, which will act as a DHCP relay.

MSBR# configure data

MSBR(conf-data)# ip dhcp-server 100.100.100.100 gigabitEthernet

0/0

5.6 Example of DHCP Server with Zones

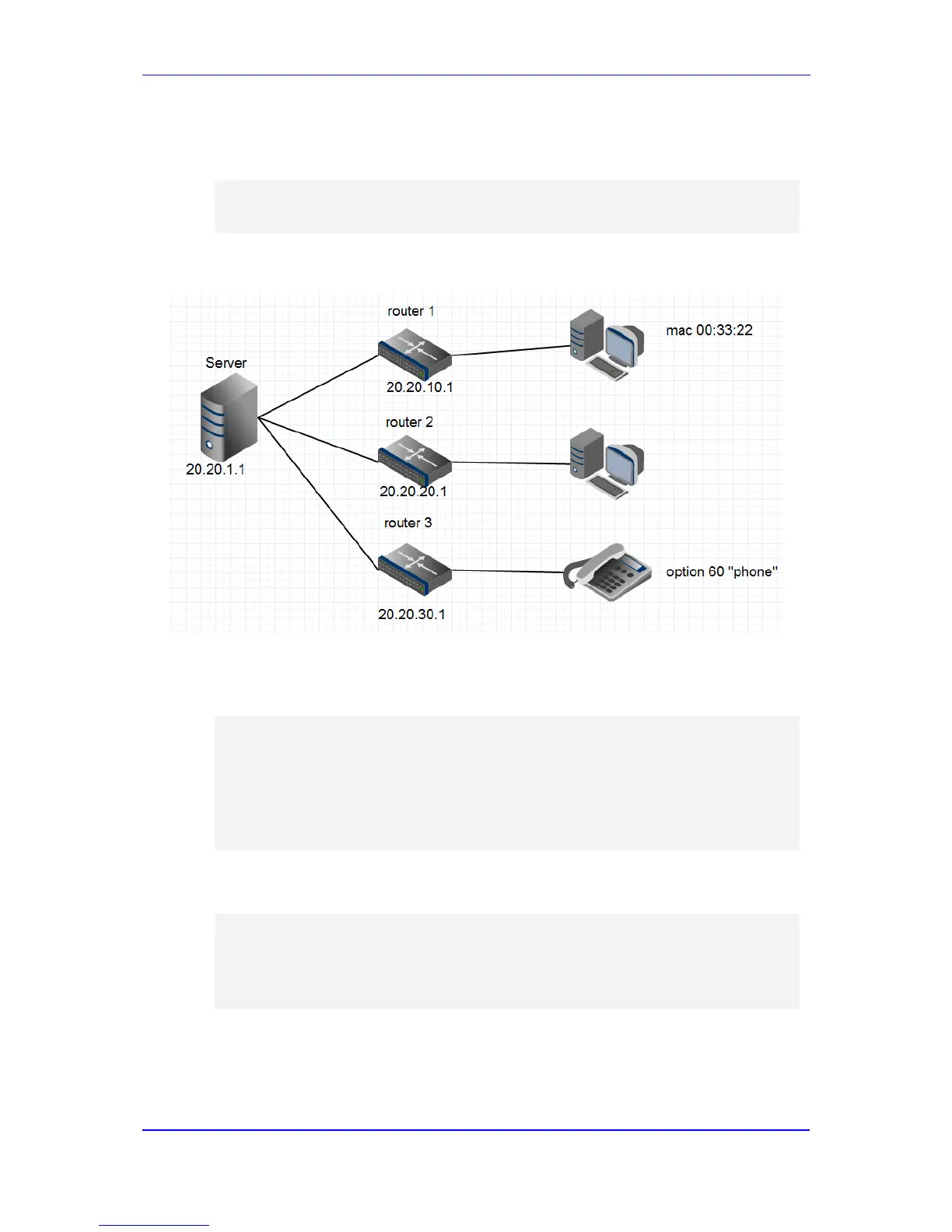

In this example, the server is connected to three subnets via relay agents. For every

subnet, a zone is configured, in addition to a default zone.

Configure the first zone, which accepts packets with source mac addresses beginning with

00:33:22:

MSBR# configure data

(config-data)# interface VLAN 1

(config-if-VLAN-1)# ip dhcp-server zone z1

(conf-zone z1)# selector mac prefix 00:33:22

(conf-zone z1)#network 20.20.10.5 20.20.10.200 255.255.255.0

(conf-zone z1)#lease 0 1 0

(conf-zone z1)#exit

Configure the second zone, which accepts packets arriving via relay agents whose

addresses are in the 20.20.20.1-20.20.20.4 range:

(config-if-VLAN-1)# ip dhcp-server zone z2

(conf-zone z2)# selector relay 20.20.20.1 20.20.20.4

(conf-zone z2)#network 20.20.20.5 20.20.20.200 255.255.255.0

(conf-zone z2)#lease 0 1 0

(conf-zone z2)#exit
