AudioCodes Mediant MSBR Series Configuration Guide

Version 6.8 97 Mediant MSBR
Configuration Guide 16. Quality of Service (QoS)
16.1.2 Example of Weighted Bandwidth Sharing
This example includes a branch office with several network segments: VoIP, IP and Users,
connected to VLANS 1, 2, and 3, respectively. The WAN interface bandwidth needs to be
shared according to the network administrator’s design and functional requirements, which
in this example, is 40% for VoIP, 40% for IT, and 20% for Users.

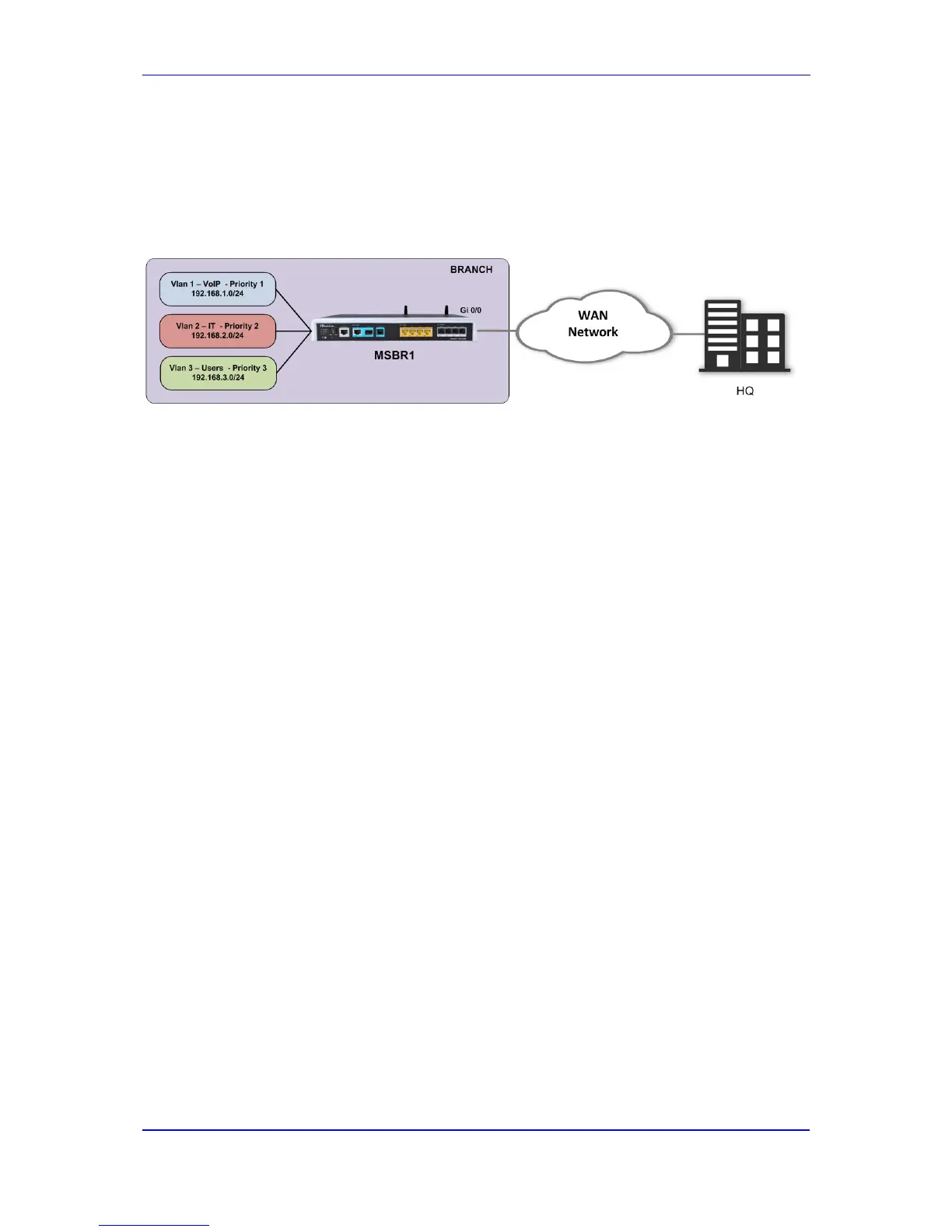

Figure 16-2: Weighted QOS Handling
