Hardware Installation Manual 3. Physical Description
3 Physical Description
This section provides a physical description of the device.
3.1 Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the table below:
Table 3-1: Physical Dimensions and Operating Environment
Physical Specification Description
Dimensions (H x W x D)
3U high, 19-inch rack wide
132.5 x 438 x 482.5 mm (5.22 x 17.24 x 19 inches)
Weight
21 kg (46.3 lbs.) for fully-populated chassis
Environmental
 Operational: 0 to 40°C (41 to 104°F)
 Storage: -40 to 70°C (-40 to 158°F)
 Humidity: 5 to 90% non-condensing
 Over-voltage protection and surge immunity: ITU-T K.21
(basic) compliant.
Note: Routing of FXS telephony cables outdoors can only
be done in conjunction with AudioCodes-approved
primary surge protector and proper installation and
grounding.
3.2 Front Panel Description

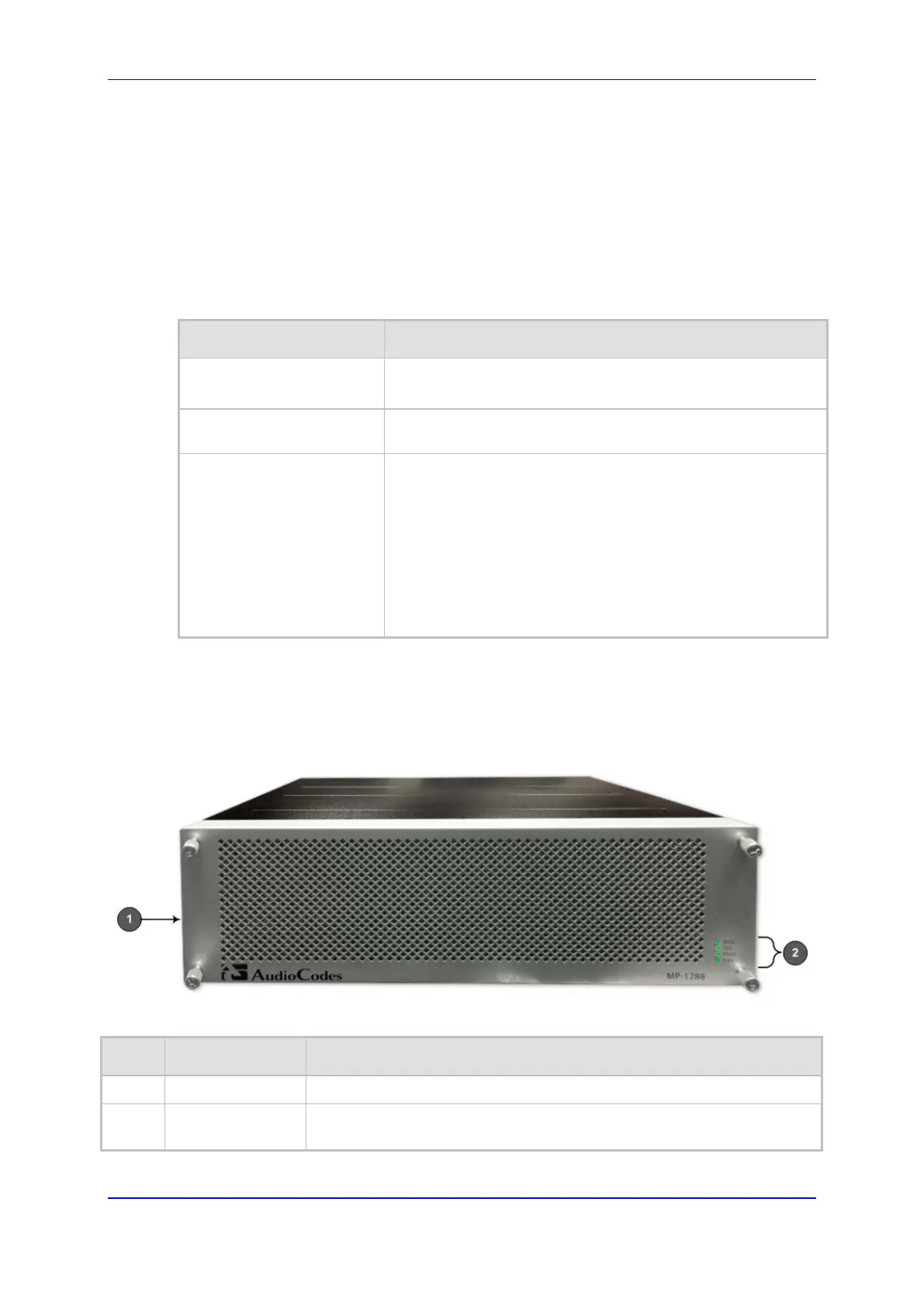

The device's front panel is shown in the figure below and described in the subsequent
table.
Figure 3-1: Front Panel
Table 3-2: Front Panel Description
Item # Label Description
1
-
Fan Tray cover. For more information, see Section 3.2.2 on page 18.
2 SYS / TEL / PWR
/ FAN
Front-panel LEDs. For more information, see Section 3.2.1 on page 16.

AudioCodes MediaPack Series Specifications

General

Series	MediaPack
Category	Gateway
Humidity	10% to 90% non-condensing
VoIP Protocols	SIP, MGCP, H.323
Voice Codecs	G.711, G.723.1, G.726
Fax Support	T.38
Management	Web-based, SNMP
Security	TLS, SRTP, HTTPS, SSH
Operating Temperature	0°C
Network Interfaces	10/100/1000 Ethernet, optional SFP
