AudioCodes MediaPack Series Hardware Installation Manual

MediaPack Analog Gateways 33 MP-1288
Hardware Installation Manual 5. Cabling the Device
The FXS cabling specifications include the following:

Cable: You can use any of the following cables:
• AudioCodes orderable FXS Patch Panel (see Section 5.3.1 on page 35)
• AudioCodes orderable Centronics cable connector (10 m) to open leads, which
needs to be connected to a distribution panel (see Section 5.3.2 on page 38)
• Third-party, main distribution frame (MDF) connector (see Section 5.3.3 on page
39)

Connector Type: 50-pin Telco

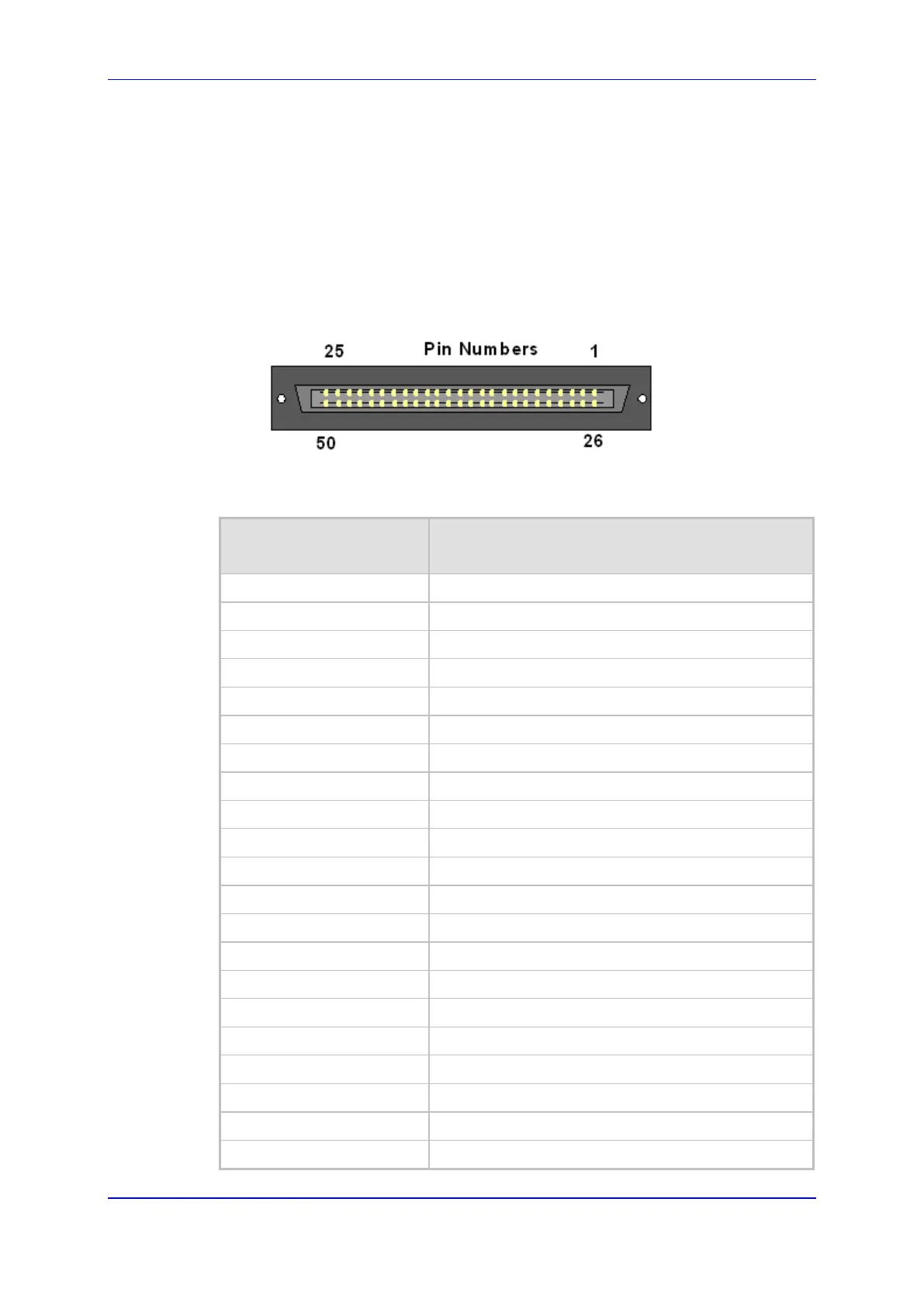

Figure 5-6: 50-pin Telco Connector

Connector Pinouts:
Table 5-2: 50-pin Telco Connector Pinouts
FXS Phone Channel
(Ports)
Connector Pins
1
1/26
2
2/27
3
3/28
4
4/29
5
5/30
6
6/31
7
7/32
8
8/33
9
9/34
10
10/35
11
11/36
12
12/37
13
13/38
14
14/39
15
15/40
16
16/41
17
17/42
18
18/43
19
19/44
20
20/45
21
21/46
