AudioCodes MediaPack Series Hardware Installation Manual

MediaPack Analog Gateways 19 MP-1288
Hardware Installation Manual 3. Physical Description
3.3 Rear Panel Description

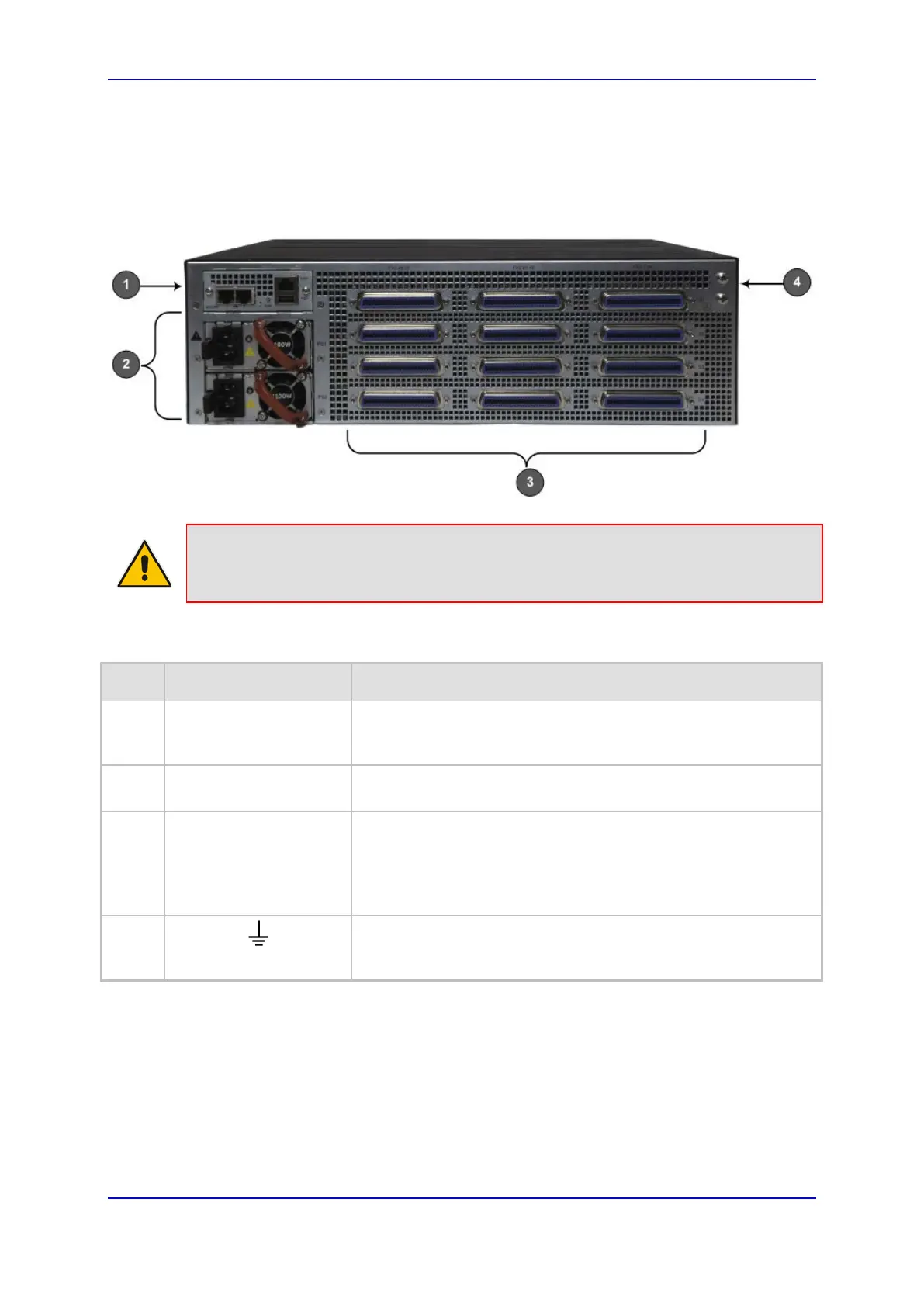

The device's rear panel is shown in the figure below and described in the subsequent table.
Figure 3-4: Rear Panel Description
Note: The figure above is used only as an example. The number of installed FXS blades
and Power Supply modules depends on your ordered hardware configuration.
Table 3-7: Rear Panel Description
Item # Label Description
1
CPU
CPU module providing the central processing unit and various
network port interfaces. For more information, see Section 3.3.1
on page 20.
2 PS1 / PS2 Power Supply modules. For more information, see Section 3.3.3
on page 23.
3 Blades:
S1 / S2 / S3 / S4
FXS Ports:
FXS 1-24 / FXS 25-48 /
FXS 49-72
FXS blades providing FXS port interfaces. For more information,
see Section 3.3.2 on page 21.
4 Protective grounding for connecting a grounding lug for chassis
ground connection for ESD-preventive equipment or a grounding
wire.

AudioCodes MediaPack Series Specifications

General

Series	MediaPack
Category	Gateway
Humidity	10% to 90% non-condensing
VoIP Protocols	SIP, MGCP, H.323
Voice Codecs	G.711, G.723.1, G.726
Fax Support	T.38
Management	Web-based, SNMP
Security	TLS, SRTP, HTTPS, SSH
Operating Temperature	0°C
Network Interfaces	10/100/1000 Ethernet, optional SFP
