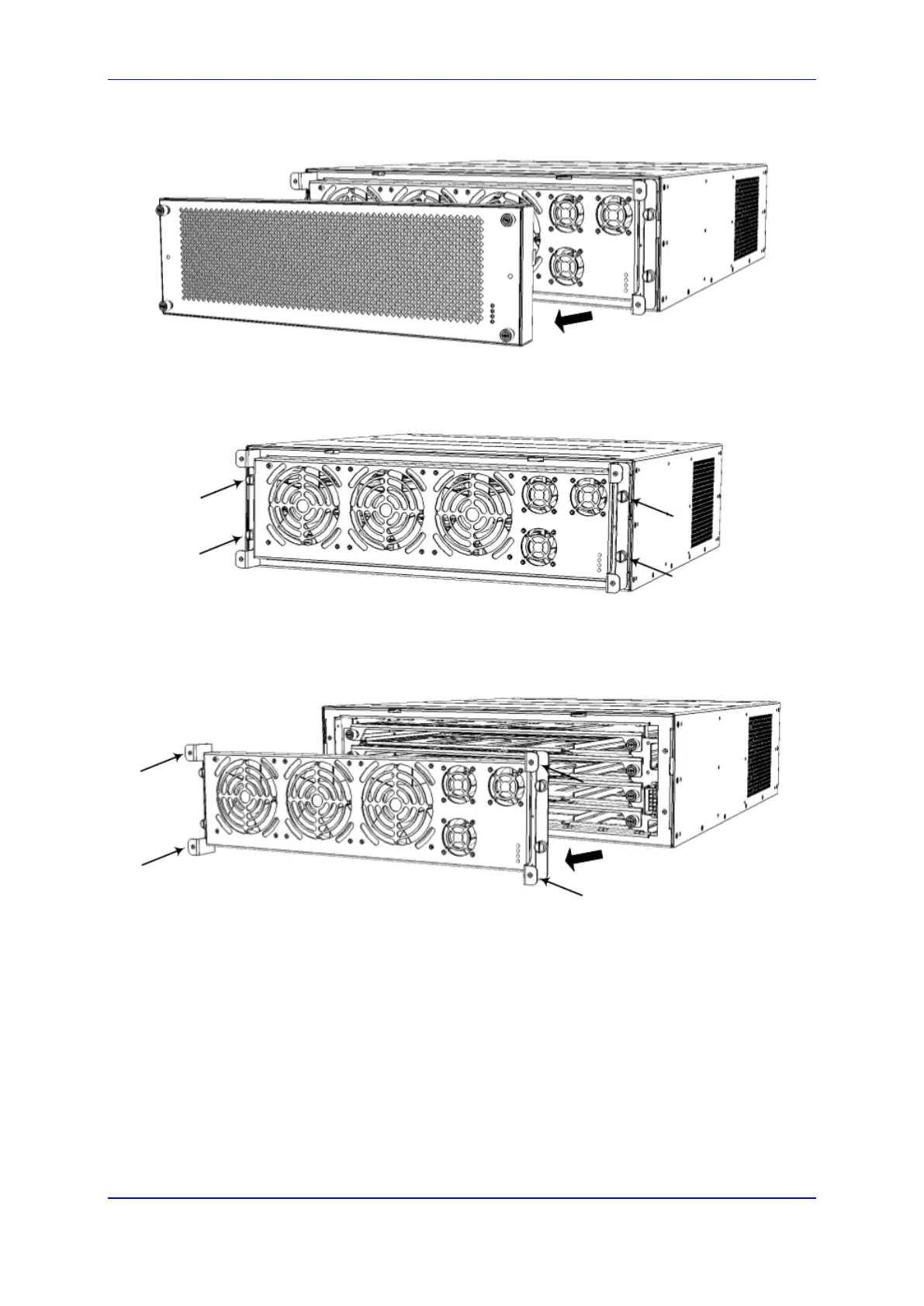

Figure 6-2: Removing Fan Tray Cover
c. Loosen the four flat-head, spring-loaded captive screws securing the Fan Tray
module to the chassis, using a flat-head screwdriver.
Figure 6-3: Location of Screws on Fan Tray Module
d. Grip the handle of the Fan Tray module where you removed the screws in the
previous step, and then gently but firmly pull the module away from the chassis
so that it disconnects from the connector providing it with power:
Figure 6-4: Location of Handles and Removing Fan Tray Module
2. Install the new Fan Tray module:
a. Orientate the Fan Tray module as shown in Figure 6-4.
b. Grip the handles on the Fan Tray module, and then gently attach the module to
the front panel, making sure that it has engaged with the chassis backplane.
c. Secure the Fan Tray module to the chassis by tightening the four flat-head,
spring-loaded captive screws on the front panel of the module. You can use a
flat-head screwdriver.
d. Orientate the Fan Tray cover as shown in Figure 6-1 and then place it over the
Fan Tray module so that the screws are flush with screw holes on the handles of
the Fan Tray module. Secure the cover by tightening the four Philips-head,
spring-loaded captive screws located in each corner of the cover.
To Next Page
