3.3.4.3 FXS LEDs
Each FXS blade provides two LEDs that indicate the status of the FXS blade, as described
in the table below. Both LEDs indicate the same status information. One LED is located on
its front panel and the other LED on its rear panel to the left of the left-most FXS port
(labeled FXS 49-72), as shown in the figures below:

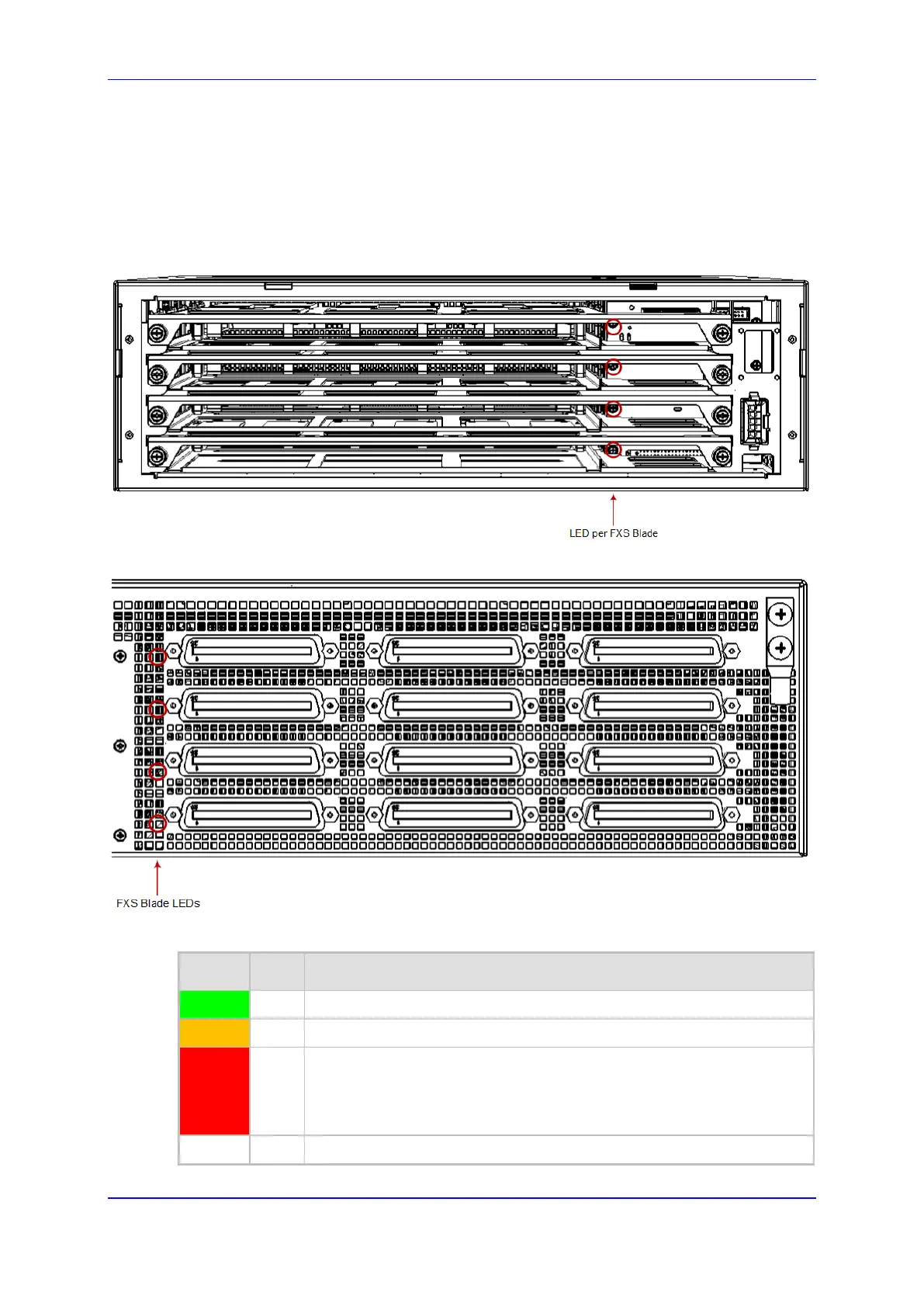

Figure 3-10: FXS LED Location on Front Panel per FXS Blade
Figure 3-11: FXS LED Location on Rear Panel per FXS Blade
Table 3-13: FXS LEDs Description
Color State Description
Green
On FXS blade initialization completed and is functioning normally.
Orange
On Some (less than a third) FXS ports are out of service.
Red
On FXS blade initialization has not completed or a failure detected in the
FXS blade due to any of the following:
 Multiple FXS ports (more than a third) are out of service
 DSP failure
- Off No power.
