Access to the parameters of the AUMATIC AC 01.1 via Explicit DeviceNet
Messages is usually gained using the EDS file (Electronic Data Sheet) in
combination with a configuration tool, e.g. RSNetWorx by Allen-Bradley.
In the EDS file, the parameters are defined with their Class ID, Instance ID
and Attribute ID as well as the permissible minimum and maximum values.
This enables easier access to the parameters.
38
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
DeviceNet Operation instructions

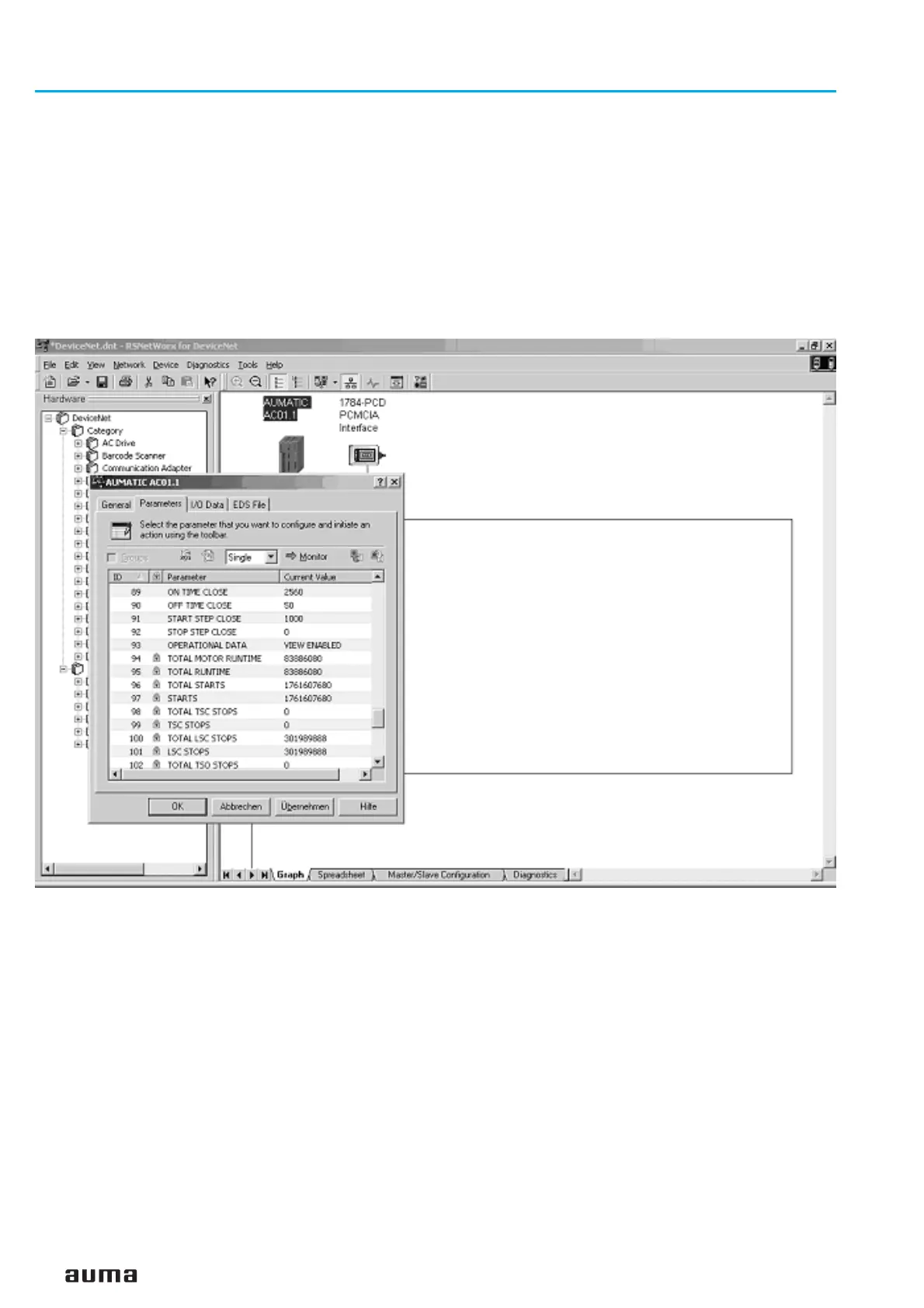

Figure H: View of the parameterization of the AUMATIC AC 01.1 via RSNetWorx by Allen-Bradley
