Live Bronchoscope
The Primary Area of the Live Bronchoscope shows more detailed information than when located
in the Scrolling Area.
The core of the Monarch Navigation Application is the Live Bronchoscope view
which provides vision in both the central airways and the periphery. This camera
view is always displayed in either Full Screen Mode, Primary Area, or Scrolling
Area positions.

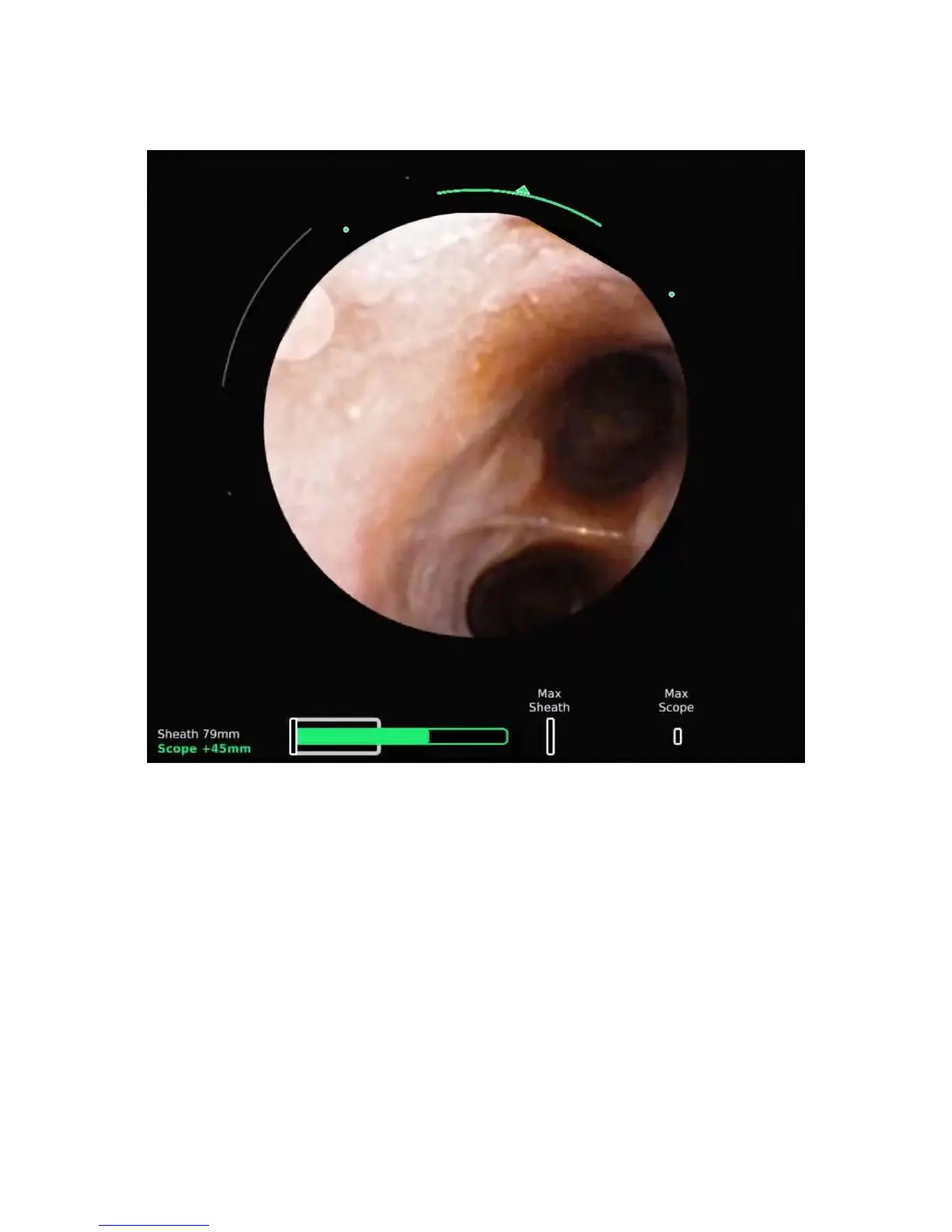

The Primary Area of Live Bronchoscope presents the camera image cropped to a
660px circle. Two concentric arcs represent the articulation of the scope (inner)
and sheath (outer). As articulation increases, the arcs increase in length. The
dots indicate the max articulation of the sheath/scope. The dots turn to hash
marks when max articulation is reached. The device that is actively being
articulated will be colored (blue: sheath; green: scope).
The location of the working channel is represented by a half circle at the edge of
the camera image.
