3 Dimensions
28 © Copyright Reserved Autonics Co., Ltd.
3.1.2 Module Connection

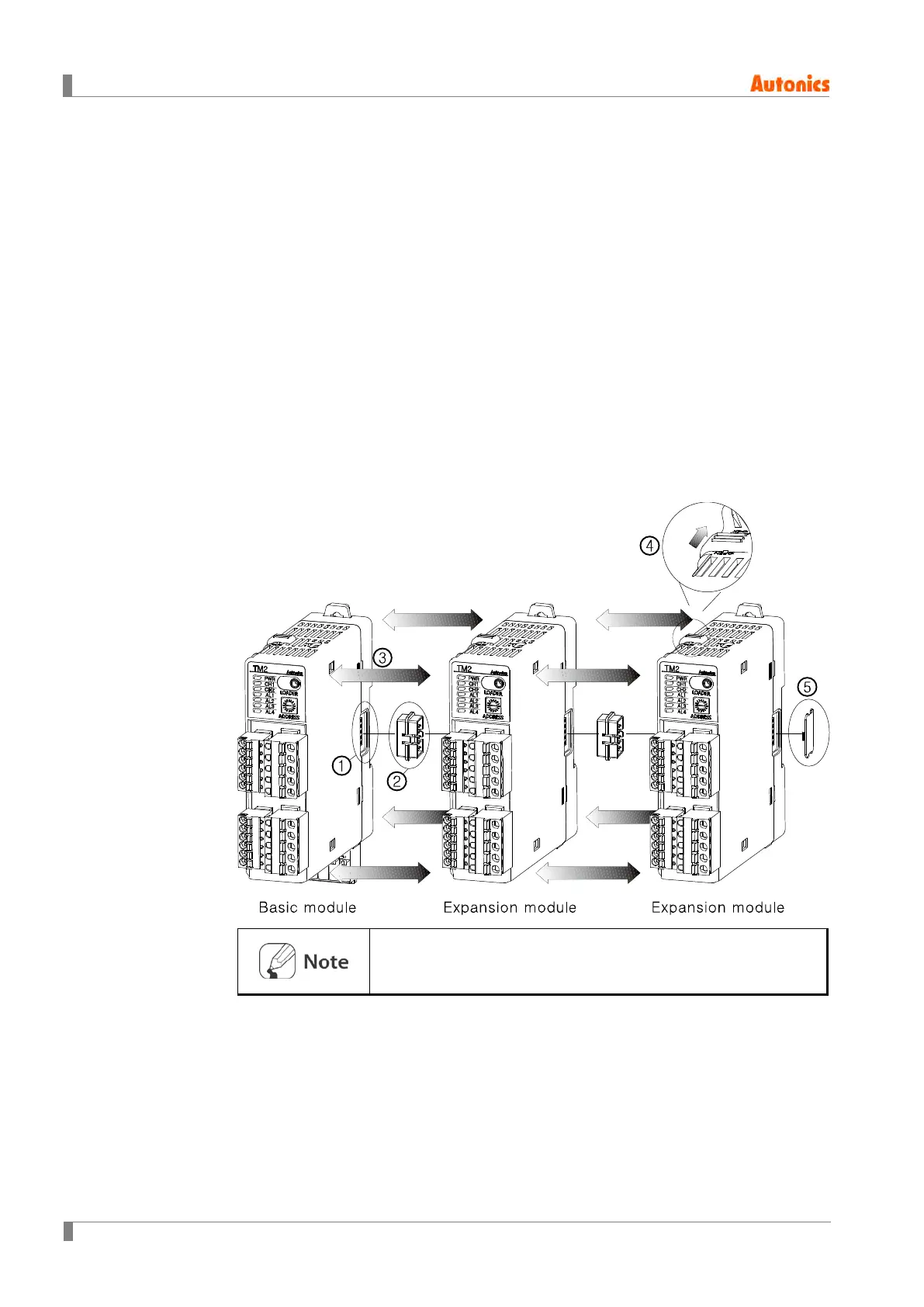

TM series allows simulataneous monitoring for multi channel I/O with connecting multiple
modules using module expansion connectors. Connect expansion modules to a basic
module. Basic module can be placed in any position among multiple module sets.
Remove the cover.
1 Remove END cover for both basic modules and expansion modules.
2 Insert expansion module connection connectors.
3 Connect an expansion module without space.
4 Fix the LOCK switch by pushing it in the LOCK direction.
5 Mount the END cover at each side.
Up to 30 expansion modules can be connected to a basic module.
However, use an adequate power supply system for the power
input specifications and overall capacity.
