4 Connections and block diagram
© Copyright Reserved Autonics Co., Ltd. 33
4 Connections and block diagram

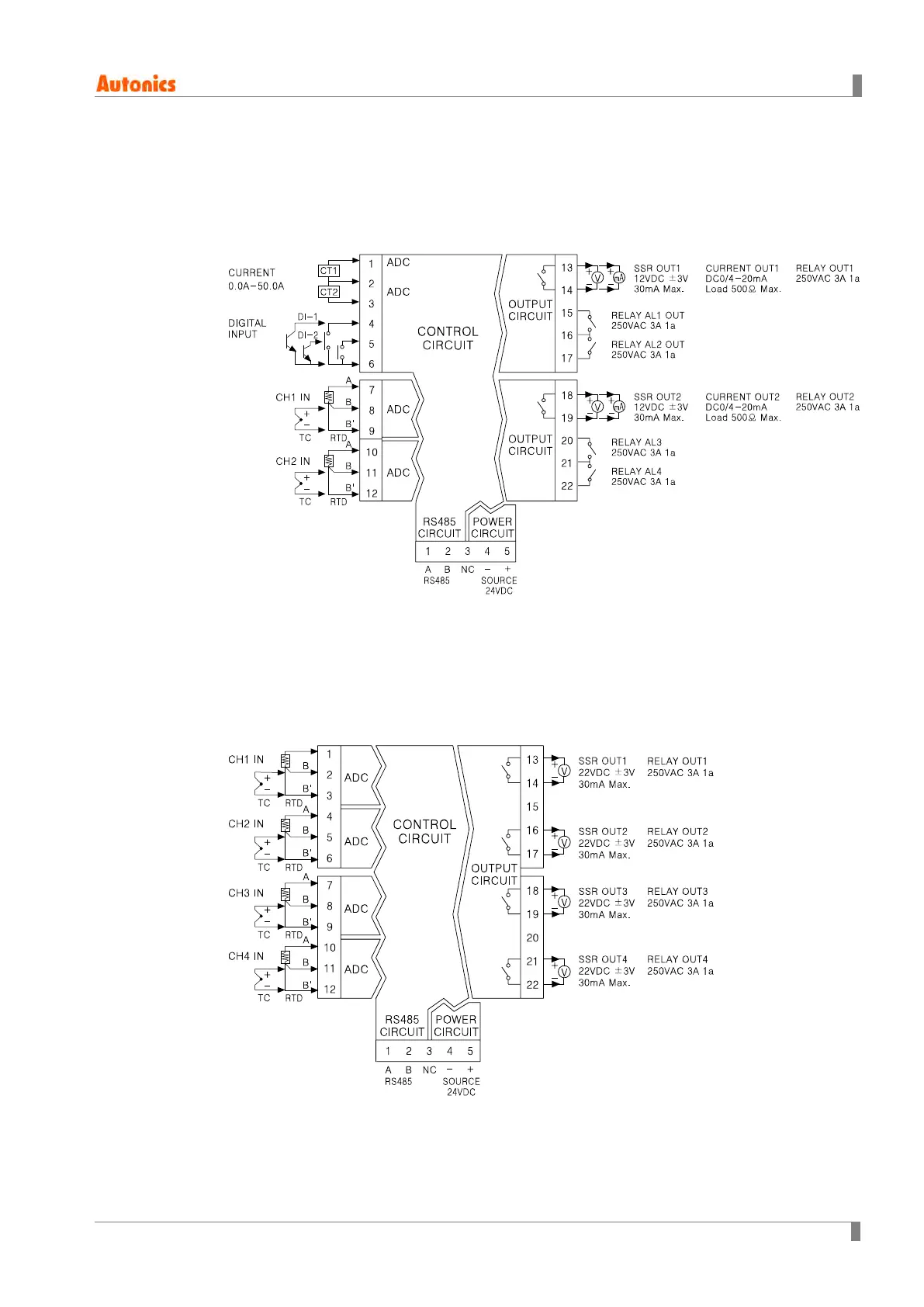

(1) TM2 series
※USB to Serial communication (Port B) is insulation structure as same as RS485
communication (Port A).
※Relay AL3 OUT, Relay AL4 OUT are available only for TM2-42□□ models.
(2) TM4 series
※USB to Serial communication (Port B) is insulation structure as same as RS485
communication (Port A).
