6.2 Control Output
6.2.1 Control Output Operation Mode Settings
 Control output modes for general temperature control include heating, cooling, and
heating and cooling.
 Heating control and cooling control are mutually opposing operations with inverse
outputs.
 The PID time constant varies based on the controlled objects during PID control.
Group Parameter Range
Factory
Default
Unit
Initial Setting Group Operating Type
Heating, Cooling
Heating and Cooling
Heating -

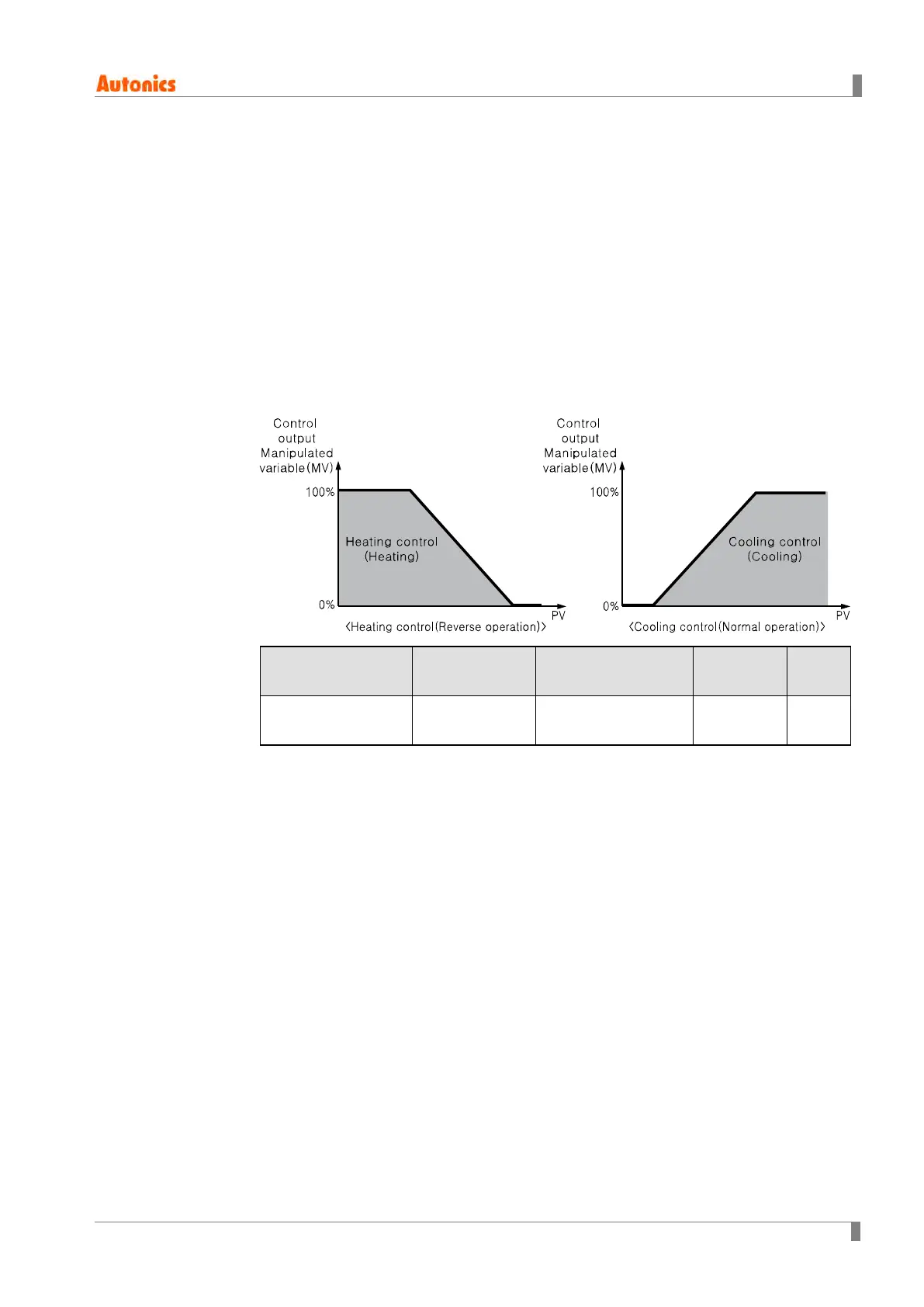

6.2.1.1 Heating Control
Heating control mode: the output will be provided in order to supply power to the load
(heater) if PV (Present Value) falls below SV (Setting Value).
6.2.1.2 Cooling Control
Cooling control mode: the output will be provided in order to supply power to the load
(cooler) if PV (Present Value) rises above SV (Setting Value).
