Obtaining and Activating a License Key

Issue 2 July 2005 159

Obtaining a Routing License Key

To obtain a License Key that enables routing features:

1. Go to h

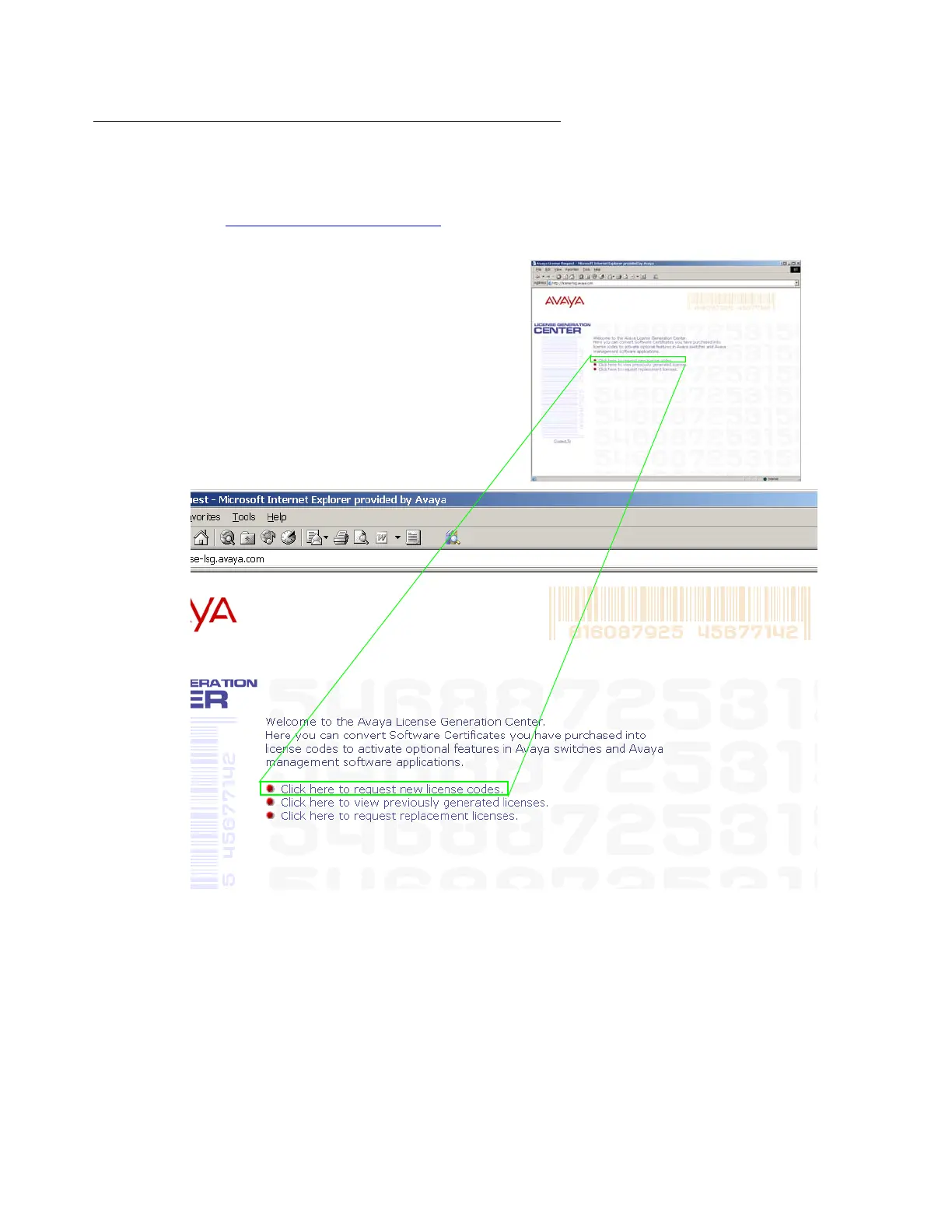

ttp://license-lsg.avaya.com and click "request new license".
