Rack Mounting (Optional)
The C360 case fits in most standard 19-inch racks. It is 1U (44.45 mm, 1.75") high.
You can mount the C360 in a standard 19" rack either in "front-mount" or “mid-mount" positions
using the brackets supplied with the chassis.
The brackets are symmetric: you can fix either bracket on either side.
Figure 8
shows the two available rack mounting positions:

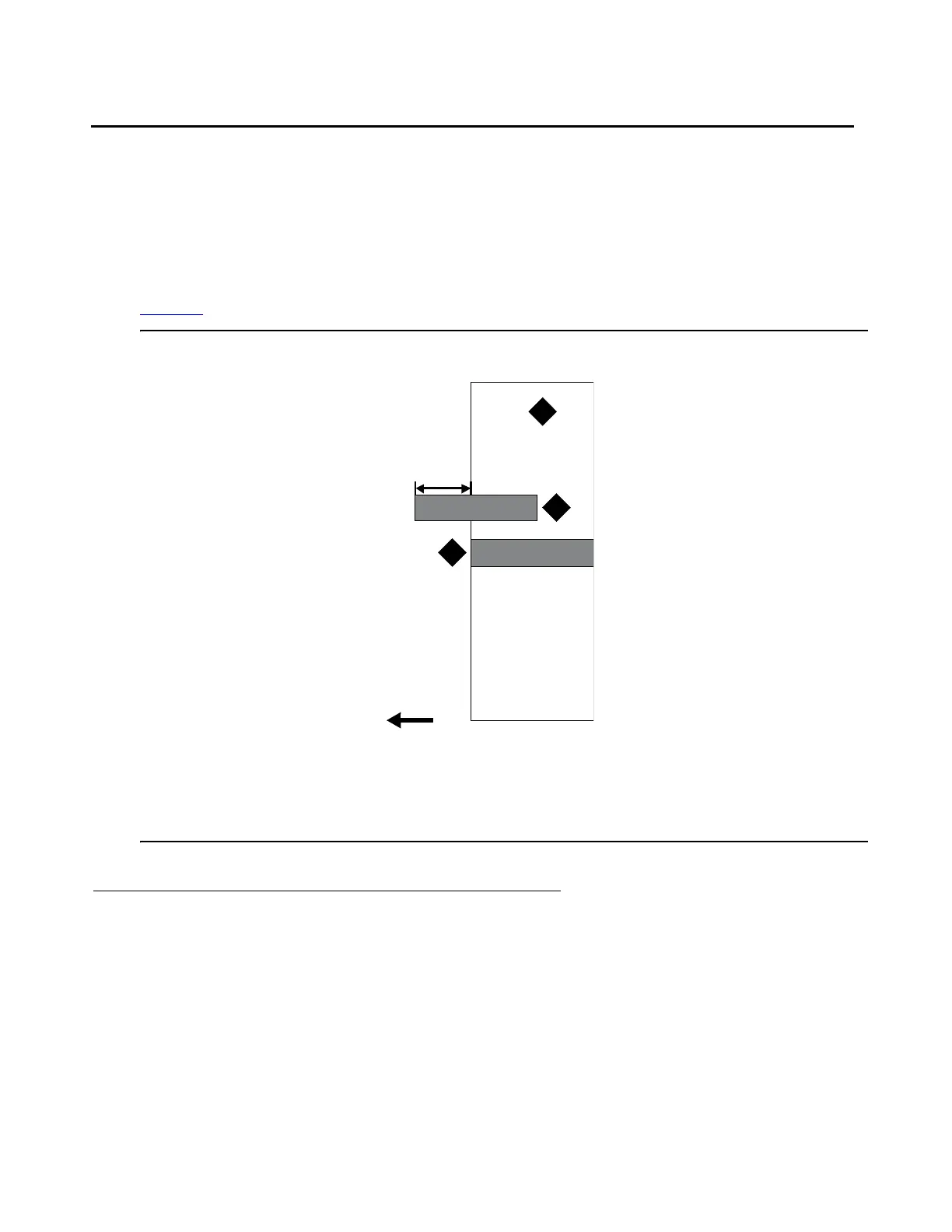

Figure 8: Front and Mid-Mount Positions
Before you Install the C360 in a Rack
Before you install the C360 in a rack:
1. When installing a C360 in a rack, ensure that the equipment is positioned such that it will
not cause the rack to become unstable or tip over.
Figure notes:
1. Equipment rack
2. Mid-mount position
3. Front mount position
7.9"
1
2
3
