19

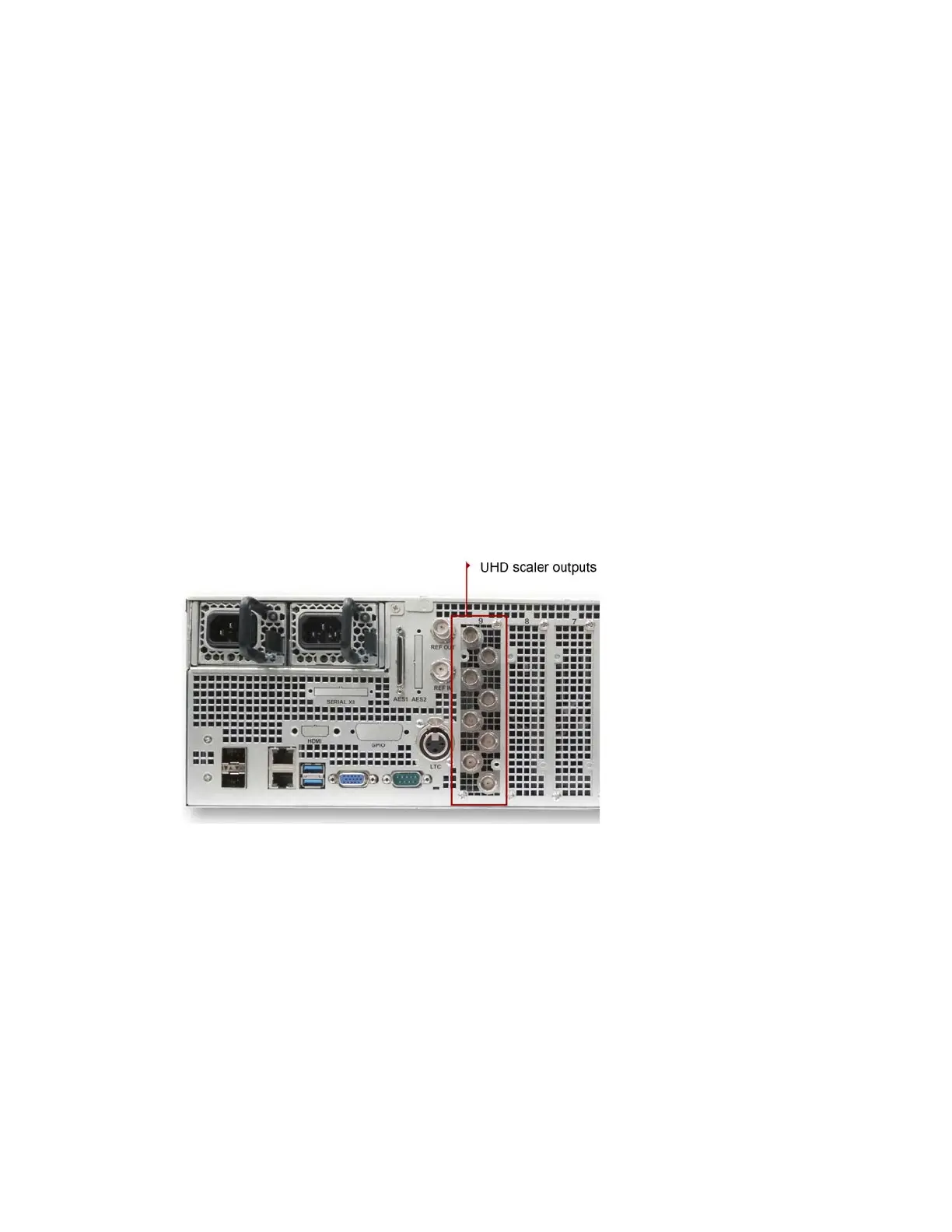

UHD Scaler Outputs
Scaler outputs are used when FastServe | Live Edit or
FastServe | Ingest server is in the UHD
DNxHR mode.
Each scaler output provides a resolution of 1 x 1080p. Sc
ale
r outputs can also be used with OSD. In
that mode, the channel name is located in the left row of the SDI outputs.
Below is the information about the scaler outputs:
OUT1
OUT1 DIRTY
OUT2
OUT2 DIRTY
OUT3
OUT3 DIRTY
OUT4
OUT4 DIRTY
Video Inputs / Outputs
Video Inputs/Outputs are located at
the right side on the rear of the FastServe | Live Edit / FastServe
| Ingest server.
The purpose of each socket varies a
cco
rding to the type of the currently settled video configuration.
The image below presents an example of a basis configuration:
