LTC Timecode Connector Specifications
The LTC In is an AC coupled input which requires a minimum 100mV between the LTC and ground.
Peak-Peak input levels cannot be lower than 1.5V.
LTC Loopthrough displays Playback, Channel 2.

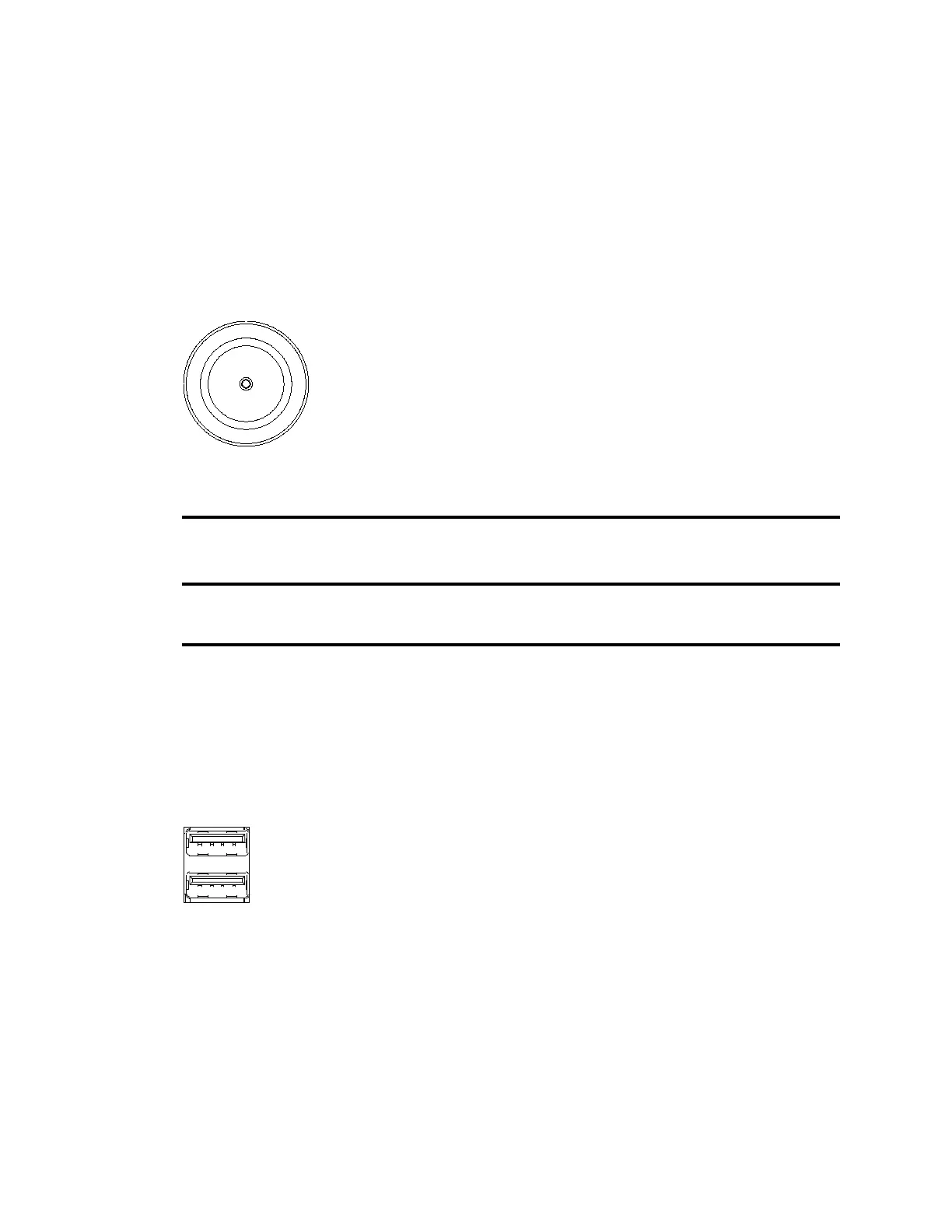

In the following LTC diagram:
• Pin 1 is located at the center.
• Ground is located on the outer shell.
The following table lists LTC specifications.
n
Shielded cable must be used on each connection to maintain RFI compliance. Connect the shield of
the cable to the shield of the connector.
USB 2 Connector Specifications
This is a standard USB 2 connector. We support standard USB 2.0 devices, such as flash drives,
keyboards and mice.
LTC Timecode Input/Loopthrough Connector Specifications
Pin # Signal Function
1 LTC Single ended input
Ground
