Avigilon H5A Series User Manual

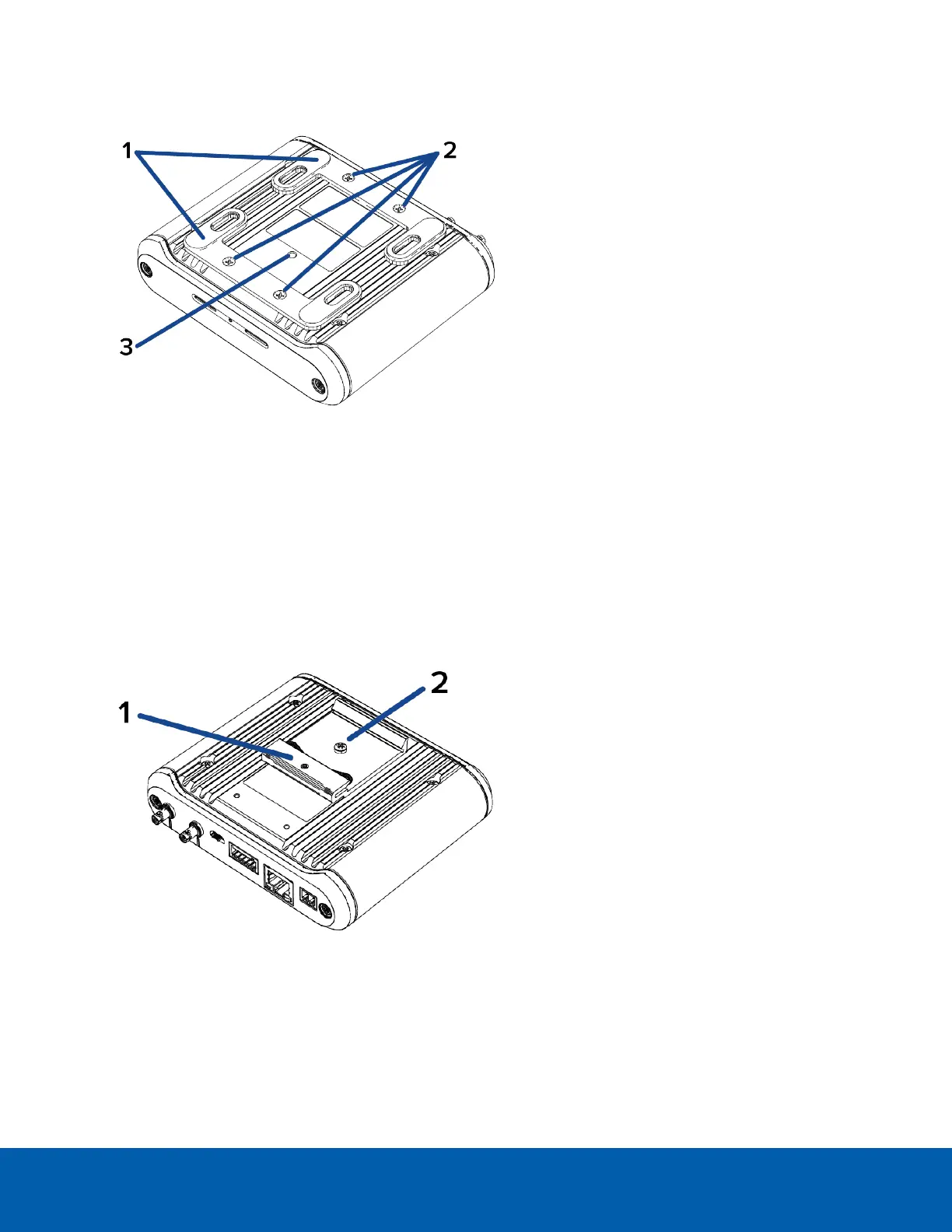

Bottom View
1.
Mounting feet (x2)
Main unit mounting feet that can be used for a tabletop installation or a wall mount. The mounting feet
are removed for a DIN rail mounted unit.
2.
Mounting feet screws (x4)
Screws for fastening the mounting feet to the main unit.
3.
DINrail mount screw hole
Screw hole used for fastening the DIN rail mount to the main unit.
DIN Rail Mount View
1.
DIN rail mount
Mount used for securing the main unit to a DIN rail. Ordered separately (BRKTMD-1001).
2.
DINrail mount screw
Screw used for fastening the DIN rail mount to the main unit.
Bottom View 10

Avigilon H5A Series Specifications

General

Model	H5A Series
Sensor Type	CMOS
Lens Type	Varifocal
Day/Night	Yes
IR Distance	Varies by model
WDR	Yes
Video Compression	H.265, H.264
Frame Rate	Up to 30 fps
Ethernet	100BASE-TX
Power	PoE or 12VDC
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (depending on the model)
Ingress Protection	IP66
Impact Rating	IK10
Dimensions	Varies by model
Weight	Varies by model
