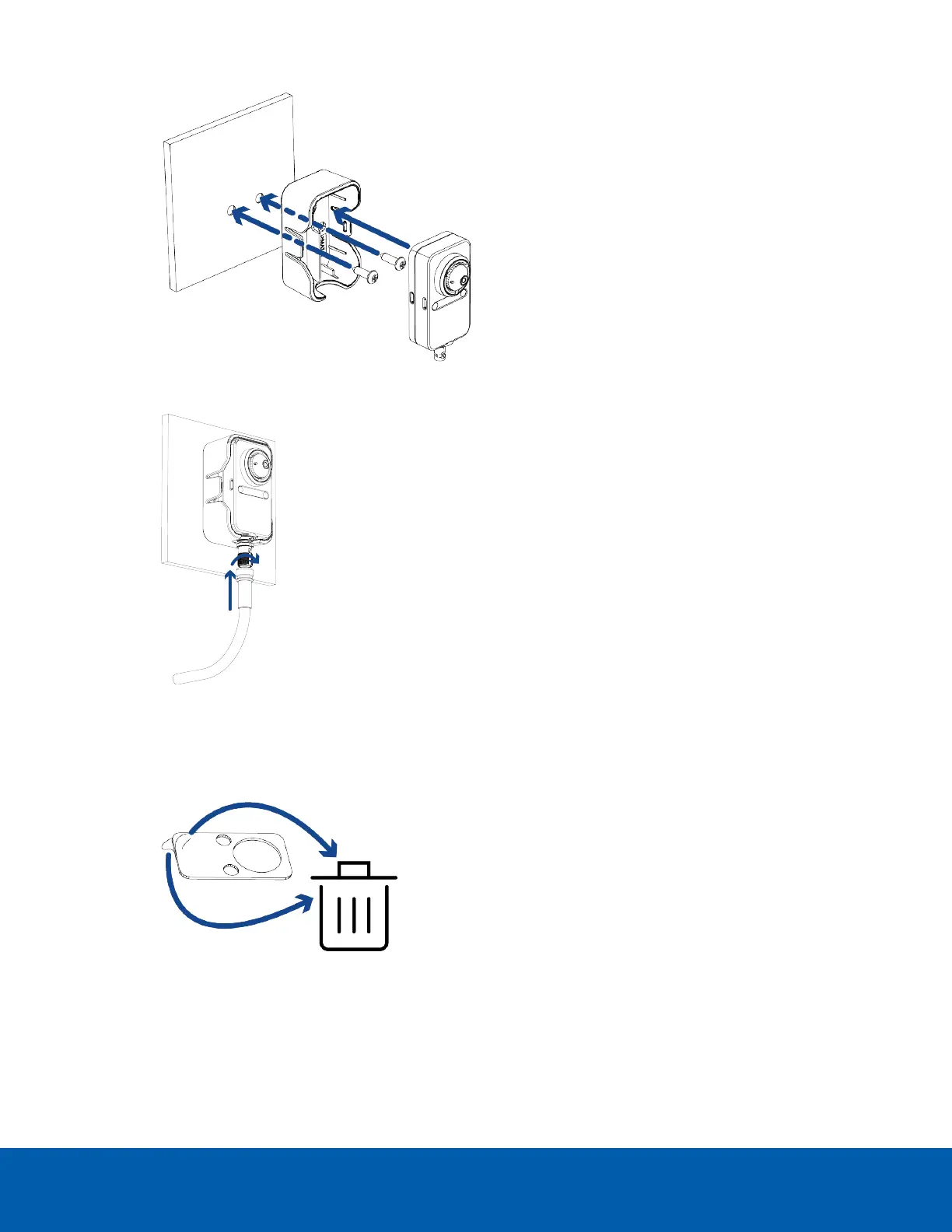

3. Connect the HD BNC cable.
Installing with the Adhesive Strip
1. Peel the protective layer off of each side of the adhesive strip and discard.
2. Place the adhesive strip onto the mounting surface, making sure to align it with the placement you
want the imager to have. Align the mounting bracket with the adhesive strip and press the bracket
firmly onto the adhesive for at least 5 seconds. Snap the right angle imager into the bracket by gently
pushing the imager inwards until the bracket mounting clips click into place.
Installing with the Adhesive Strip 47

Avigilon H5A Series Specifications

General

Model	H5A Series
Sensor Type	CMOS
Lens Type	Varifocal
Day/Night	Yes
IR Distance	Varies by model
WDR	Yes
Video Compression	H.265, H.264
Frame Rate	Up to 30 fps
Ethernet	100BASE-TX
Power	PoE or 12VDC
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (depending on the model)
Ingress Protection	IP66
Impact Rating	IK10
Dimensions	Varies by model
Weight	Varies by model
