Avigilon H5A Series User Manual

Installing with Mounting Screws

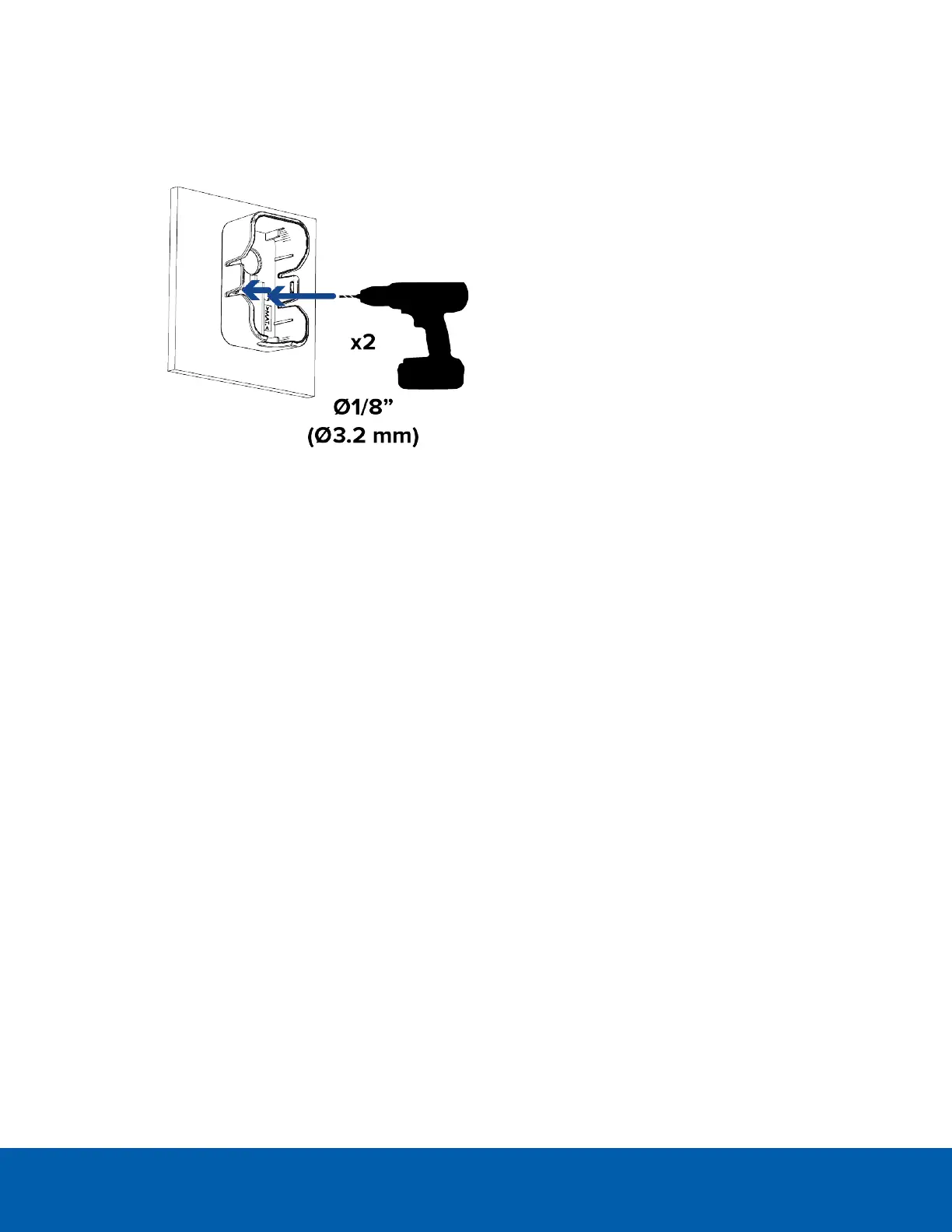

1. Drill two pilot holes into the mounting surface for the mounting screws. Use the mounting bracket as a
guide for the holes.
2. Align the mounting holes on the mounting bracket with the drilled holes. Secure the bracket in place
with the mounting screws. Snap the right angle imager into the bracket by gently pushing the imager
inwards until the bracket mounting clips click into place.
Installing with Mounting Screws 46

Avigilon H5A Series Specifications

General

Model	H5A Series
Sensor Type	CMOS
Lens Type	Varifocal
Day/Night	Yes
IR Distance	Varies by model
WDR	Yes
Video Compression	H.265, H.264
Frame Rate	Up to 30 fps
Ethernet	100BASE-TX
Power	PoE or 12VDC
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (depending on the model)
Ingress Protection	IP66
Impact Rating	IK10
Dimensions	Varies by model
Weight	Varies by model
