Avigilon H5A Series User Manual

Mounting to a Wall

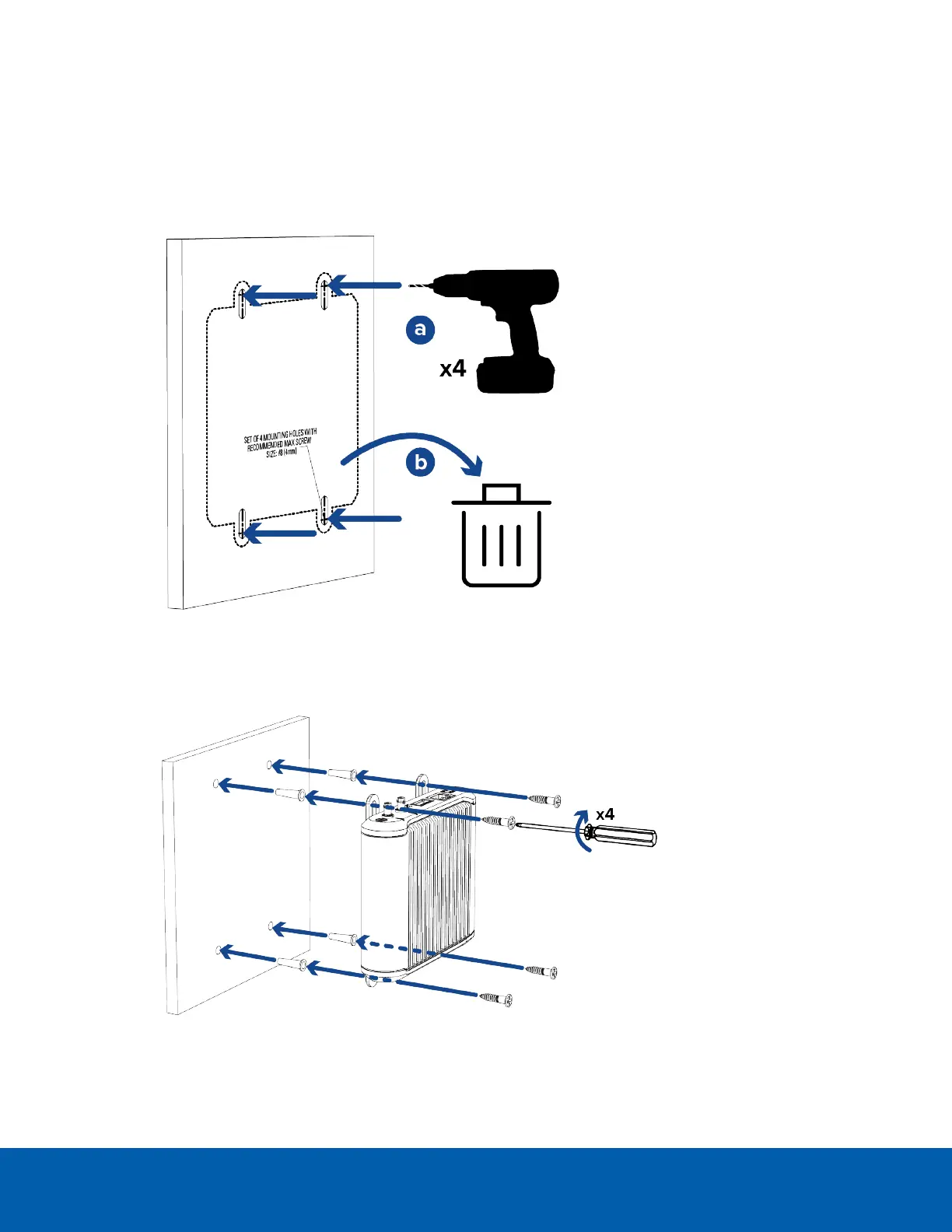

1. Using the Mounting Template, drill 4 pilot holes into the mounting surface for the mounting screws.
Discard the mounting template when you are finished.
Be aware that the cables will be coming from one of the two ends of the mounting template where the
mounting screws are located.
2. Hammer the supplied plastic anchors into the holes.
3. Align the mounting slots on the unit's mounting feet to the drilled pilot holes and use the provided self-
tapping screws to secure the unit to the mounting surface.
Mounting to a Wall 19

Avigilon H5A Series Specifications

General

Model	H5A Series
Sensor Type	CMOS
Lens Type	Varifocal
Day/Night	Yes
IR Distance	Varies by model
WDR	Yes
Video Compression	H.265, H.264
Frame Rate	Up to 30 fps
Ethernet	100BASE-TX
Power	PoE or 12VDC
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (depending on the model)
Ingress Protection	IP66
Impact Rating	IK10
Dimensions	Varies by model
Weight	Varies by model
