Avigilon H5A Series User Manual

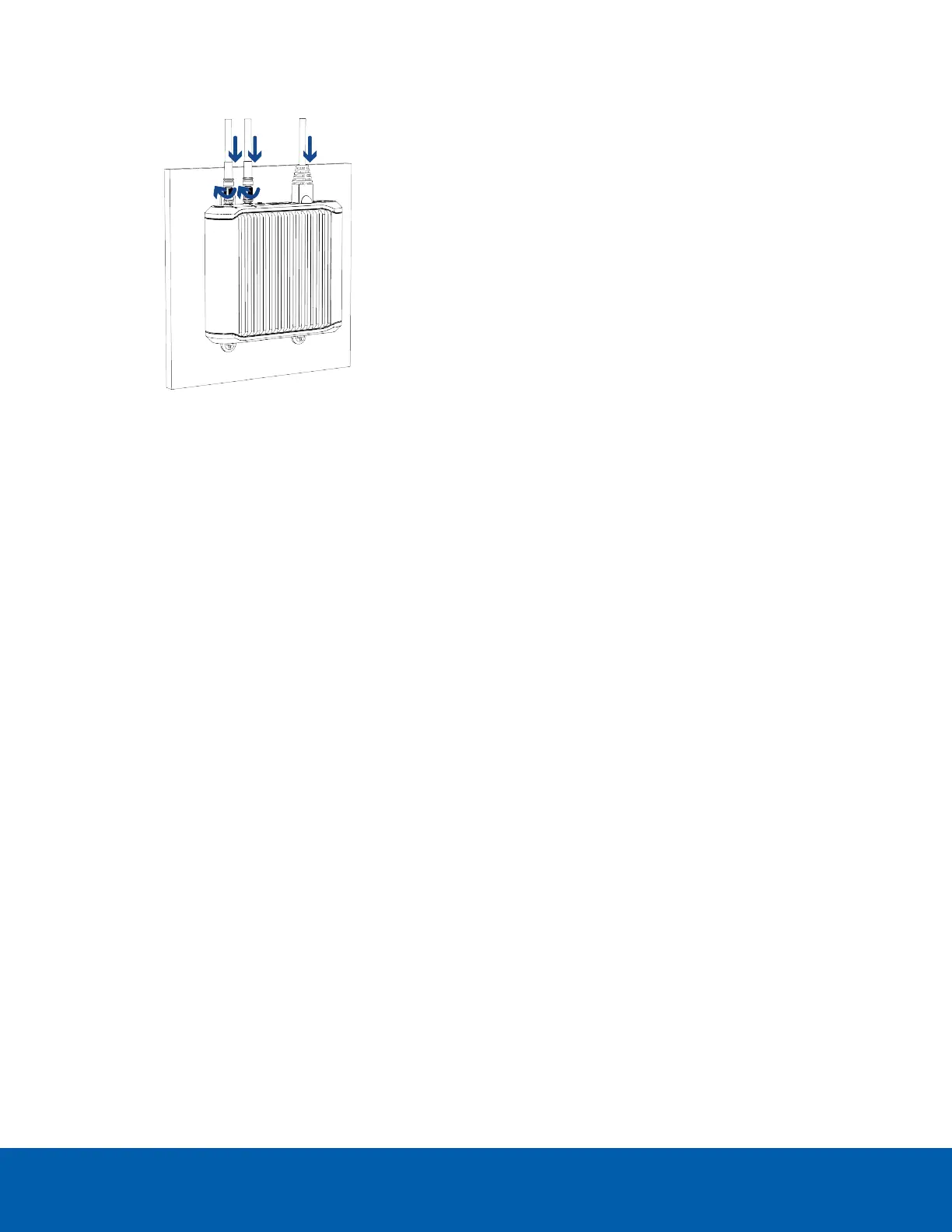

4. Connect the required cables. For more information, see Cable Connections on page22.
Mounting the Unit on a DIN Rail
A DIN rail is a standard metal rail that is widely used for mounting equipment, such as on an equipment rack
or in a storage room. If you are installing the modular camera main unit in a location with accessible DIN rails,
use the DIN rail mount to mount the unit.
The DIN rail mount, BRKTMD-1001, is an optional accessory and must be ordered separately.
Mounting the Unit on a DIN Rail 20

Avigilon H5A Series Specifications

General

Model	H5A Series
Sensor Type	CMOS
Lens Type	Varifocal
Day/Night	Yes
IR Distance	Varies by model
WDR	Yes
Video Compression	H.265, H.264
Frame Rate	Up to 30 fps
Ethernet	100BASE-TX
Power	PoE or 12VDC
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (depending on the model)
Ingress Protection	IP66
Impact Rating	IK10
Dimensions	Varies by model
Weight	Varies by model
