Avigilon H5A Series User Manual

Micro Bullet Imager

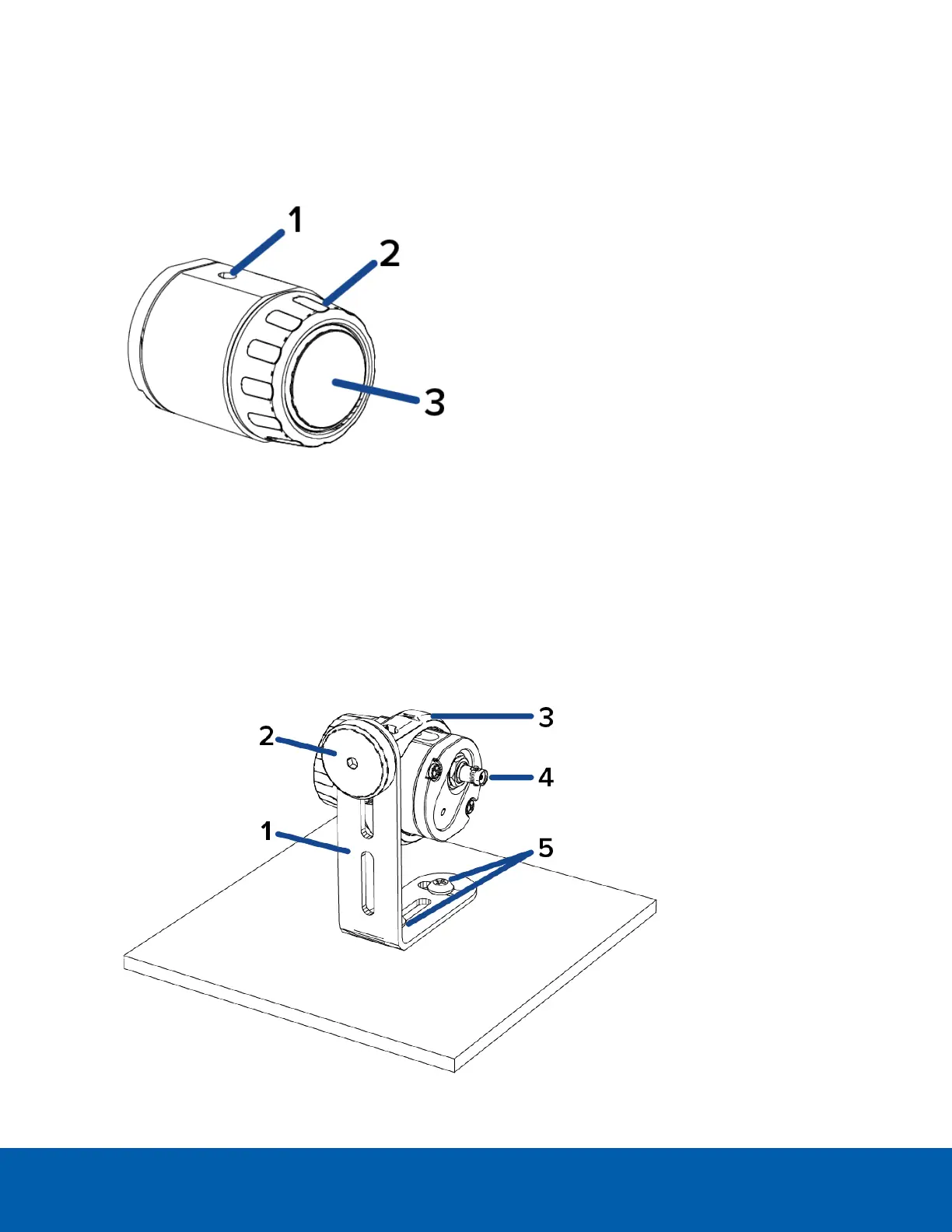

Micro Bullet Imager View
1.
Camera mount
Provides mounting point for the imager. Mount accepts M3 screws.
2.
Lens collar
Removable lens collar.
3.
Camera lens
Lens that captures the video image.
L-Bracket and Micro Bullet View
Micro Bullet Imager 11

Avigilon H5A Series Specifications

General

Model	H5A Series
Sensor Type	CMOS
Lens Type	Varifocal
Day/Night	Yes
IR Distance	Varies by model
WDR	Yes
Video Compression	H.265, H.264
Frame Rate	Up to 30 fps
Ethernet	100BASE-TX
Power	PoE or 12VDC
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (depending on the model)
Ingress Protection	IP66
Impact Rating	IK10
Dimensions	Varies by model
Weight	Varies by model
