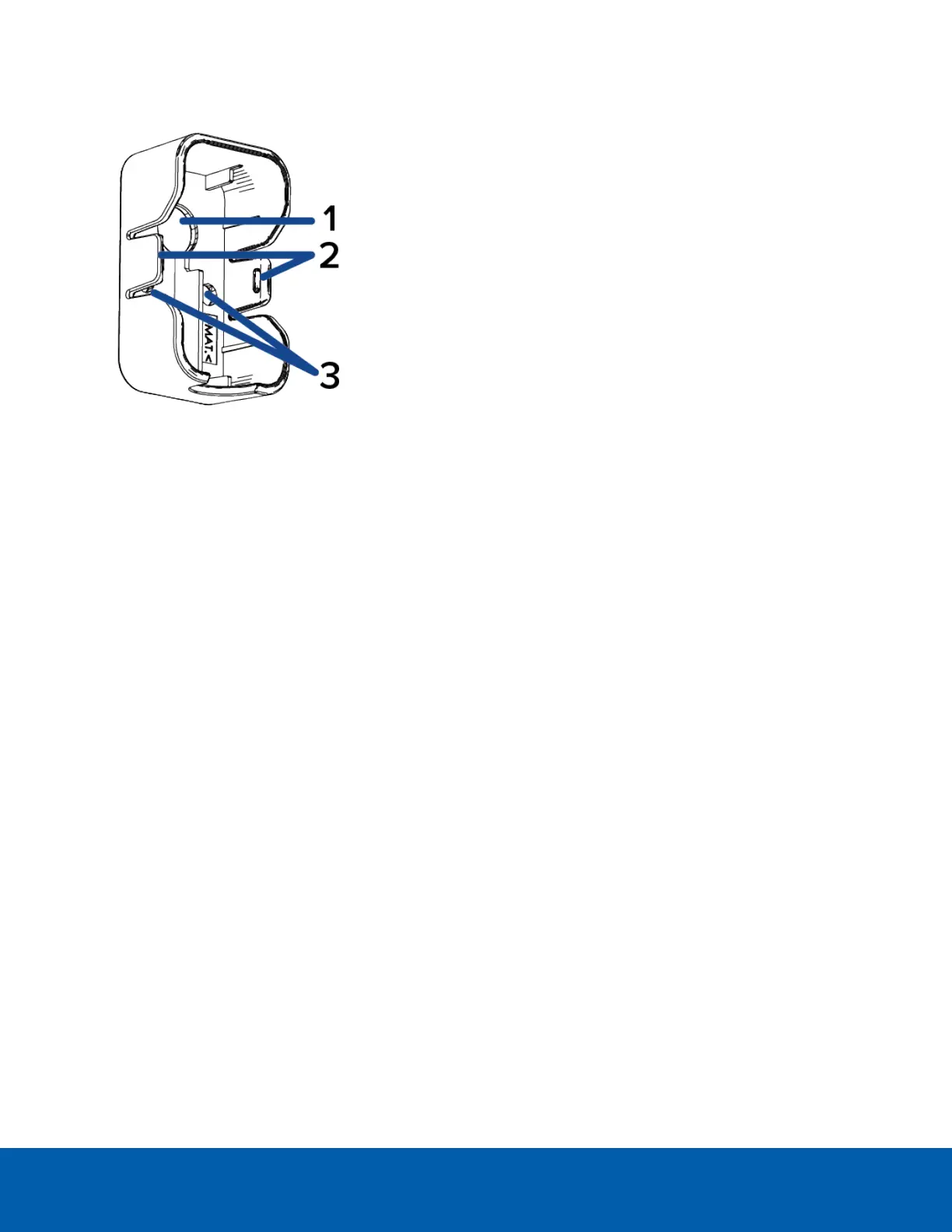

Optional Accessory Flat Bracket View
1.
Lens opening
Opening in the bracket for lens to be positioned.
2.
Bracket mounting clips (x2)
Clips to connect the bracket to the clip retainers on the right angle imager.
3.
Mounting slots (x2)
Slots for fastening the bracket and right angle imager to a mounting surface with the provided
mounting screws.
