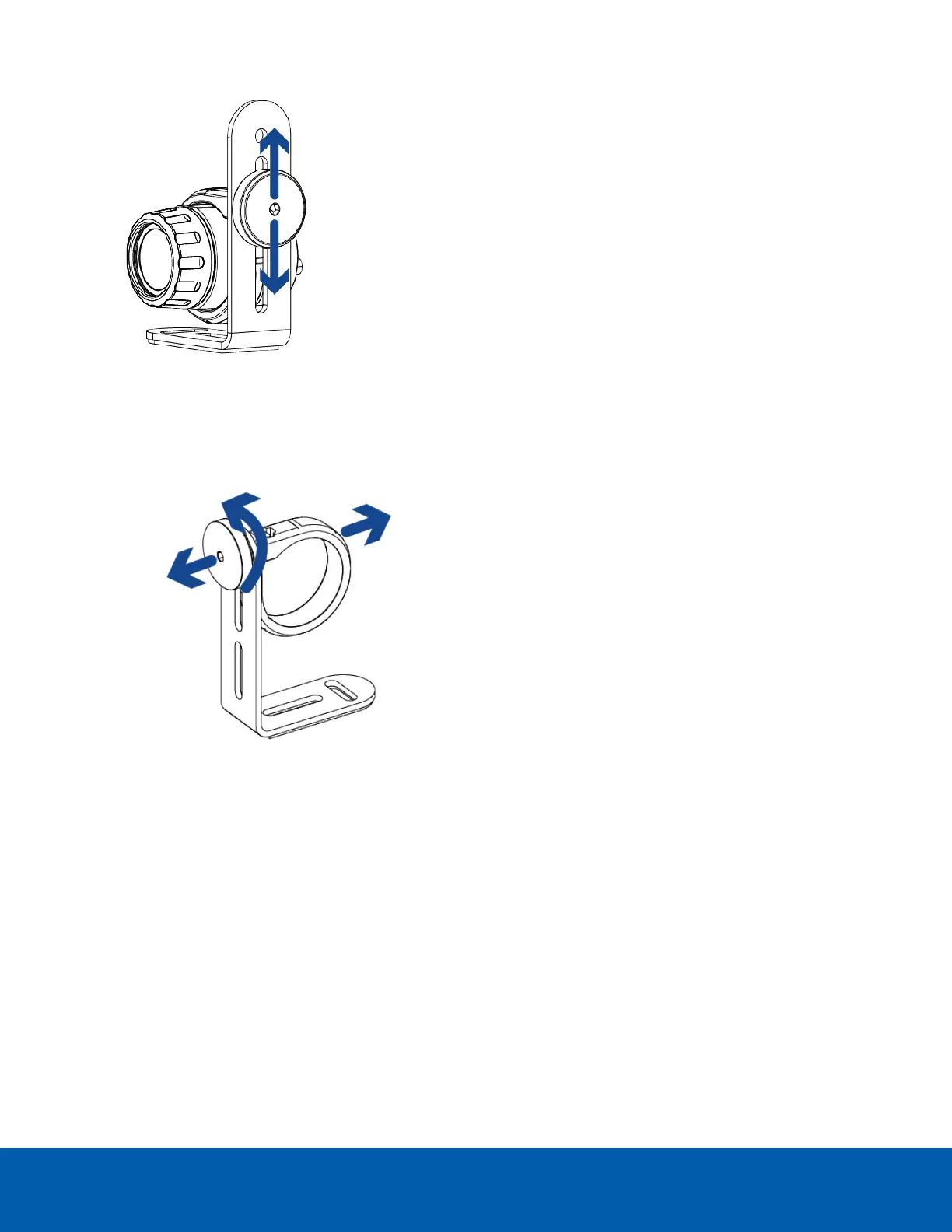

To change the position of the micro bullet collar on the L-bracket:
1. Unscrew the thumbscrew holding the collar to the L-bracket. Pull the collar and thumbscrew off of the
bracket.
2. Re-insert the thumbscrew into the collar through the hole where you would like it to be mounted.
