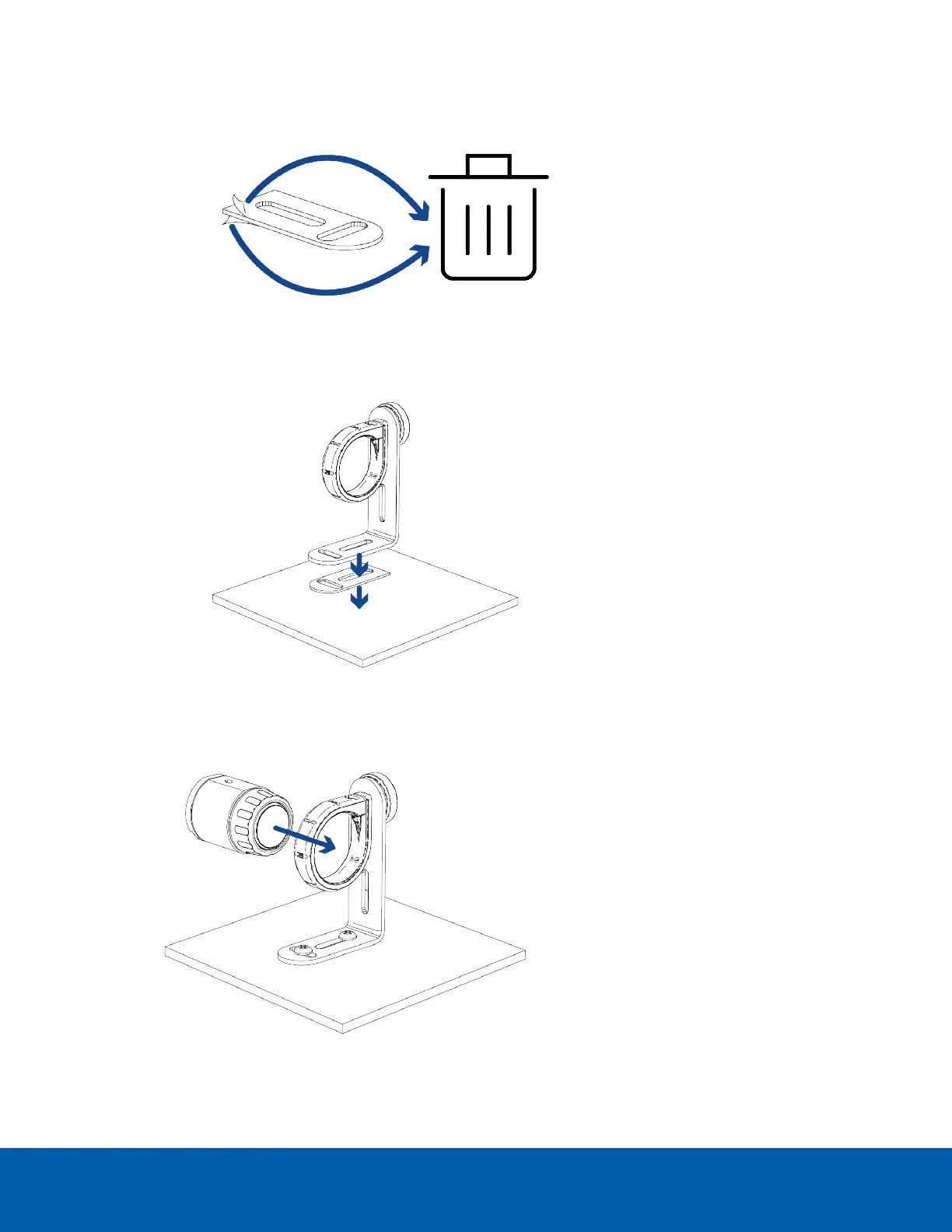

Mounting adhesive strip:
a. Peel the protective layer off of each side of the adhesive strip and discard.
b. Place the adhesive strip onto the mounting surface, making sure to align it with the . Align the L-
bracket with the adhesive strip and press the bracket firmly down onto the adhesive for at least
5 seconds.
2. Insert the micro bullet imager into the mounting collar. The mounting screw hole on the imager should
be on the top of the micro bullet when mounted. This mounting screw hole aligns with the top of the
imager's video frame.
Mounting the L-Bracket 29
