Azbil C35 Series User Manual

5-53
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION

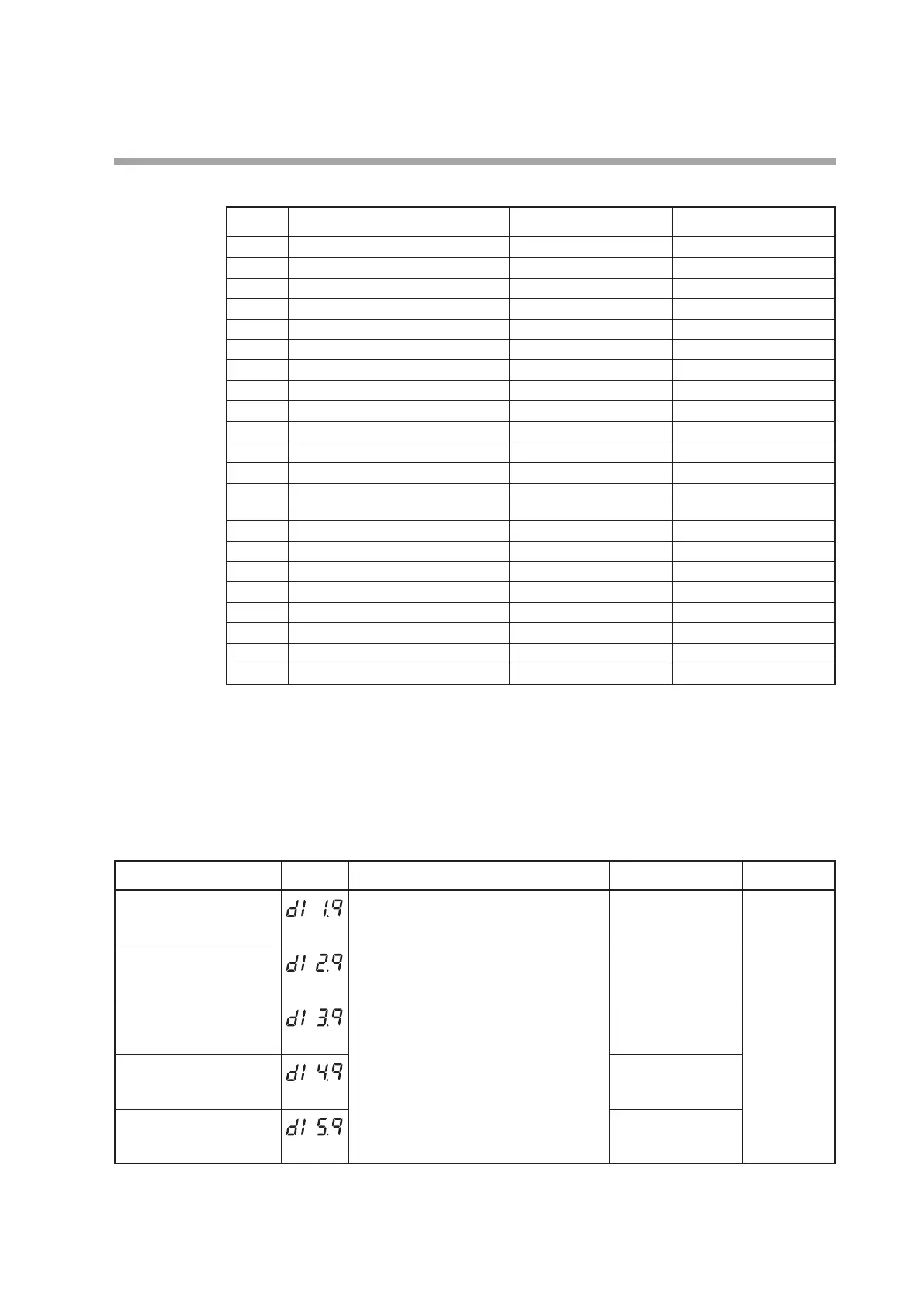

The following Table shows the contents of the
dI
settings:
Set value Function Operation at OFF Operation at ON
0 No function None None
1 LSP group selection (0/+1) LSP No.: +0 LSP No.: +1
2 LSP group selection (0/+2) LSP No.: +0 LSP No.: +2
3 LSP group selection (0/+4) LSP No.: +0 LSP No.: +4
4 PID group selection (0/+1) PID group No.: +0 PID group No.: +1
5 PID group selection (0/+2) PID group No.: +0 PID group No.: +2
6 PID group selection (0/+4) PID group No.: +0 PID group No.: +4
7 RUN/READY mode selection (Note 1) RUN READY
8 AUTO/MANUAL mode selection AUTO MANUAL
9 LSP/RSP mode selection LSP RSP
10 AT (Auto tuning) Stop/Start (Note 2) AT Stop AT Start
11 ST (Self-tuning) disabled/enabled Invalid Invalid
12 Control action direct/reverse
selection
Set action Reverse action of setting
13 SP ramp enabled/disabled SP ramp enabled SP ramp disabled
14 PV value hold No-hold Hold
15 PV Max. hold No-hold Hold
16 PV Min. hold No-hold Hold
17 Timer Stop/Start Timer stop Timer start
18 Release all DO latches Continue if latch exists. Latch release
19 Advance operation (Note 3) Step operation continued.
Moves to next SOAK or RAMP.
20 Step hold Step operation continued. Hold
(Note 1) Signal edge from OFF to ON or from ON to OFF is valid during step operation.
(Note 2) Signal edge from OFF to ON or from ON to OFF is valid.
(Note 3) Signal edge from OFF to ON is valid.

Internal event No. assignment
When the operation type is the timer start/stop, a target Internal event number can
be set.
Item (Bank) Display Contents Initial value User level
Internal Contact 1 Internal
event No. assignment
(DI Assignment bank)
0: Every internal event
1 to 8: Internal event number
0 High function
Internal Contact 2 Internal
event No. assignment
(DI Assignment bank)
0
Internal Contact 3 Internal
event No. assignment
(DI Assignment bank)
0
Internal Contact 4 Internal
event No. assignment
(DI Assignment bank)
0
Internal Contact 5 Internal
event No. assignment
(DI Assignment bank)
0
• When the operation type of the same internal contact No. is set at “Timer stop/
start”, the display and setting can be made.
