Azbil C35 Series User Manual

6-15

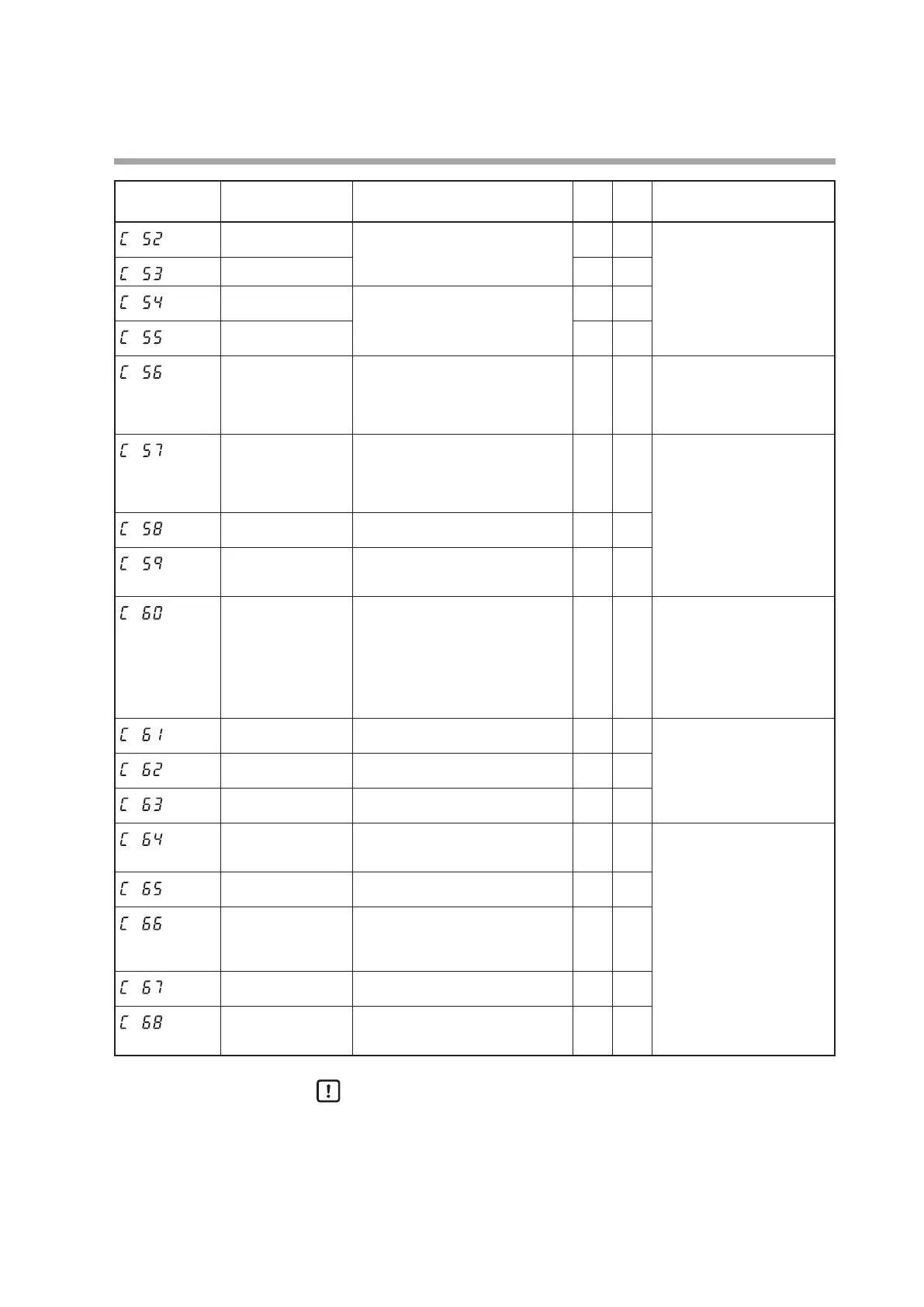

Chapter 6. LIST OF DISPLAYS AND SETTING DATA
Display Item Contents
Initial
value
User
level
Notes
Auxiliary output
range
Same as control output 1. 1 0 Displayed when the auxiliary
output of the model is the
current output or continuous
voltage output.
The decimal point position
and unit is the same as that of
the control output 1.
Auxiliary output type 3 0
Auxiliary output
scaling low limit
-1999 to +9999 (The decimal
point position and unit may vary
depending on the AUX type.)
0 0
Auxiliary output
scaling high limitt
1000 0
Auxiliary output MV
scalable bandwidth
0 to 9999
The decimal point position and unit
are same as for PV.
200 0 If the controller model uses
current output for the auxiliary
output and if the auxiliary
output type is SP+MV or
PV+MV, this setting is displayed.
Position proportional
type
0: MFB control + Estimated position control
1: MFB control
2: Estimated position control (MFB disabled)
3: Estimated position control (MFB disabled)
+ Position adjustment at power ON.
0 0 Displayed when the model
provides the position
proportional output.
Position proportional
dead zone
0.5 to 25.0 % 10.0 0
Motor long life mode 0: Aiming at controllability
1: Aiming at service life of
potentiometer
1 0
Motor adjust 0: Stop
1: Start
0 0 Displayed when the model
provides the position
proportional output.
The motor adjust is stopped
using the [disp] or [mode] key
through the control operation.
It is impossible to write data
through the loader.
Input with motor
fully closed
0 to 9999 1000 0 Displayed when the model
provides the position
proportional output.
It is impossible to write data
through the loader.
Input with motor
fully open
0 to 9999 3000 0
Motor full close-full
open time
5.0 to 240.0 s 30.0 0
Communication type 0: CPL
1: Modbus (ASCII format)
2: Modbus (RTU format)
0 0 Displayed when the optional
model has RS-485.
Station address 0 to 127 (Communication is
disabled when set at "0".)
0 0
Transmission speed 0: 4800 bps
1: 9600 bps
2: 19200 bps
3: 38400 bps
2 0
Data format
(Data length)
0: 7 bits
1: 8 bits
1 0
Data format (Parity) 0: Even parity
1: Odd parity
2: No parity
0 0
(Continue on next page.)
Handling Precautions
• If ROM version 1 of the instrument information bank(
I

d02
) is prior
to 2.04, SP+MV and PV+MV cannot be set in [Control output 1 type],
[Control output 2 type], and [Auxiliary output type ].
• If ROM version 1 of the instrument information bank(
I

d02
) is prior to 2.04,
SP+MV and PV+MV cannot be set in [Control output 1 MV scaling range],
[Control output 2 MV scaling range], and [Auxiliary output MV scaling range].
