6-25

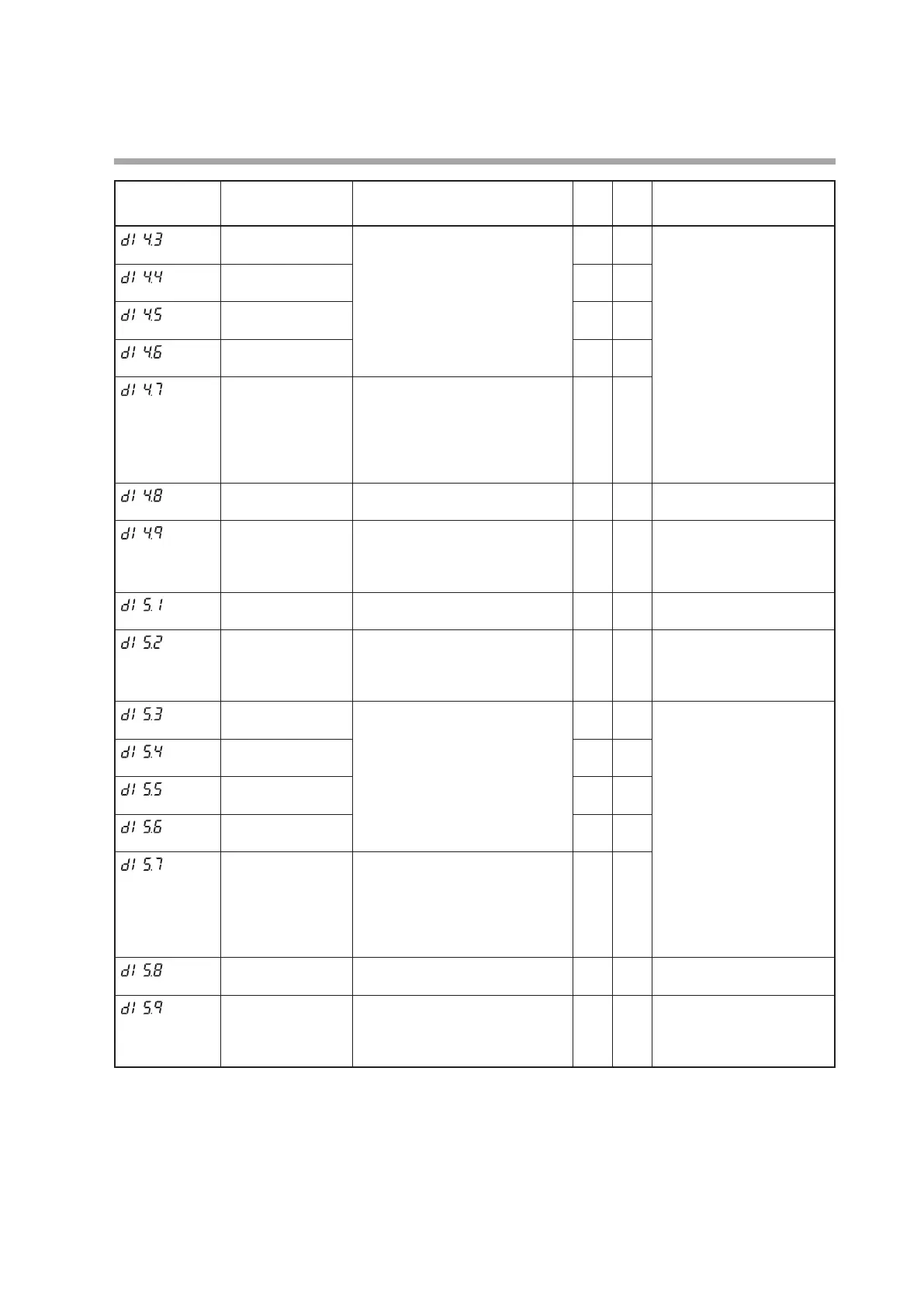

Chapter 6. LIST OF DISPLAYS AND SETTING DATA
Display Item Contents
Initial
value
User
level
Notes
Internal Contact 4
Input assignment A
Same as Internal Contact 1 Input
assignment A to D.
5 2 Displayed when internal
contact 4 input bit function is
set 1 to 4 (
DI 4.2
≠0).
Internal Contact 4
Input assignment B
0 2
Internal Contact 4
Input assignment C
0 2
Internal Contact 4
Input assignment D
0 2
Internal Contact 4
Polarity A to D
1st digit: Polarity A
2nd digit: Polarity B
3rd digit: Polarity C
4th digit: Polarity D
Same as Internal Contact 1 Polarity
A to D
The following setting applies to
each digit:
0: Direct
1: Reverse
0000 2
Internal Contact 4
Polarity
0: Direct
1: Reverse
0 2
Internal Contact 4
Event channel def.
0: Every Internal Event
1 to 8: Internal Event No.
0 2 Displayed when the
operation type of internal
contact 4 is timer stop/start
(
DI 4. 1
= 17).
Internal Contact 5
Operation type
Same as Internal Contact 1
Operation type.
0 0
Internal Contact 5
Input bit function
Same as Internal Contact 1 Input bit
function.
0: Not used. (Default input)
1 to 4: Function 1 to 4
0 2 When using internal contact
4, the default input is invalid.
Internal Contact 5
Input assignment A
Same as Internal Contact 1 Input
assignment A to D.
0 2 Displayed when internal
contact 5 input bit function is
set 1 to 4 (
DI 5.2
≠0).
Internal Contact 5
Input assignment B
0 2
Internal Contact 5
Input assignment C
0 2
Internal Contact 5
Input assignment D
0 2
Internal Contact 5
Polarity A to D
1st digit: Polarity A
2nd digit: Polarity B
3rd digit: Polarity C
4th digit: Polarity D
Same as Internal Contact 1 Polarity
A to D
The following setting applies to
each digit:
0: Direct
1: Reverse
0000 2
Internal Contact 5
Polarity
0: Direct
1: Reverse
0 2
Internal Contact 5
Event channel def.
0: Every Internal Event
1 to 8: Internal Event No.
0 2 Displayed when the
operation type of internal
contact 5 is timer stop/start
(
DI 5. 1
= 17).
