2-24
Chapter 2 Installation of this Device
Install the transmitter and flushing ring according to Figure 2-29.
• Be sure to install the flushing ring so that the vent/drain plugs are in a vertical position.
• Prepare the correct size parts (threaded rods, nuts, gaskets) according to the process flange.
Consider the port diameter, pressure rating, operating temperature, etc. when selecting.
• Tighten the nuts evenly and firmly to prevent leakage.

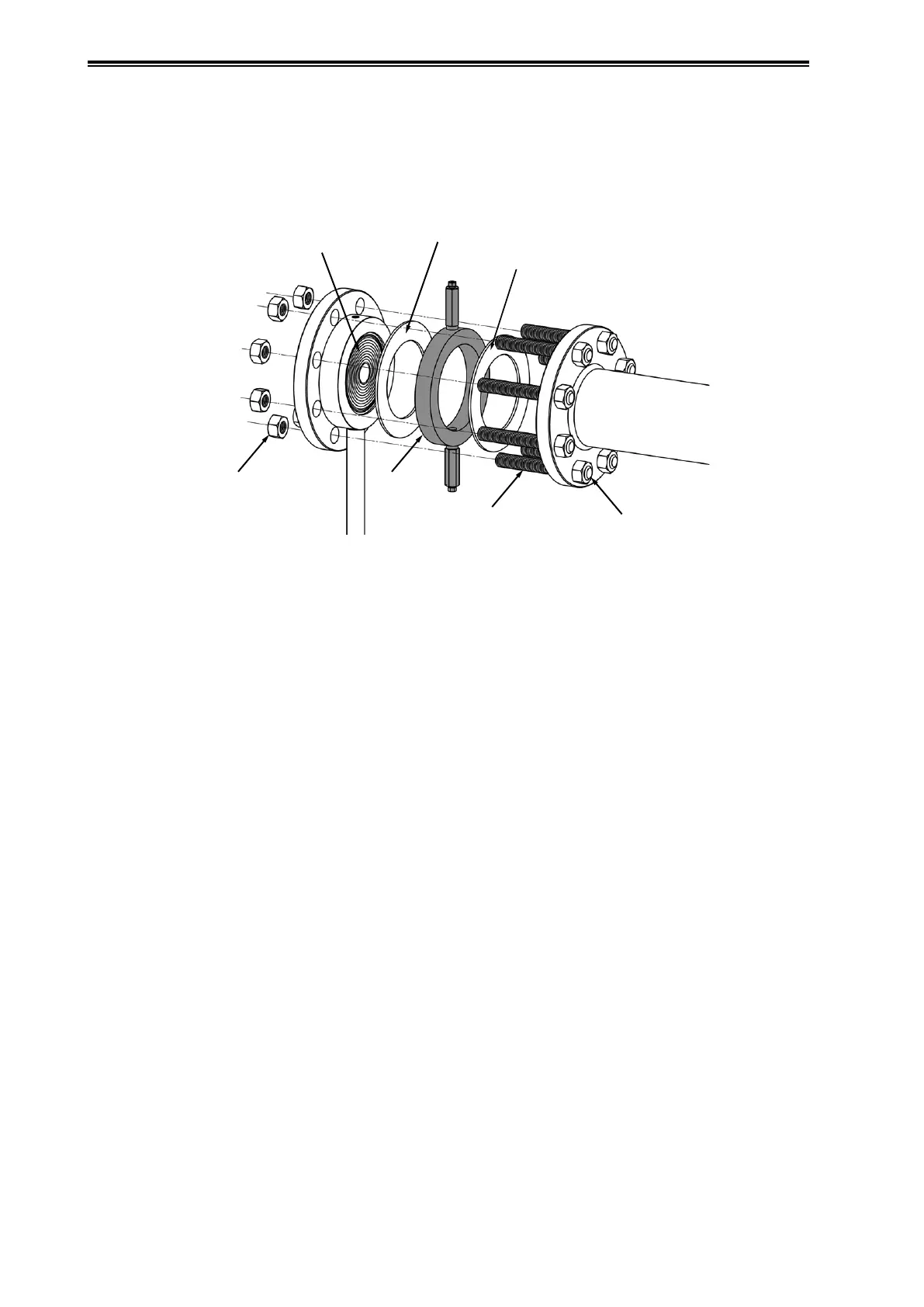

Figure 2-29. Example of flushing ring installation
Gasket (not included)
Gasket (not included)
Nut
(not included)
Nut
(not included)
Flushing
Ring
Threaded rod
(not included)
Diaphragm
