Y-encoder circuit board replacement
Ü IMPORTANT: This step is required only if the circuit board on the Y-encoder is blue. If the Y-encoder
has a black circuit board, skip ahead to the next step.
Replace the Y-encoder circuit board with the one in the package (see Parts List, item G) if the circuit board
is blue and does not have a 3-pin connector aached. It is held in place with one screw and ve connecng
pins.
To replace the Y-encoder
1. Unplug the stch regulator cable from the Y-encoder.
2. Remove the screw that holds the circuit board in
place with a small Phillips screwdriver.
3. Gently pull the circuit board outward toward the front of the quilng machine (the same direcon
the screw came out).

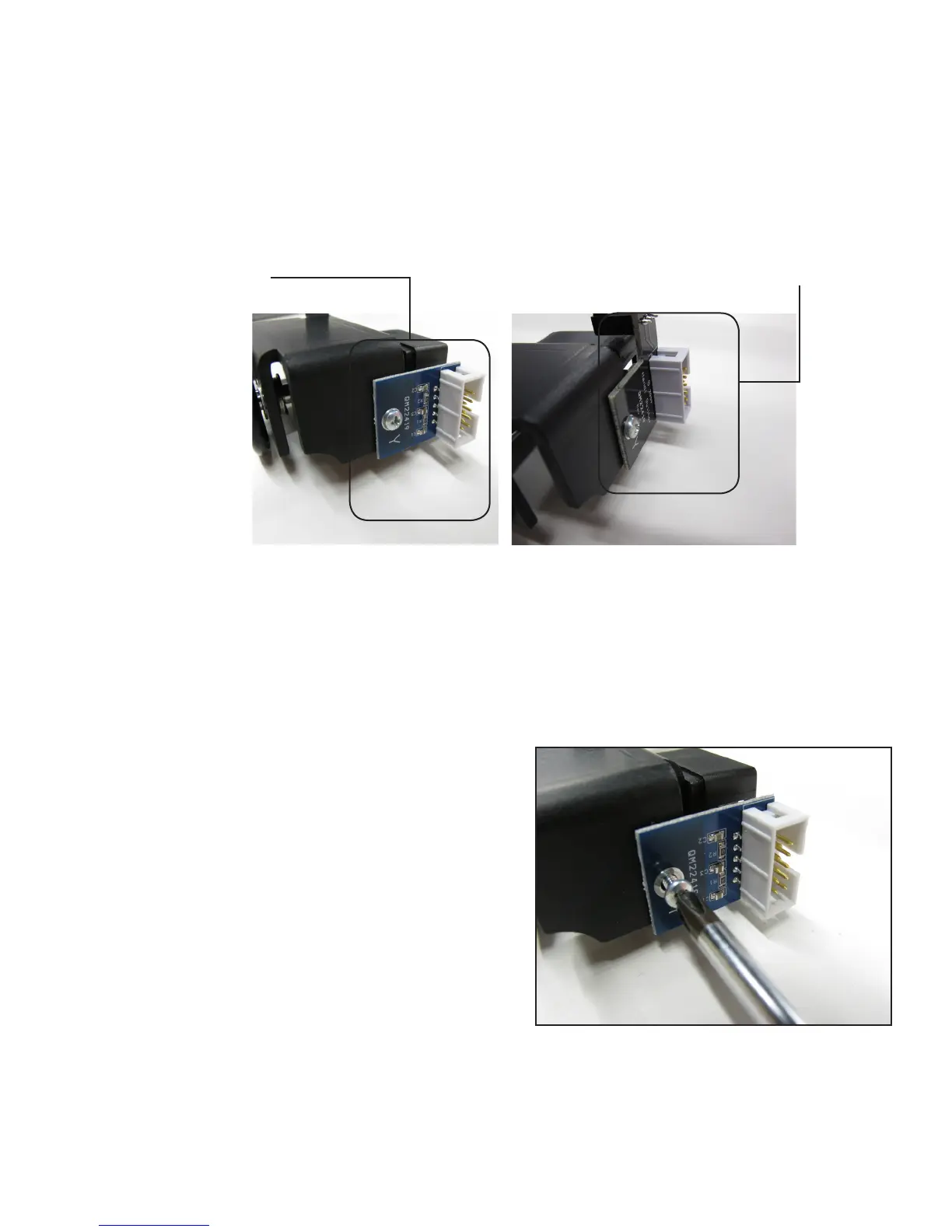

Replace this style
Y-encoder circuit board.
This style Y-encoder circuit board
does not need to be replaced.
