Configuration Using Barcodes

Balluff BVS HS-P Family

Industrial Handheld Barcode Readers

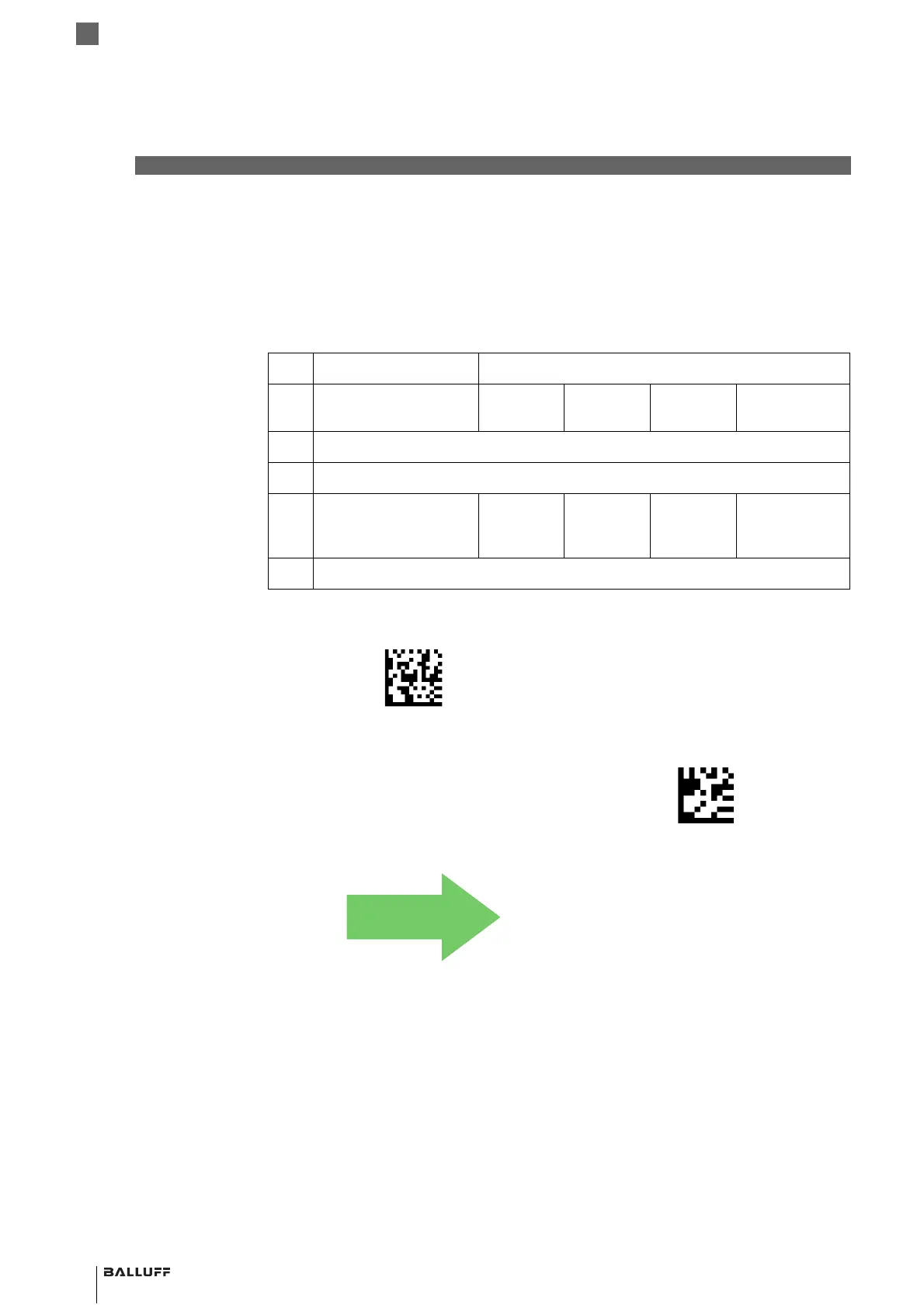

Code 11 Set

Length 1

This feature specifies one of the barcode lengths for Code 11 Length Control. Length 1 is the

minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.

Length includes the barcode’s check and data characters. The length can be set from 2 to 50

characters.

Table Code 11 Length 1 Setting Examples provides some examples for setting Length 1. See

page 249 for detailed instructions on setting this feature.

Code 11 Length

1 Setting

Examples

STEP ACTION EXAMPLES

Desired Setting (pad

with leading zeroes)

Characters

2 Scan ENTER/EXIT PROGRAMMING MODE

3 Scan SELECT CODE 11 LENGTH 1 SETTING

Scan Two Characters

From Appendix D:

Keypad

‘0’ and ‘2’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’

5 Scan ENTER/EXIT PROGRAMMING MODE

Select Code 11 Set Length 1 Setting

Make a mistake? Scan the CANCEL barcode

to abort and not save the entry string. You

can then start again at the beginning.

CANCEL

$CC1L1

DEFAULT

04 = Length 1 is 4 Characters
