Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Aztec Code Set
Length 1
Specifies one of the barcode lengths for Aztec Code Length Control. Length 1 is the minimum
label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters
can be set from 0001 to 3,832 characters in increments of 0001 (pad with zeroes).
See page 249 for detailed instructions on setting this feature.
Aztec Code Set
Length 2
This feature specifies one of the barcode lengths for Aztec Code Length Control. Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length
Mode. Characters can be set from 0001 to 3,832 characters in increments of 0001 (pad with
zeroes).
See page 250 for detailed instructions on setting this feature.

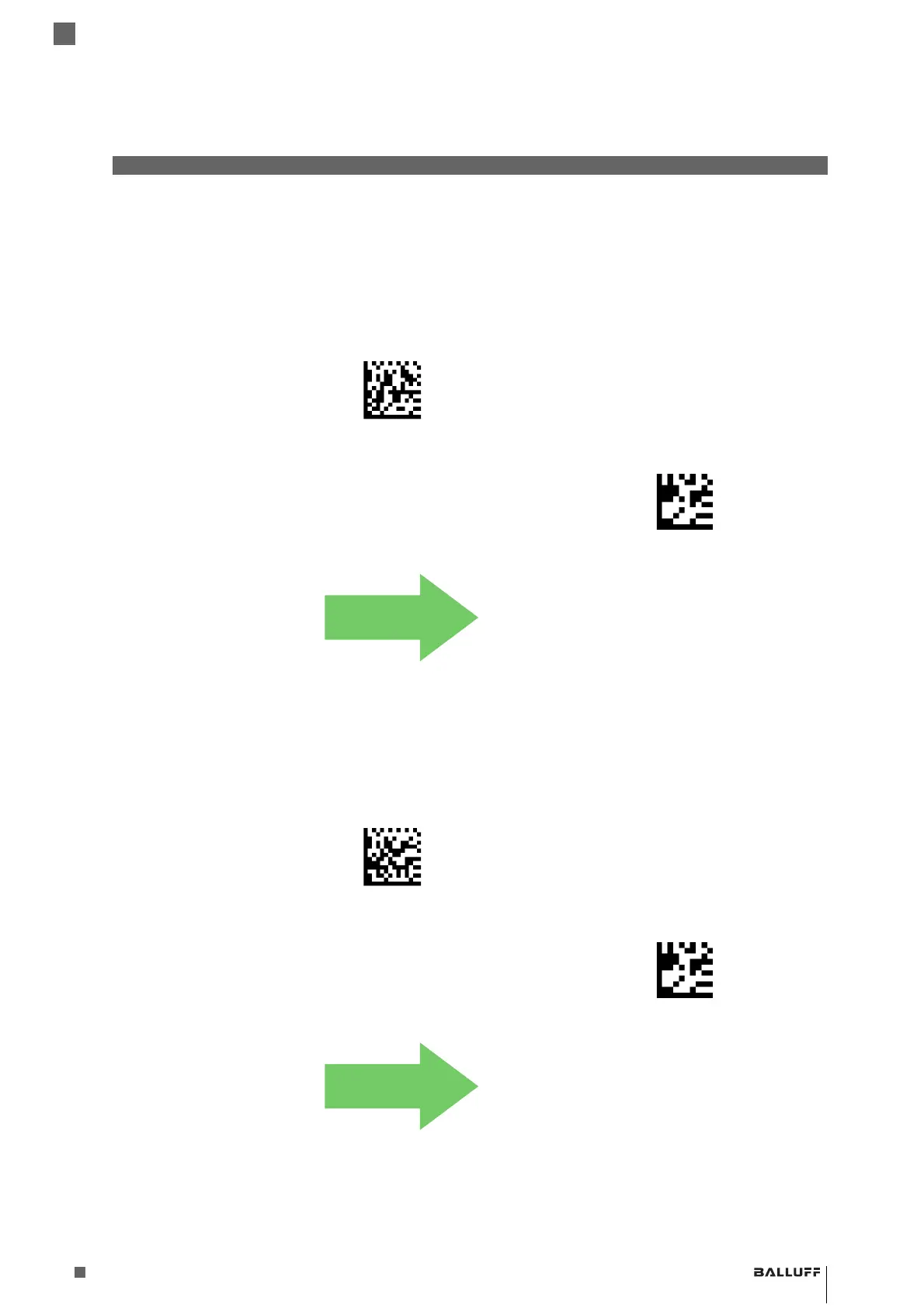

Select Aztec Code Length 1 Setting
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits from the Alphanumeric characters
in
Appendix D: Keypad representing your
desired character(s). End by reading the
ENTER/EXIT barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CAZL1
~
DEFAULT
0001 = Length 1 is 1 Character
Select Aztec Code Length 2 Setting
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits from the Alphanumeric characters
in
Appendix D: Keypad representing your
desired character(s). End by reading the
ENTER/EXIT barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CAZL2
~
DEFAULT
Length 2 is 3,832 Characters
