Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
PDF417 Set
Length 1
Specifies one of the barcode lengths for PDF417 Length Control. Length 1 is the minimum label
length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes
the barcode’s data characters only. Characters can be set from 0001 to 2,710 characters (pad
with zeroes) in increments of 01. Any value greater than 2,710 will be considered to be 2,710.
See page 249 for detailed instructions on setting this feature.
PDF417 Set
Length 2
This feature specifies one of the barcode lengths for PDF417 Length Control. Length 2 is the
maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length
Mode. Length includes the barcode’s check, data, and full-ASCII shift characters. The length
does not include start/stop characters. Characters can be set from 01 to 2,710 characters (pad
with zeroes) in increments of 01. Any value greater than 2,710 will be considered to be 2,710.
See page 250 for detailed instructions on setting this feature.

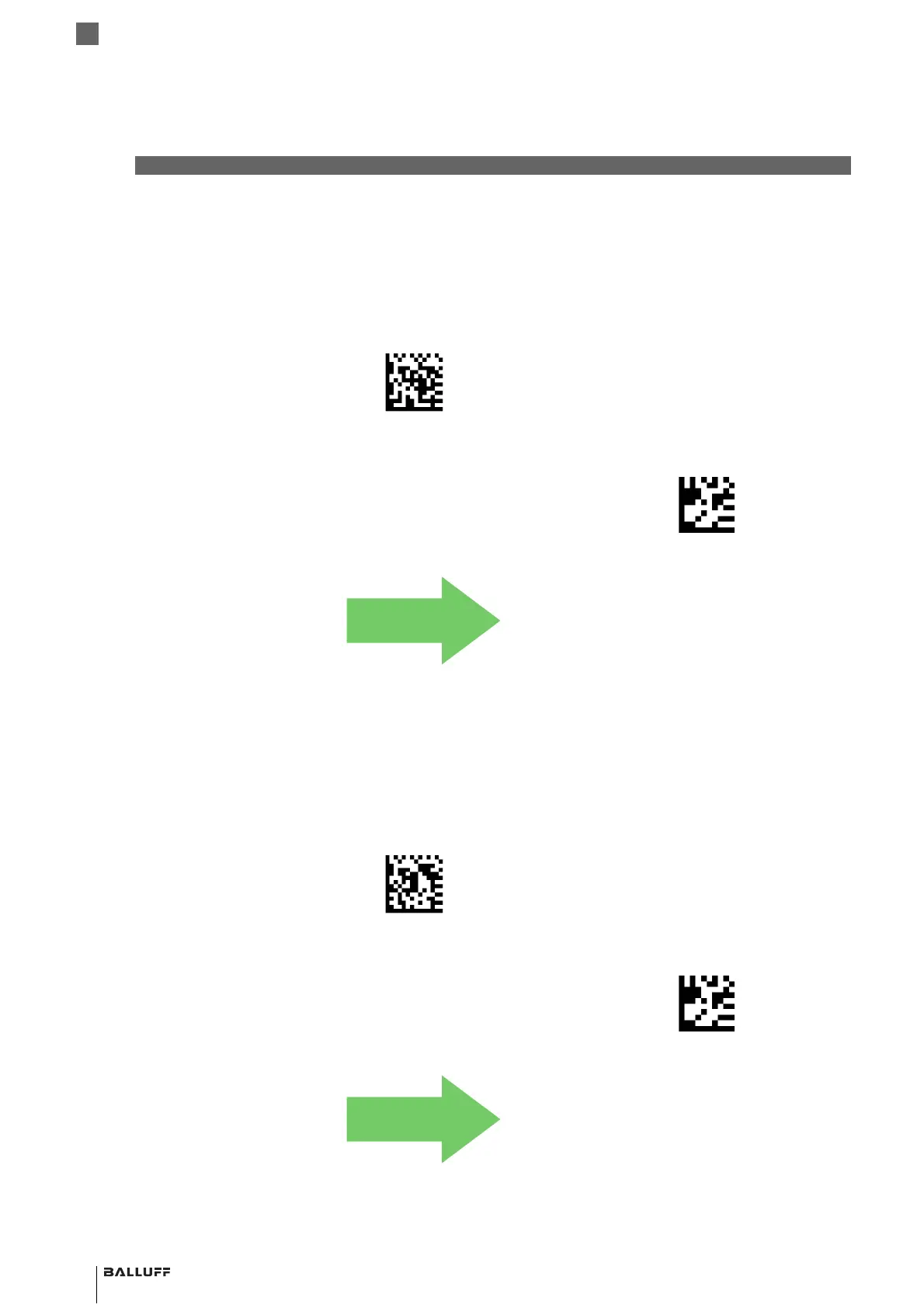

Select PDF417 Length 1 Setting
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits from the Alphanumeric characters
in
Appendix D: Keypad representing your
desired character(s). End by reading the
ENTER/EXIT barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CP4L1
~
DEFAULT
0001 = Length 1 is 1 Character
Select PDF417 Length 2 Setting
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits from the Alphanumeric characters
in Appendix D: Keypad representing your
desired character(s). End by reading the
ENTER/EXIT barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CP4L2
~
DEFAULT
Length 2 is 2,710 Characters
