Configuration Using Barcodes
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Micro PDF417
Length Control
This feature specifies either variable length decoding or fixed length decoding for this symbology.
Variable Length: For variable length decoding, a minimum and maximum length may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
Micro PDF417
Set Length 1
Specifies one of the barcode lengths for Micro PDF417 Length Control. Length 1 is the minimum
label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length
includes the barcode’s data characters only. Characters can be set from 0001 to 0366 charac-
ters (pad with zeroes) in increments of 01. Any value greater than 0366 will be considered to be
0366.
See page 249 for detailed instructions on setting this feature.

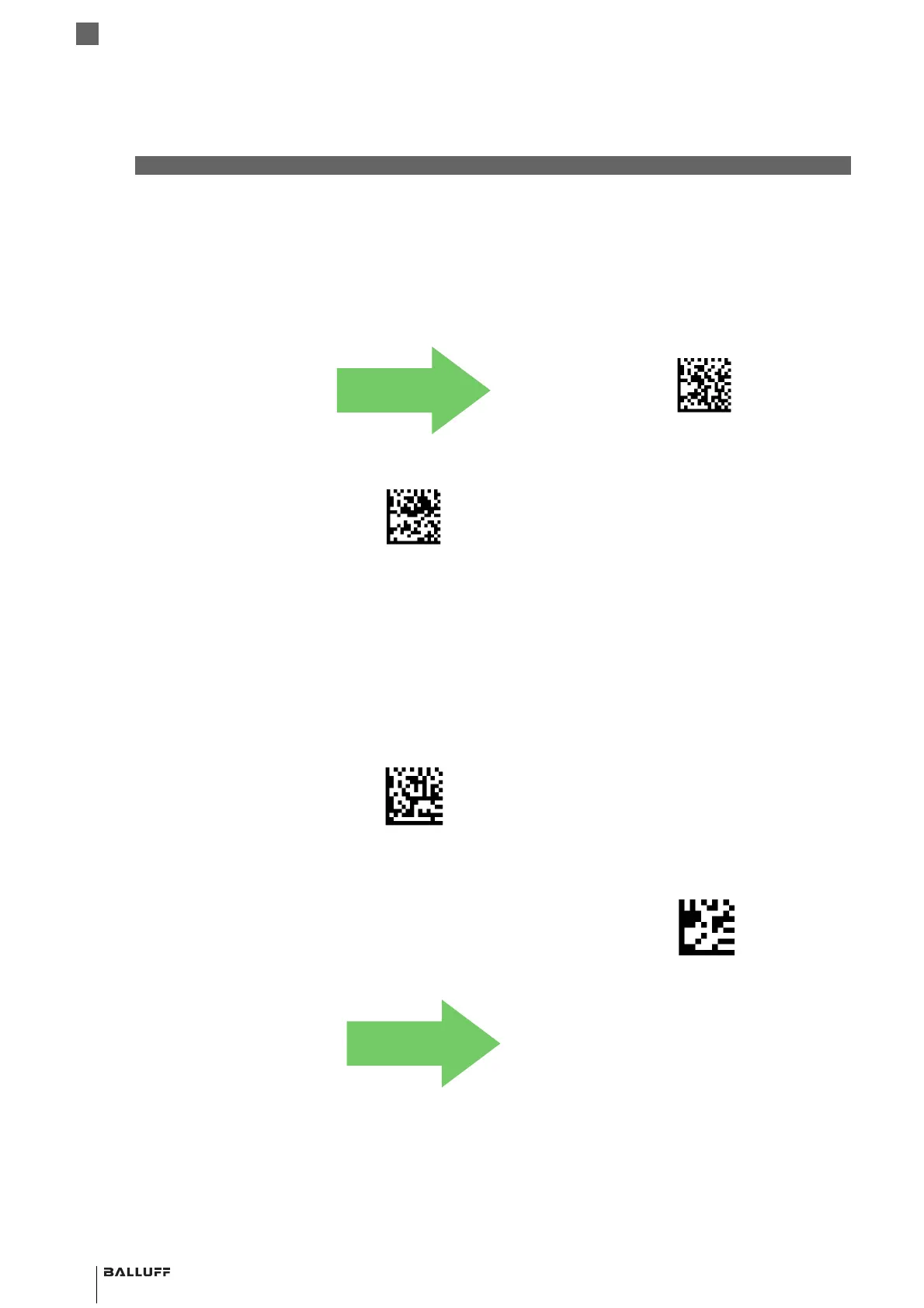

Micro PDF417 Length Control =
Variable Length
Micro PDF417 Length Control = Fixed Length
DEFAULT
MILC00(CR)
MILC01(CR)
Select Micro PDF417 Length 1 Setting
To configure this feature, scan the ENTER/
EXIT PROGRAMMING MODE barcode
above, then the barcode at left followed by
the digits from the Alphanumeric characters
in
Appendix D: Keypad representing your
desired character(s). End by reading the
ENTER/EXIT barcode again.
Make a mistake? Scan the CANCEL barcode
to abort and not save the entry string. You
can then start again at the beginning.
CANCEL
$CMIL1
~
DEFAULT
0001 = Length 1 is 1 Character
