2.4.5 Connecting and
Disconnecting
the Interface
Cable
The Base station can be connected to a Host by means of a multi-interface cable, which must be
simply plugged into the Host connector, visible on the front panel of the cradle.
To disconnect the cable, insert a paper clip or other similar object into the hole corresponding to
the Host connector on the body of the cradle. Push down on the clip while unplugging the cable.

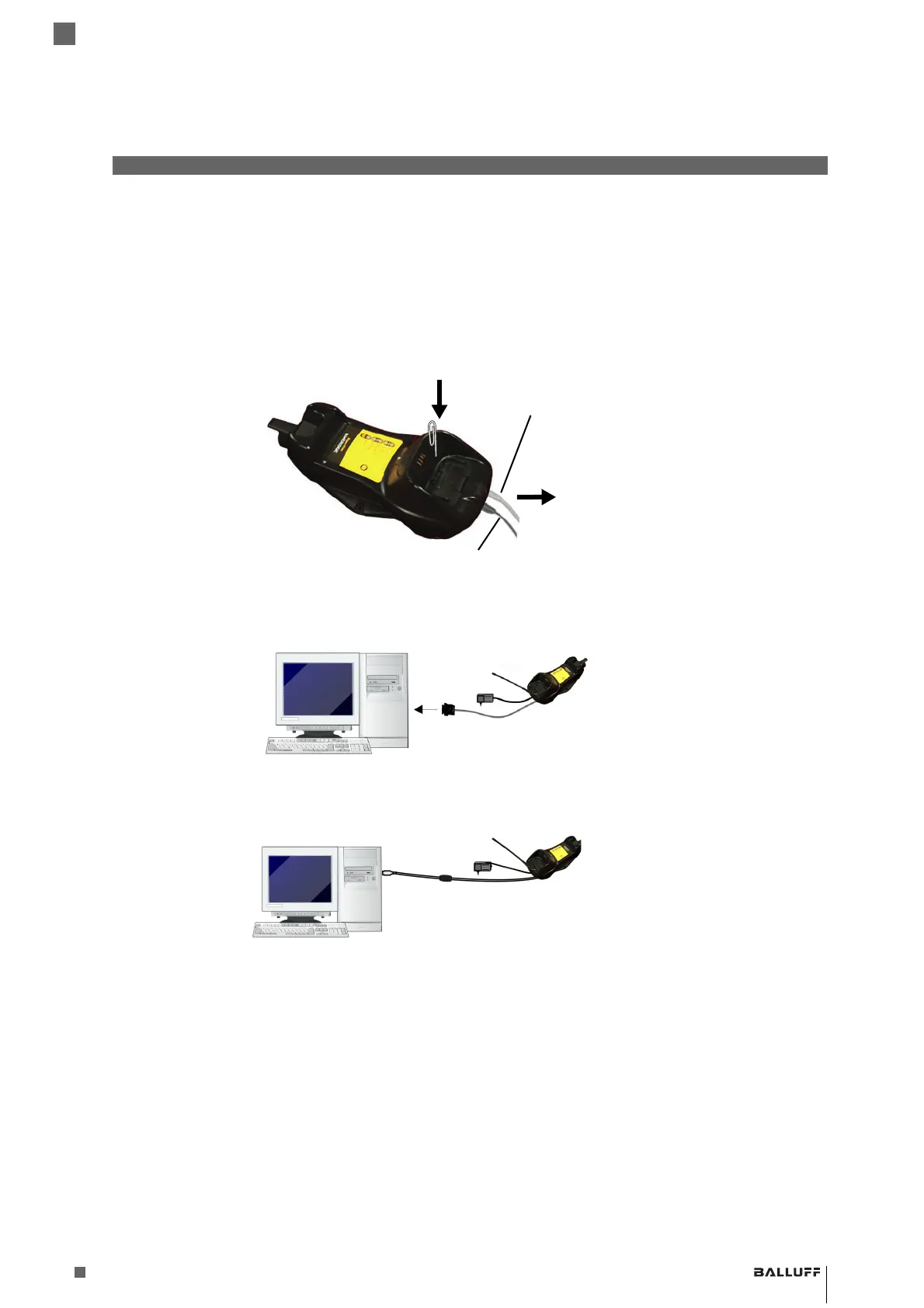

Refer to the following figures:
RS-232
USB*
*The power supply is optional, the cradle can be powered by the USB port. In this case the full
charging of an empty battery will take about 10 hours. For intense usage and/or when the system
is shut down during the night, the use of an external power supply is recommended.
Power
Interface Emulation to Host
Connecting/Disconnecting the Cable
