257
www.balluff.com
4
References
Balluff BVS HS-P Family
Industrial Handheld Barcode Readers
Label ID: Set
Individually Per
Symbology
To configure a Label ID individually for a single symbology:
1 Go to page 63 and scan the ENTER/EXIT barcode.
2 Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by
reading the appropriate barcode in the section
"Label ID Control" on page 63. Reference Fig-
ure 9: Label ID Position Options for Label ID positioning options if multiple identification fea-
tures are enabled.
3 Scan a barcode to select the symbology for which you wish to configure a custom Label ID
from the section
"Label ID Symbology Selection − 1D Symbologies" on page 63.
4 Determine the desired character(s) (you may choose up to three) which will represent the
Label ID for the selected symbology.
5 Turn to the ASCII Chart on the inside back cover of this manual and find the equivalent hex
digits associated with your choice of Label ID. For example, if you wish to select an equal sign
(=) as a Label ID, the chart indicates its associated hex characters as 3D. Turn to
Appendix D:
Keypad, starting on page 301 and scan the barcodes representing the hex characters deter-
mined. For the example given, the characters ‘3’ and ‘D’ would be readed. More examples of
Label ID settings are provided in
Table Label ID Examples.
6 Scan the ENTER/EXIT barcode to exit Label ID entry.
7 Scan the ENTER/EXIT barcode once again to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

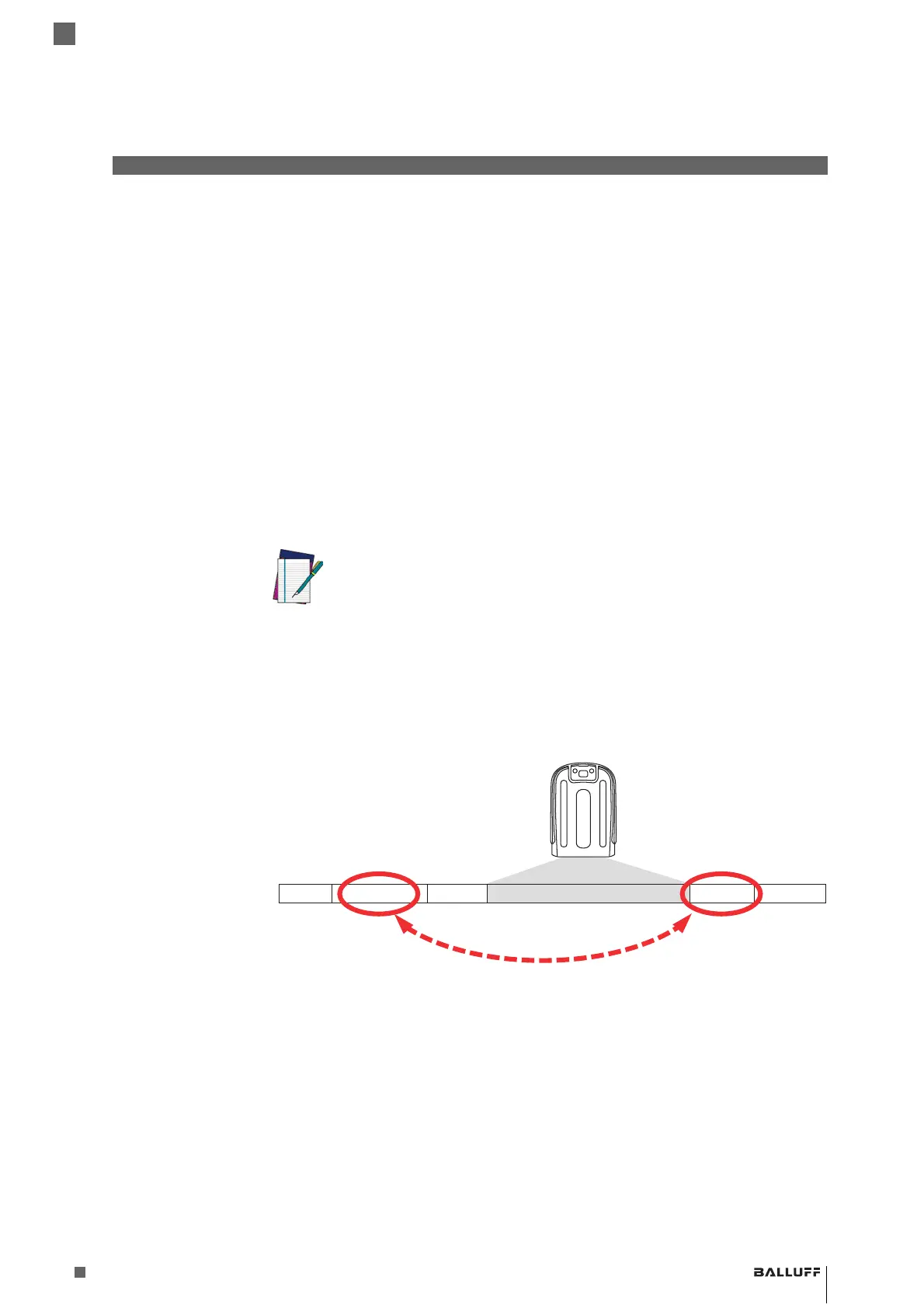

Figure 9: Label ID Position Options
NOTE
If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
