9.16 Installing a HDD into the ICMP
This procedure assumes that the HDD slot of the ICMP is empty. If not, see procedure “Removing a
HDD from the ICMP”, page 102.
CAUTION: Always use a new empty spare part HDD approved by Barco to replace a malfunction
HDD. Do not use a HDD from another ICMP HDD set.
CAUTION: Always make sure that all HDDs in the ICMP HDD set have the same storage capacity.
See label on top of the HDD to know the storage capacity.
How to install a HDD ?
1. Ensure that the projector is switched off.
2. Prepare the HDD for insertion by moving the latch towards the left and push the unlock button to open the
handle.

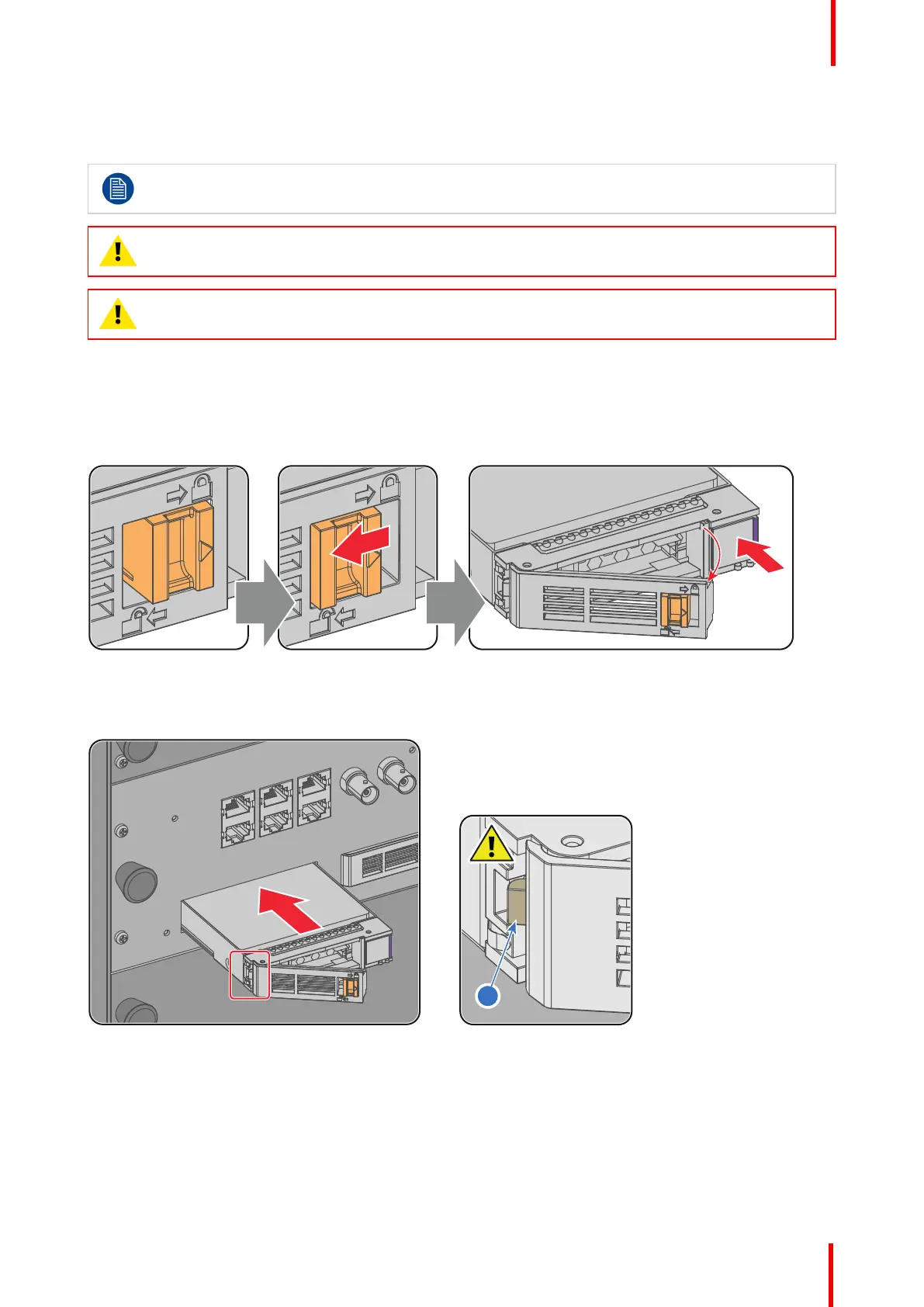

Image 9-18
3. Insert the HDD into the HDD slot. Ensure that the handle is sufficiently open so that the hook (reference 1) of
the handle can pass the front plate of the ICMP.
Image 9-19
4. Push the HDD completely and firmly inside its slot, close the handle, and move the latch towards the right.
