R5906788-03 Thor series70
8.1 Introduction
General
The Input & Communication side of the Thor series projector consists of a Local Keypad integrated into the
projector housing and a card cage with three slots. The rear side of the projector is equipped with a tail light
which reflects the status of the projector. The laser status light is located on the top side of the projector.
The projector card cage is equipped with an ICMP. See illustration below. Note that all information about the
ICMP is gathered into one separated chapter: “ICMP”, page 77.

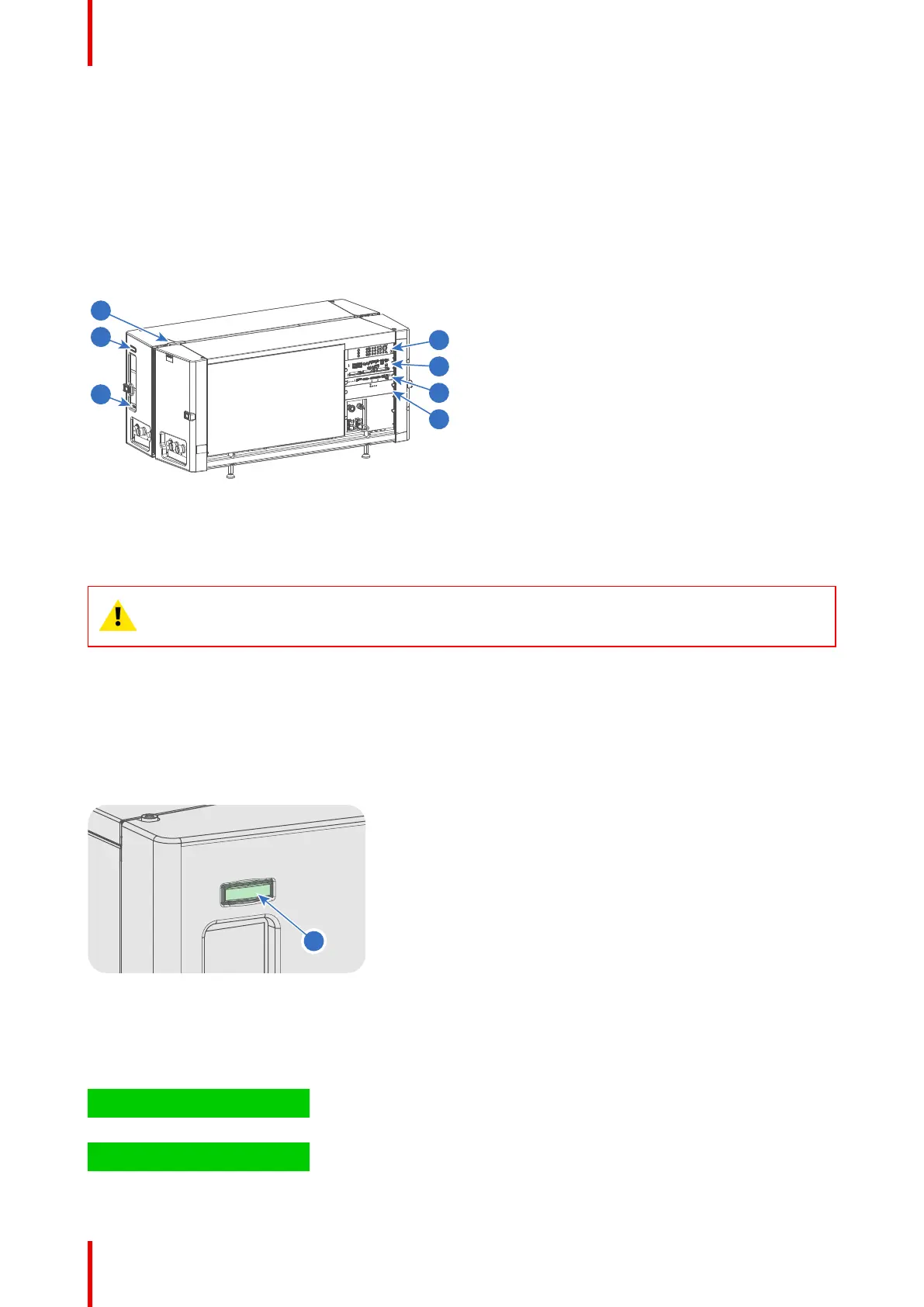

Image 8-1
1 Lasers status light.
2 Projector status light.
3 Communication port with Chillers.
4 Local keypad.
5 ICMP.
6 Barco Cinema Controller.
7 Switch Mode Power Supply (SMPS) for projector
electronics (not lasers)
CAUTION: A unit may only be removed from the card cage by qualified service personnel.
Removing one of the boards (except for the Cinema Controller or SMPS) will result in an
authorization request upon starting.
8.2 Projector Status
About the projector Status Light
The projector Status Light is located at the rear side of the projector (reference 1 Image 8-2). The projector
Status Light is a real time indicator of the projector condition.
Image 8-2
Status overview
Depending on the condition of the projector the status light may have 4 colors: Green, Yellow, Red or Blue.
Each color represent a different state:
Blinking Green Projector is booting up.
Green Projector is running normally.
Input & Communication
