R5906788-03 Thor series124
12.1 Convergence controls
Extended control knobs
As the DMD of the blue channel is not accessible in the projector, it remains fixed. Therefor the image of this
DMD will be taken as reference. Red and green may be aligned onto blue when a small convergence drift is
recognized. The red and green channels have pivot plates equipped with three extended control knobs for
convergence adjustment. The control knobs are numbered from 1 to 6 and have the same color as the
channel which they affect.
To access the control knobs the left side cover of the projector and a small cover plate in front of the control
knobs have to be removed.

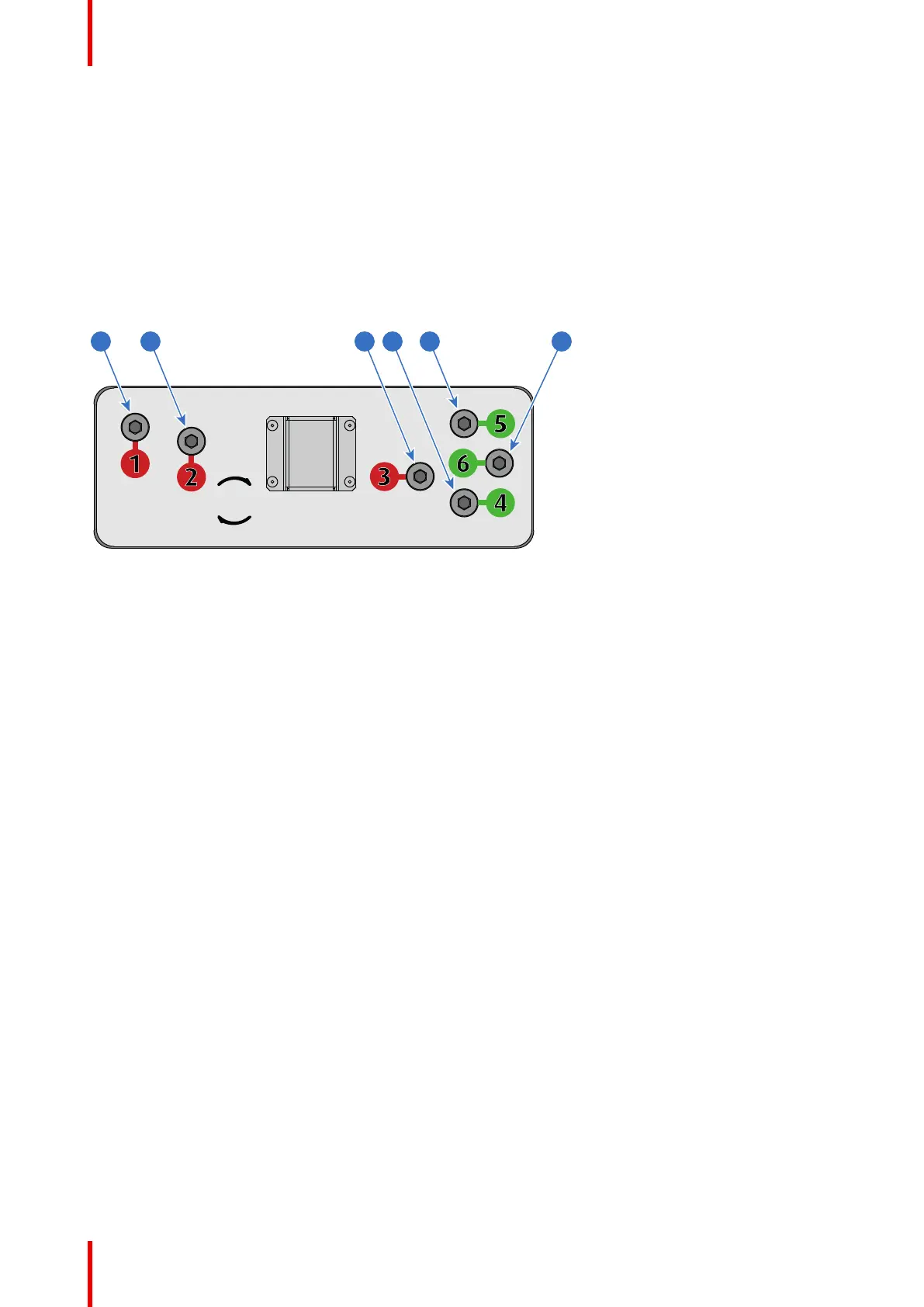

Image 12-1
1 Red channel, control knob number 1.
2 Red channel, control knob number 2.
3 Red channel, control knob number 3.
4 Green channel, control knob number 4.
5 Green channel, control knob number 5.
6 Green channel, control knob number 6.
