R5906788-03 Thor series 57
Required tools
No tools required.
Required parts
Short power link cable with plug type C13/C14
How to loop through the power?

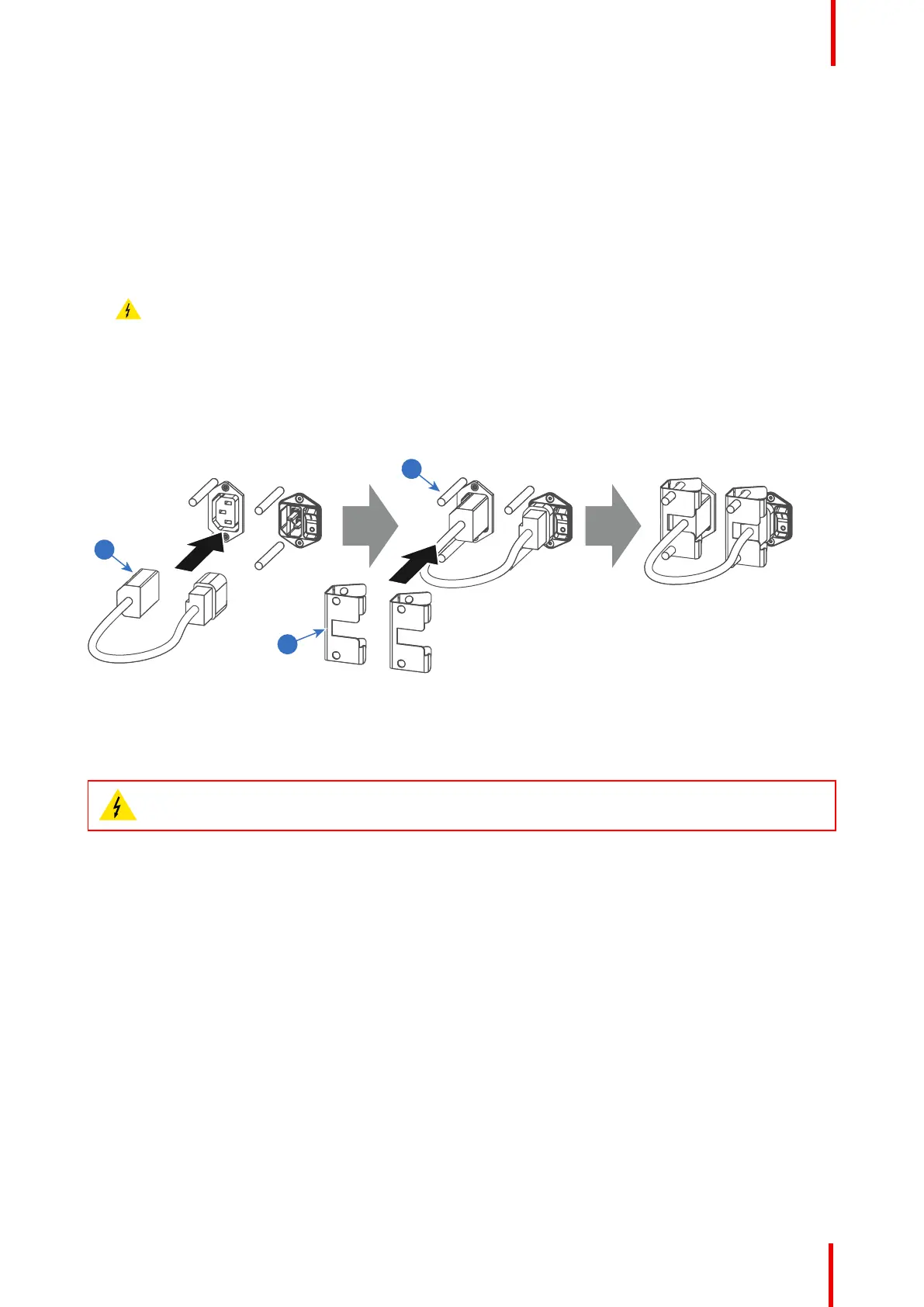

1. Plug in the short power cable (reference 1 Image 6-18) which was delivered with the projector.
Warning: Always use the Barco short power cable which is delivered with the projector.
2. Secure both plugs of the short cable with a fixation spring (reference 2 Image 6-18). Handle as follow:
• Squeeze the fixation spring together.
• Slide the fixation spring on the fixation pins (reference 3 Image 6-18) while squeezing together and push it
against the power plug.
• Release the fixation spring.
Image 6-18
6.10 Connecting a UPS to the projector electronics
WARNING: Only use UPS units which are suitable for the Thor series series projector. See chapter
“Installation requirements” for more information about the requirements of the UPS.
Required tools
No tools required.
How to connect the UPS
1. Install the UPS according to the instructions of the manufacturer and the local regulations.
2. Connect the power output cord from the UPS unit to the UPS inlet socket of the projector (right socket).
Physical installation
