R5906788-03 Thor series116

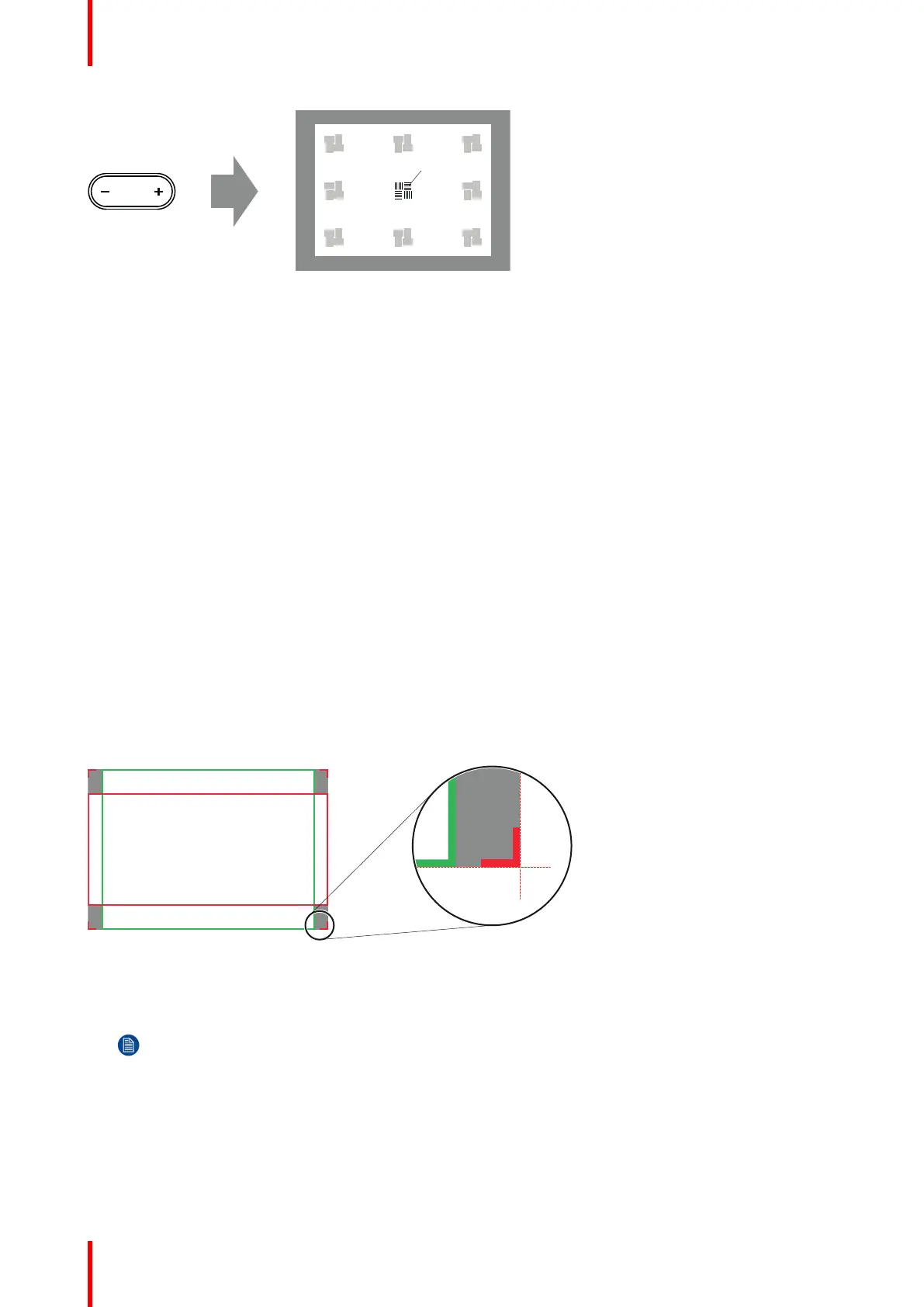

Image 11-9
5. Repeat from step 1 until the projected focus pattern is as sharp as possible in the center, left, right, top and
bottom of the screen.
6. Proceed with the procedure “Fixation of the Lens Holder front plate”, page 116.
11.3 Fixation of the Lens Holder front plate
When fixing the Lens Holder front plate
After performing the procedure for Scheimpflug adjustment or Back Focal Length adjustment the Lens Holder
front plate must be secured in such a way that it doesn't disturb the result of the adjustment.
Required tools
• Allen wrench 3 mm
• Nut driver 10 mm
• Nut driver 13 mm
How to fix the Lens Holder front plate?
Start the fixation as follows (steps must be followed strictly) :
1. Project the Outline / Aspect test pattern (depending on projector type).
2. Zoom the projected image until the edges of the projected test pattern matches with the edges of the
projection screen.
Image 11-10
3. Turn in the three set screws indicated with reference 11 Image 11-11 without disturbing the projected image.
Tighten lightly . Do not turn in the set screw at the lower left of the Lens Holder!
Note: Ensure that the edges of the projected test pattern remain in place on the screen. Any
movement of the image will affect the Scheimpflug adjustment.
4. Fasten the lock nut (reference 21 Image 11-11) of the three set screws. Use a 10 mm nut driver. Ensure the
image doesn't move.
Scheimpflug
