R5906788-03 Thor series 33
Touch Panel power/data customized cable

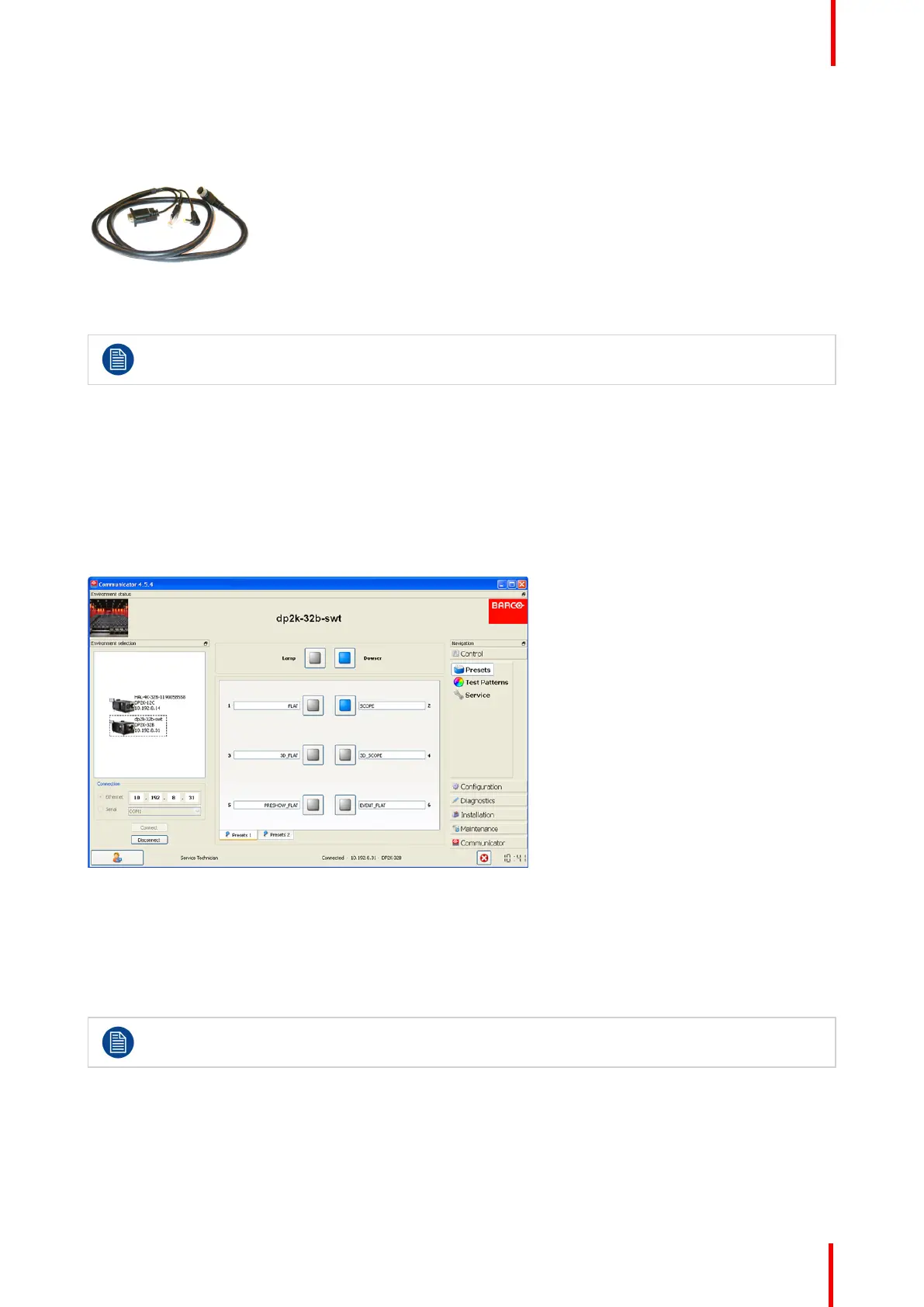

Image 3-12: Customized cable to connect Touch Panel interface with the Barco projector.
The Communicator Touch Panel has its own user guide which latest version is available on the
Barco website.
3.5 Communicator PC version
Configuration tool
A uniquely powerful and easy to use configuration tool for the Barco cinema projector. This Communicator
software for PC provides all the necessary tools and only those tool necessary for the connected projector to
setup and control this projector. A comprehensive array of easy to access menu pages provide the projectors
digital input, output and screen display via a combination of simple buttons and displays.
Image 3-13
Quick and Easy configuration
Clearly indicated tab pages allow the control of Projector connection, configuration, test, color calibration and
configuration with an existing automation system. All actions can be activated by a simple click. Depending on
the user level, functions are enabled or disabled in the software. The enabled functions are only accessible via
a password entry and that prevents misalignment once everything is correctly aligned.
The Communicator PC version has its own user guide which latest version is available on the Barco
website.
