R5906788-03 Thor series32

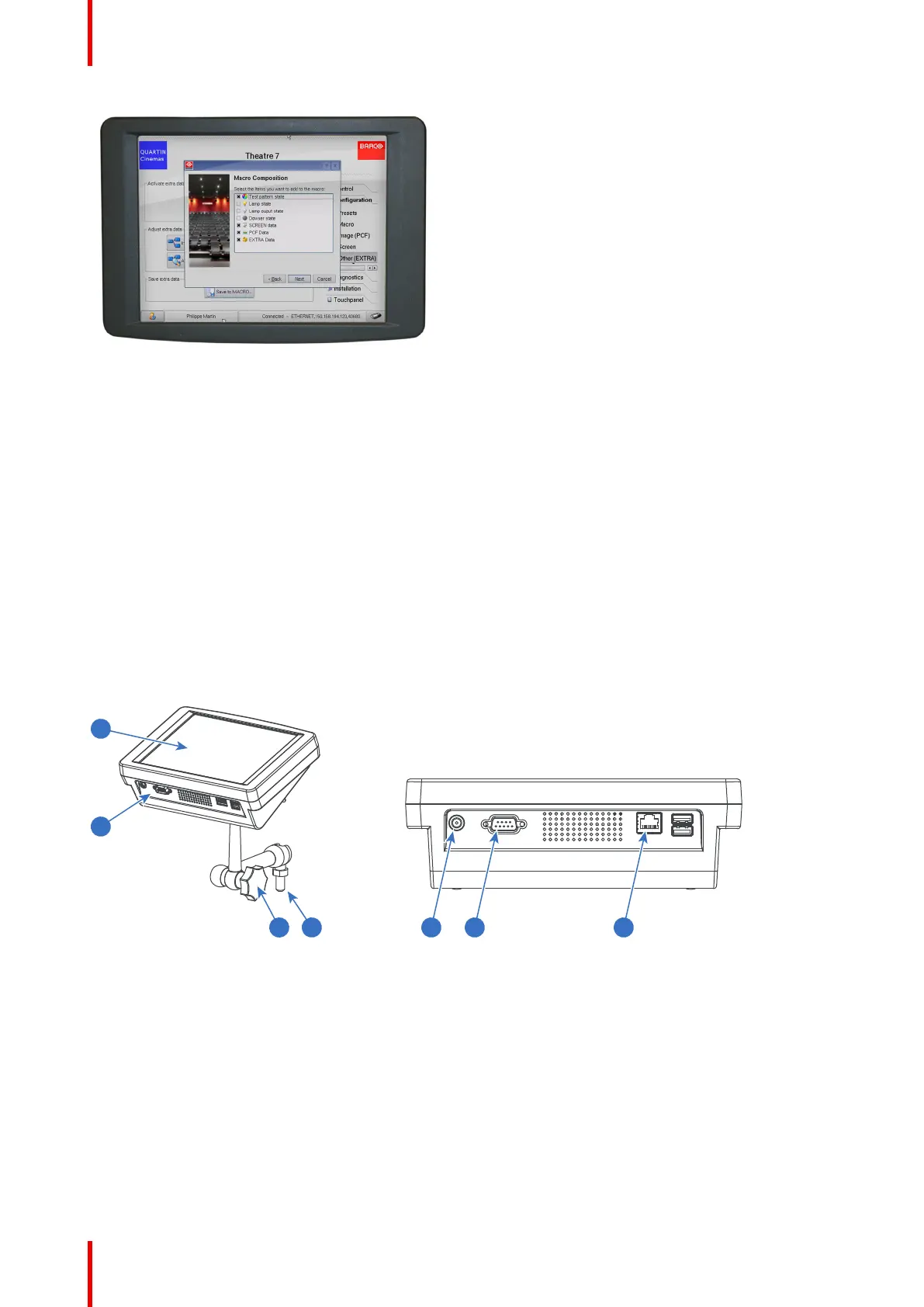

Image 3-10
Flexible Touch Panel interface
The Touch Panel interface can be mounted upon a swivel arm which easily fits on top of the Thor series. One
central locking mechanism of the swivel arm allows instant fixation of the Touch Panel interface in any
position.
The Touch Panel interface can also be installed further away from the Thor series. For this purpose an
Ethernet cable up to 50 meter can be used to realize a direct data communication between the Thor series
and the Communicator Touch Panel.
The Touch Panel interface can also be connected via a Local Area Network (LAN) in the same way as the
Thor series. In this configuration both devices can communicate with each other as well.
The Touch Panel interface requires a voltage supply +12 VDC and 1,5 ampere. Note that the Thor series has
a 12 VDC output which can be used to power up the Touch Panel interface. Nevertheless, the use of a
separate +12 VDC adaptor (1,5 ampere minimum) is required in case the Touch Panel interface is installed
more then a few meters away from the Thor series.
Parts location of the Touch Panel interface
Image 3-11
1 Touch screen
2 Communication panel
3 Knob to operate central swivel clamp
4 Base of swivel arm
5 Power input 12 VDC, 1.5A
6 RS232 port (sub-D)
7 Ethernet port (RJ45)
