R5906788-03 Thor series 129

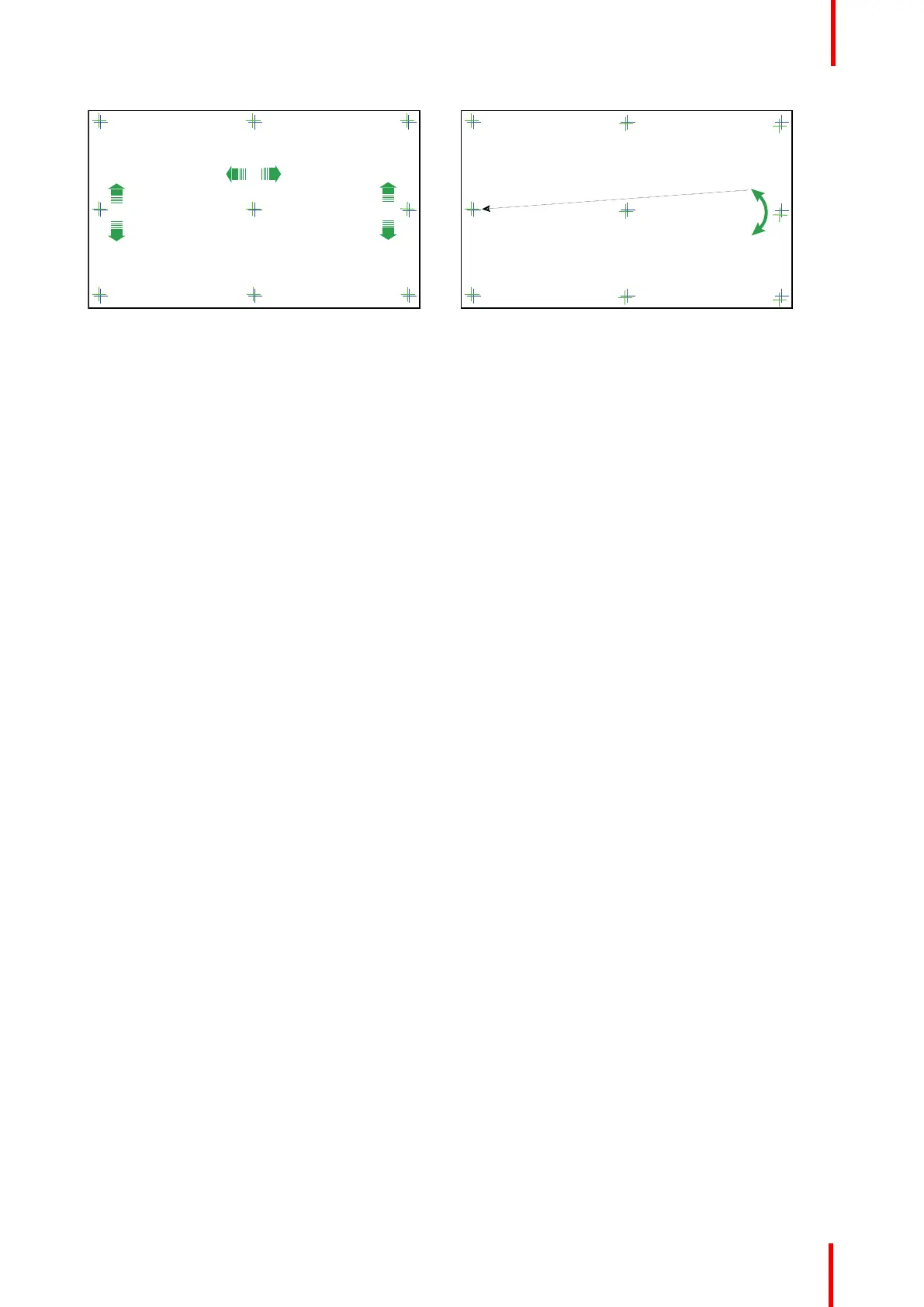

Image 12-8
4. Repeat from step 1 until full coincidence is obtained of the GREEN pattern in the center, left and right of the
projected image.
5. To adjust the red pattern. See procedure “Converging the red pattern onto the blue pattern”, page 127.
6. When the red and green pattern are overall aligned with the blue reference pattern install the cover plate of the
convergence control knobs and the projector left side cover.
