R5906788-03 Thor series 167
GPI 5-8
Definition
RJ-45 pin
EXT_GPIN_8_P 7
EXT_GPIN_8_N 8
About 568A and 568B on an Ethernet connector RJ-45
TIA/EIA-568A and -568B are two standards for connecting Category 3 and Category 5 wire to connectors.
Both are appropriate for high speed data, though 568B is somewhat more common for installed wiring and
568A is more common in jumpers. There is no performance advantage either way. The only real difference
between the two is the order in which the pairs are used (orange and green).

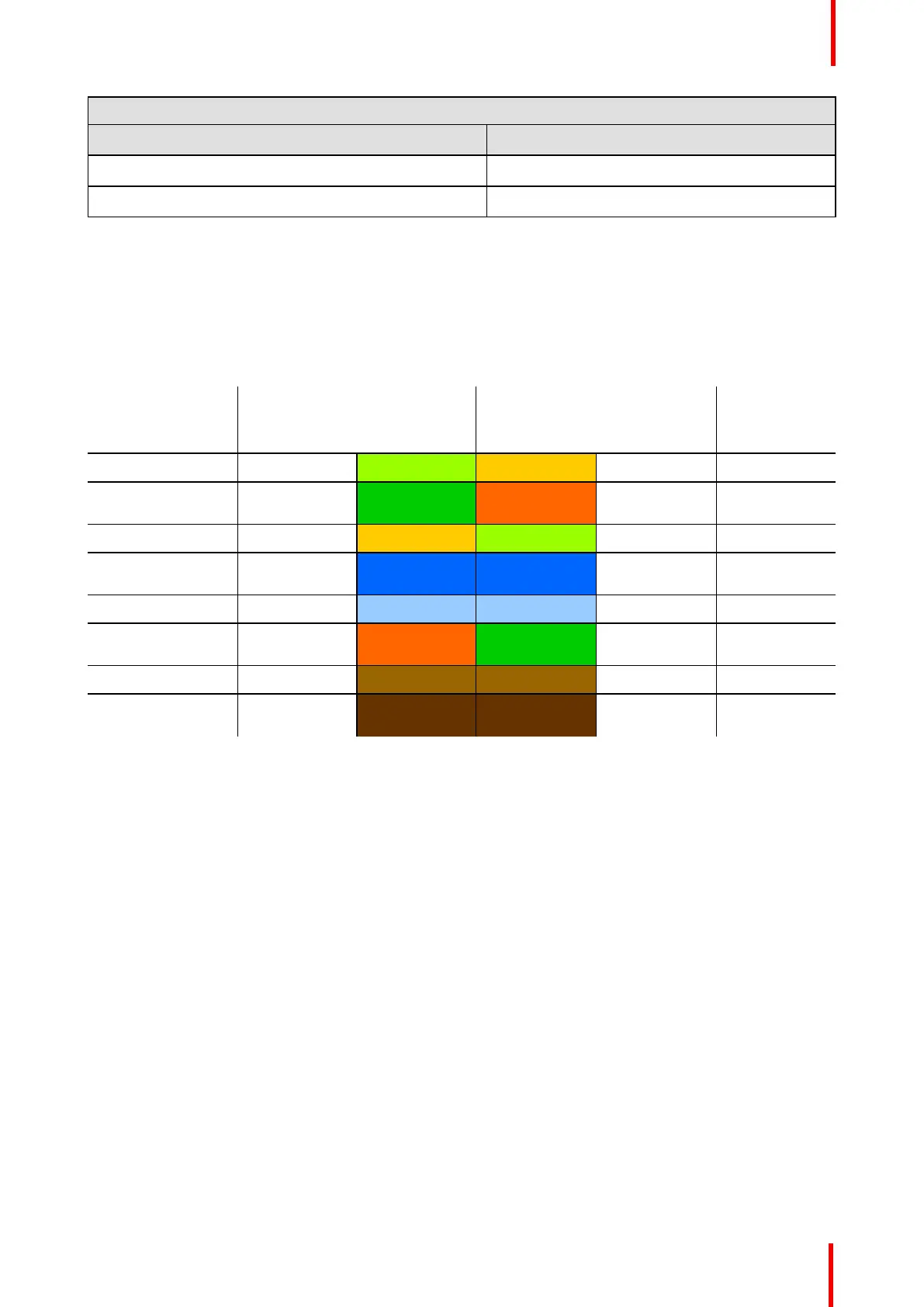

Hold a cable as if to plug it into a wall jack, the locking tab down (contacts facing you). The contacts are
numbered 1-8 from left to right. Here's what you will see:
RJ-45 Pin Number
(Left >Right
copper side)
568A 568B AES -1-8
1 White/Green White/Orange AES 1&2 +plus
2 Green Orange AES 1&2
+minus
3 White/Orange White/Green AES 3&4 +plus
4 Blue Blue AES 5&6
+minus
5 White/Blue White/Blue AES 5&6 +plus
6 Orange Green AES 3&4
+minus
7 White/Brown White/Brown AES 7&8 +plus
8 Brown Brown AES 7&8
+minus
568A and 568B may be used interchangeably in a system SO LONG AS both ends of a given cable are
terminated the same way.
568A + 568B wiring is a crossover cable.
568A + 568A wiring is a straight cable.
568B + 568B wiring is a straight cable.
The mapping of the channels is done according to the Ethernet wiring scheme and gives us 100 Ohm per pair.
Pin configurations
