Bartec BCS 3600ex Series User Manual

4 Product description
Handscanner
BCS 3600
ex
series
20 / 106
Subject to technical modifications
Revision A / 04/2019
4.2 Possible system configurations
4.2.1 Corded hand-held scanner BCS 3608
ex
-NI / BCS 3608
ex
-IS with universal supply
module

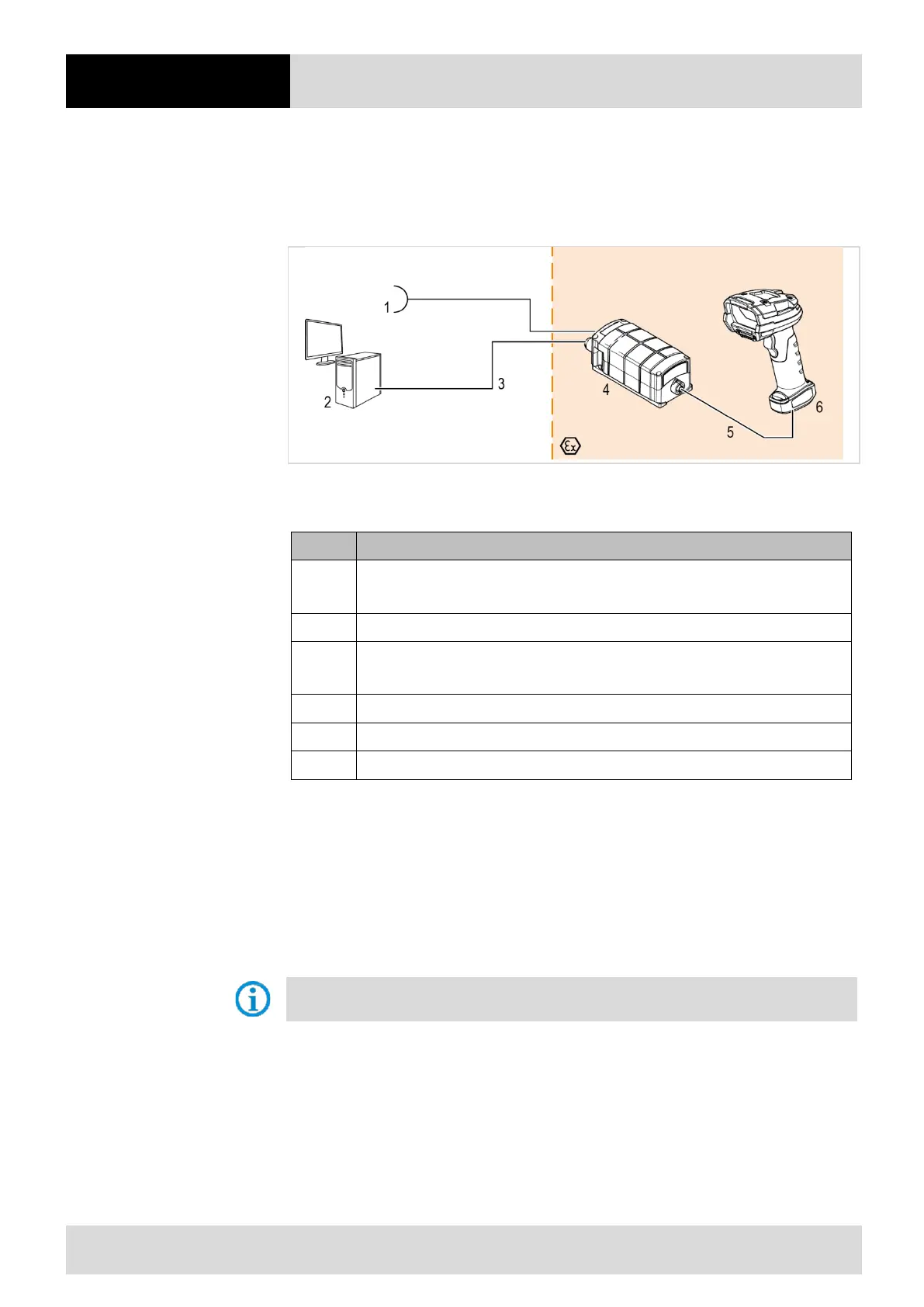

Figure 2 BCS 3608
ex
-NI / BCS 3608
ex
-IS hand-held scanner with universal supply module in a potentially
explosive atmosphere
Pos.
Description
1
Power supply (230 V
AC
or 24 V
DC
for Zone 2/22 and Zone 1/21,
24 V
DC
only for Div 2)
2
Host PC
3
Data cable host PC – universal supply module (RS 232, RS 422, RS 485 or USB)
 this cable has to be provided by the customer
4 Universal supply module for hand-held scanners
5 Connection cable BCS 3608
ex
-NI / BCS 3608
ex
-IS
6
Hand-held scanner BCS 3608
ex
-NI / BCS 3608
ex
-IS
Table 14 Description of the needed components to build the connection between BCS 3608
ex
-NI / BCS 3608
ex
-
IS corded hand-held scanners with universal supply module
The universal supply module can be operated in a potentially explosive atmosphere. The universal
supply module is used for data transfer and power supply. The power source for the universal supply
module and the system to which the data are to be transferred must lie outside the potentially explosive
atmosphere.
3 different cables can be used to connect the hand-held scanner to the universal supply module (see
table 13). The universal supply module and connection cables are not included with delivery.
The universal supply module for US and Canada can only be used with DC 24 V.
