Bartec BCS 3600ex Series User Manual

Handscanner
BCS 3600
ex
series
4 Product description
Subject to technical modifications
Revision A / 04/2019
21 / 106
4.2.2 Corded hand-held scanner BCS 3608
ex
-NI with HMI (only Zone 2 and 22) and HMI
limiting cable*

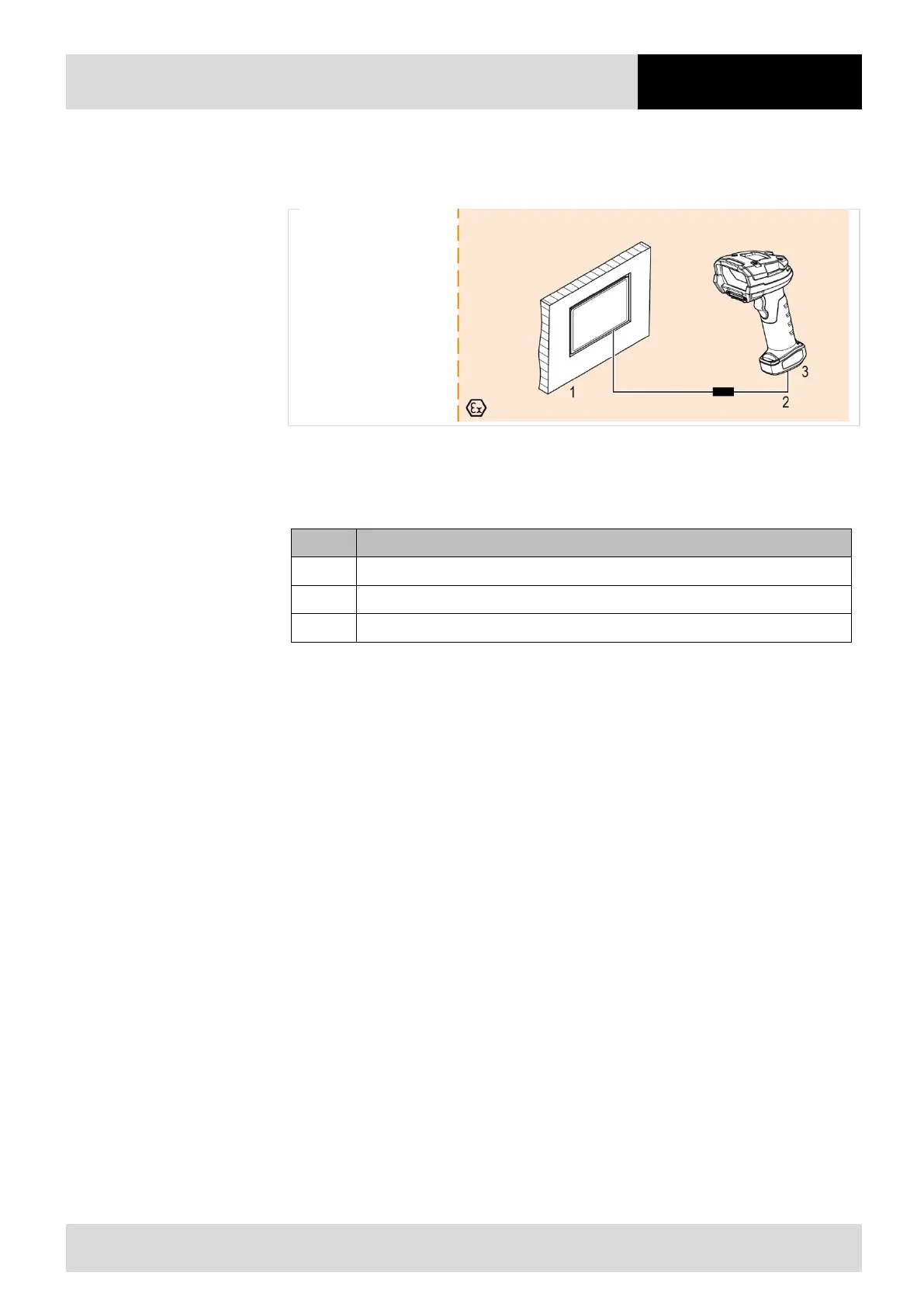

Figure 3 Hand-held scanner BCS 3608
ex
-NI / BCS 3608
ex
-IS with HMI and HMI limiting cable
* Internal power supply ate the HMI USB module must be at least 500 mA
Pos. Description
1
HMI (approved for a potentially explosive atmosphere)
2
HMI Limiting cable (B7-A2Z0-0041 or B7-A2Z0-0054)
3 Hand-held scanner BCS 3608
ex
-NI / BCS 3608
ex
-IS
Table 15 Description of the needed components to build the connection between corded hand-held scanner
BCS 3608
ex
-NI with HMI (only Zone 2 and 22) and HMI limiting cable
The limiting cable that is connected to the HMI is used for data transfer and power supply. This
connection is only approved for Zone 2, 22 and Division 2.
