Bartec BCS 3600ex Series User Manual

4 Product description
Handscanner
BCS 3600
ex
series
26 / 106
Subject to technical modifications
Revision A / 04/2019
4.3.2 Contacts / cables
The function is only guaranteed if the cables you connect for your configuration have been specified
by BARTEC (see system overview, Chapter 15.2).

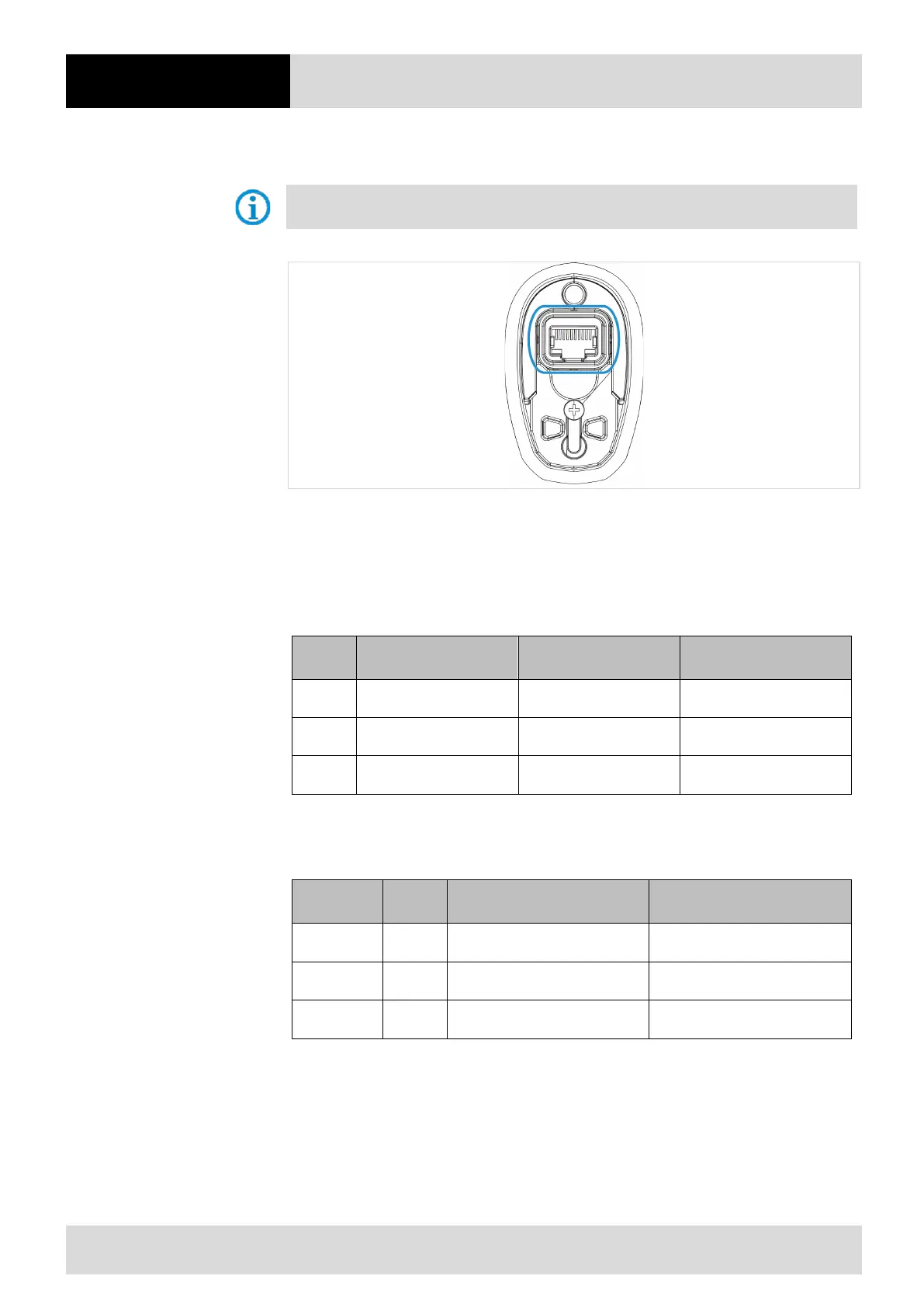

Figure 8 External contact on corded hand-held scanner
1. Connection of hand-held scanners to a universal supply module
The Hand-held scanners BCS 3608
ex
-NI and BCS 3608
ex
-IS can be connected to the following
universal supply module:
Version
BARTEC Order No.
Zone 1 / Division 1
BARTEC Order No.
Zone 2 / Zone 22
BARTEC Order No.
Division 2
Bluetooth Coming Soon B7-A2Z0-0043 B7-A2Z0-0043US
Cable Coming Soon B7-A2Z0-0042 B7-A2Z0-0042US
HMI Coming Soon - -
Table 20 Universal supply module
The hand-held scanners BCS 3608
ex
-NI and BCS 3608
ex
-IS can be connected by the following cables
to the universal supply module:
Version Length
BARTEC Order No.
Zone 1 / Division 1
BARTEC Order No.
Zone 2 / Zone 22
Plain 1.9 m 17-A1Z0-0015 B7-A2Z0-0037
Plain 4.5 m 17-A1Z0-0016 B7-A2Z0-0038
Spiral 2.7 m 17-A1Z0-0017 B7-A2Z0-0039
Table 21 Connection cable for hand-held scanner BCS 3608
ex
(assembled) to the universal supply module
The cables set out in Tab. 13 have been modified for use in the following potentially explosive
atmospheres:
‒ ATEX/ IECEx Zone 1 and Zone 21
‒ ATEX/ IECEx Zone 2 and Zone 22
‒ Class I, II, III DIV 1
‒ Class I, II, III DIV 2
