4 Product description
ex
34 / 106
Subject to technical modifications
Revision A / 04/2019
4.6 Construction of the universal supply module
Non-approved accessories!
Loss of function and risk of explosion.
Only use universal supply modules that have been specified for the relevant configuration
The approved accessories are shown in the system overview (see system overview, Chapter 15.2).
The model is clearly indicated on the type label.

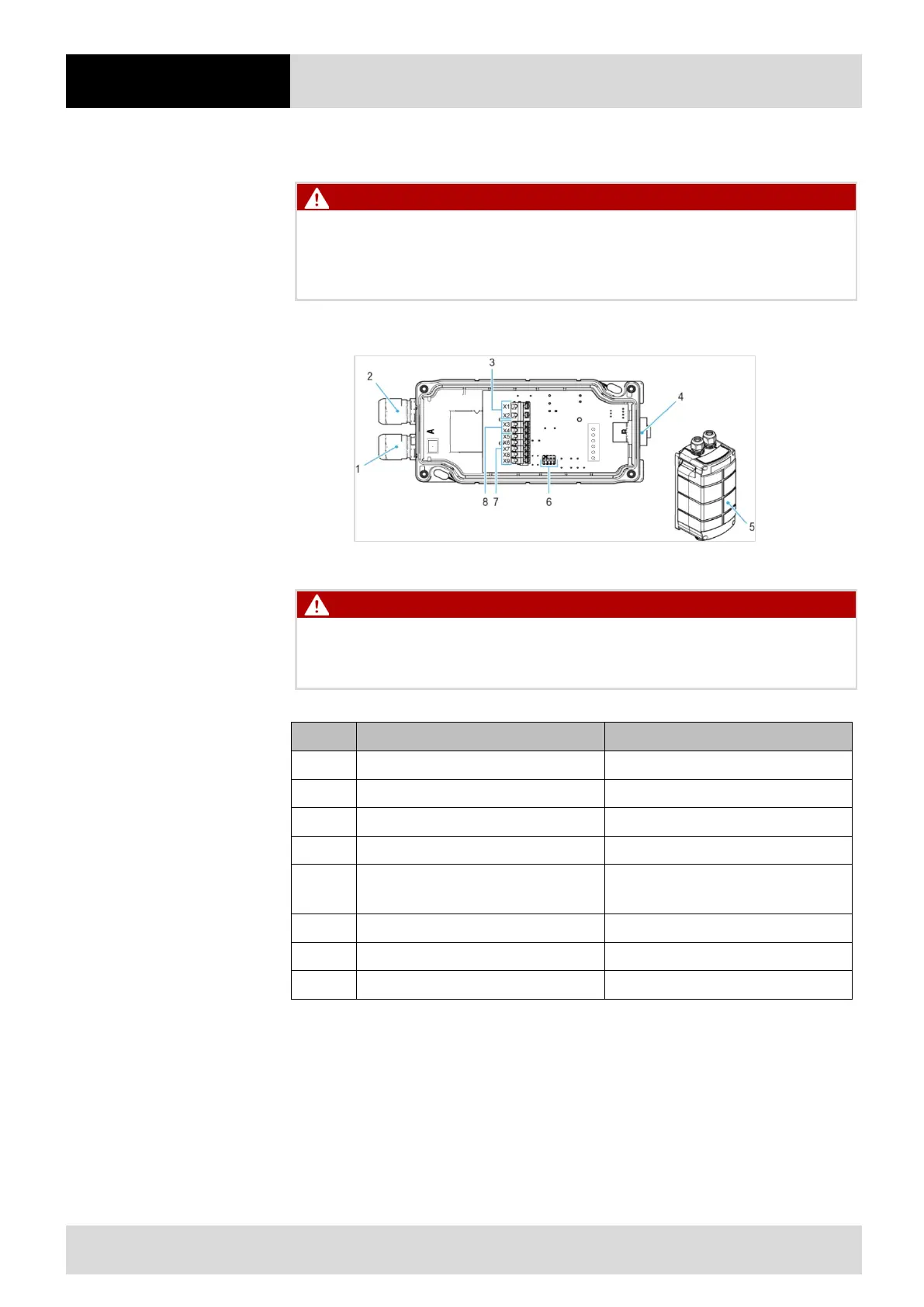

Figure 13 Construction of the universal supply module
Do not open under voltage!
Do not open the device in hazardous areas during operation!
Feeding data cable to terminals
Feeding power cord to terminals
AC
4
7-pole round plug * Connecting corded hand-held scanner
Protecting the terminal connection
chamber
Selecting the interface used
8
Terminals X3 to X4 Connecting the 24 V
DC
power supply
Table 30 Construction universal supply module
*Is not needed with the Bluetooth version
