7 Connection /
commissioning (qualified
personnel)
Subject to technical modifications
Revision A / 04/2019
79 / 106
USM with RS485 Interface
USM-Bluetooth with RS485
PC/Host with serial
RS485-interface
Max cable length is
1200m
USM-Bluetooth
USM-corded with RS485
PC/Host with serial
RS485-interface
Max cable length is
1200m
USM-corded

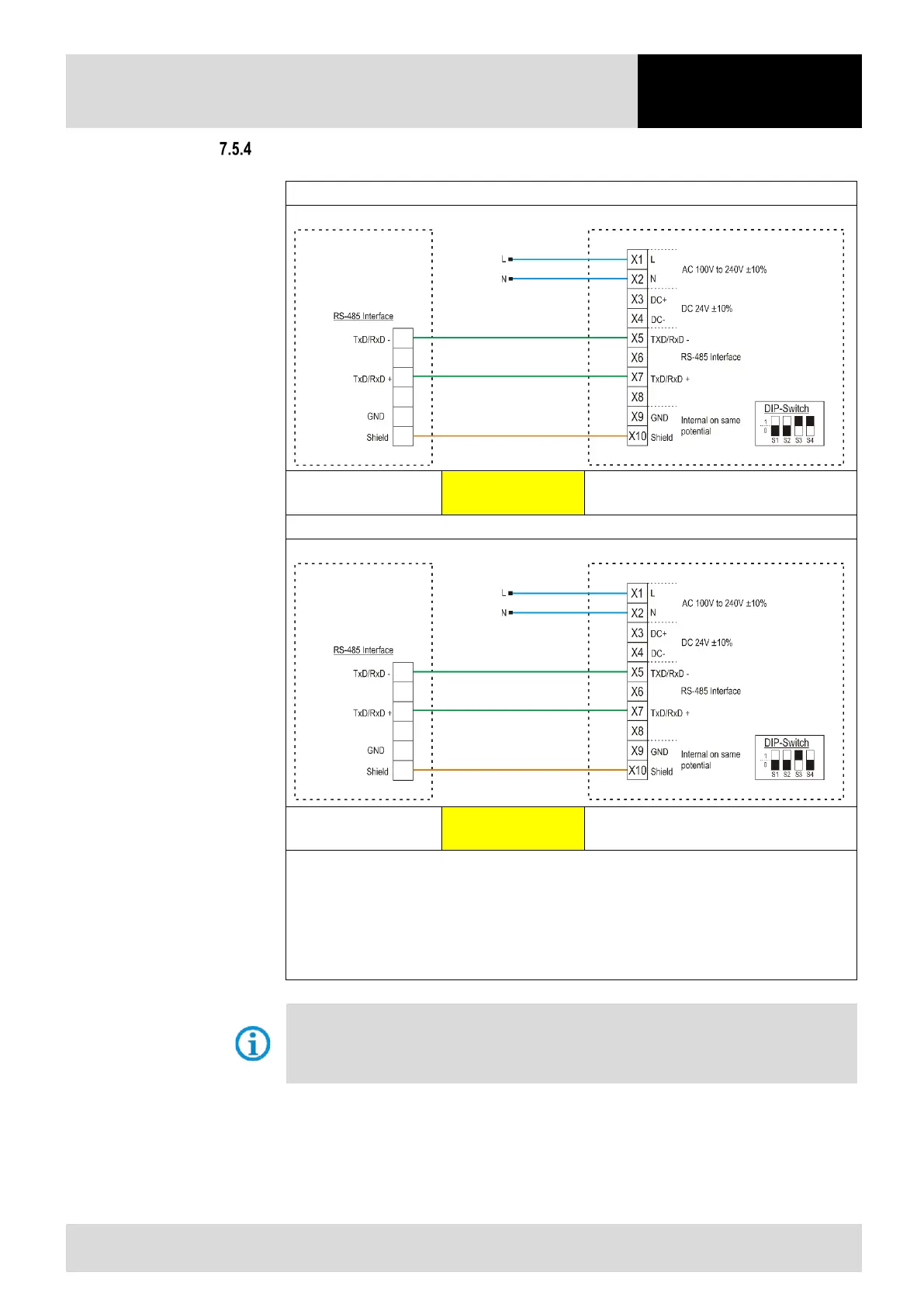

Wiring:
Blue wire  necessary (example connection to AC)
Green line  necessary
Orange line  connect shield to equipotential bonding
For data lines (green and orange) we strongly recommend to use shielded (e.g. CAT5, similar or
higher quality) cables.
Dip-Switch:
S1 to S4 = Setup for interface
S4 = 0 = Corded Version
S4 = 1 = Bluetooth Version
